Porsche 968 Outer Door Handle Teile

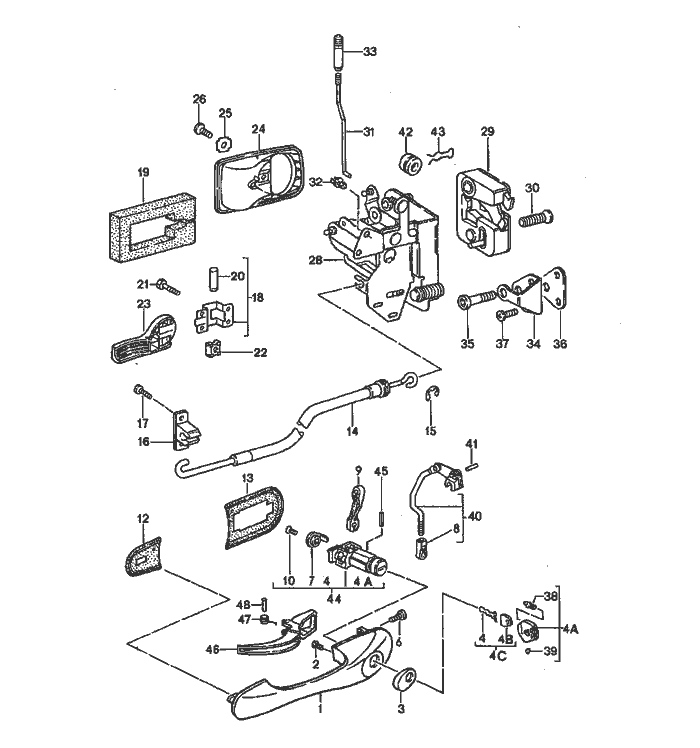

Outer Door Handle


Pos__Part_Number__DescriptionRemarkQty.Model
  outer door handle
  door lock
1 944 537 661 04outer door handle Left 1
 G2Xprime coated
(1) 944 537 662 04outer door handle Right 1
 G2Xprime coated
2 999 218 079 02oval-head Schraube   2
  M3X5
  micro-self-locking
3 944 537 611 00rosette Left 1
(3) 944 537 612 00rosette Right 1
4 944 538 331 00blank key   2
4A 944 538 041 00key lamp   1
4B 944 538 431 00key cap   1
4C 944 538 933 00key   1
  with stipulated lock number
  state lock number
  Information available
6 900 067 328 02pan-head Schraube   2
  M 6 X 10
7 477 837 497driver   2
8 999 168 004 40ball socket   2
9 477 837 505 Aconnecting piece Left 1
(9) 477 837 506 Aconnecting piece Right 1
10 N 033 165 1countersunk-head Schraube   2
  AM 4 X 8
12 944 537 621 00desk pad Vorder Left 1
(12) 944 537 622 00desk pad Vorder Right 1
13 944 537 631 00desk pad Hinter Left 1
(13) 944 537 632 00desk pad Hinter Right 1
14 477 837 017 Abowden cable   2

Pos__Part_Number__DescriptionRemarkQty.Model
15 999 166 054 02sl-lock 3,2   2
16 477 837 115 Asupport   2
17 999 217 029 02hexagon-head bolt M 6 X 10 self-locking   4
18 944 537 029 00inner door release Left 1
(18) 944 537 030 00inner door release Right 1
19 477 831 304 Aseal   2
20 N 013 666 1rivet B 4 X 32   2
21 999 217 029 02hexagon-head bolt   8
22 477 837 521captive nut   8
23 944 537 225 00handle inner door release Left 1
(23) 944 537 226 00handle inner door release Right 1
 3DLblack
 4XCclassic grey
 6ZFcobalt blue  -93
 6WXmagenta  -93
 9ZNlight grey  -93
 3UDcashmere beige
 9JJmarine blue  -93
 2GSmidnight blue  94
 4PVchestnut brown  94
 3BEmarble grey  94
24 944 537 229 00rosette   2
 3DLblack
 4XCclassic grey

Pos__Part_Number__DescriptionRemarkQty.Model
 6ZFcobalt blue -93
 6WXmagenta -93
 9ZNlight grey -93
 3UDcashmere beige
 9JJmarine blue -93
 2GSmidnight blue 94
 4PVchestnut brown 94
 3BEmarble grey 94
26 N 014 216 1countersunk-head Schraube AM 5 X 10  2
28 928 537 053 09door lock inner part Left Hand Drive \/ Left Side1
(28) 928 537 054 10door lock inner part Left Hand Drive \/ Right Side1
29 928 537 153 03door lock outer part Left1
(29) 928 537 154 03door lock outer part Right1
30 928 537 721 02oval-head Schraube M 8 X 35  4
31 477 837 183 Alocking rod  2
(31) 477 837 183 Blocking rod  2 M 525/533
32 477 837 187clip  2
33 944 637 238 00knob  2
 01Cblack
34 928 537 133 04door lock striker  2
35 928 537 131 03lock pin  2
36 928 537 135 04desk pad  2
37 900 249 022 02countersunk-head Schraube M 8 X 20  4

Pos__Part_Number__DescriptionRemarkQty.Model
38 928 537 630 02bulb   1
  E 5,5
39 944 538 443 00crest   1
40 944 537 261 02reverse lever Left 1
(40) 944 537 262 02reverse lever Right 1
(41) 944 537 637 00pin   2
42 928 537 613 02weight   2
43 928 537 615 02spring clamp   2
44 944 537 937 00lock cylinder Left 1
  w/o stipulated lock number
  when required order also:
  microswitch   1
  911.613.133.00
(44) 944 537 937 01lock cylinder Left 1
  with stipulated lock number
  when required order also:
  microswitch   1
  911.613.133.00
(44) 944 537 938 00lock cylinder Right 1
  w/o stipulated lock number
  when required order also:
  microswitch   1
  911.613.133.00
(44) 944 537 938 01lock cylinder Right 1
  with stipulated lock number
  when required order also:
  microswitch   1
  911.613.133.00
- grease   1
  for lock cylinder
  see group
  0/05/00
45 900 309 041 00roll pin   2
  2X12
46 944 537 671 00actuating lever Left 1
(46) 944 537 672 00actuating lever Right 1
47 944 537 655 00tensioning spring   2

Pos__Part_Number__DescriptionRemarkQty.Model
48 944 537 243 00clinch pin   2
