Porsche 968 Central Locking System Teile

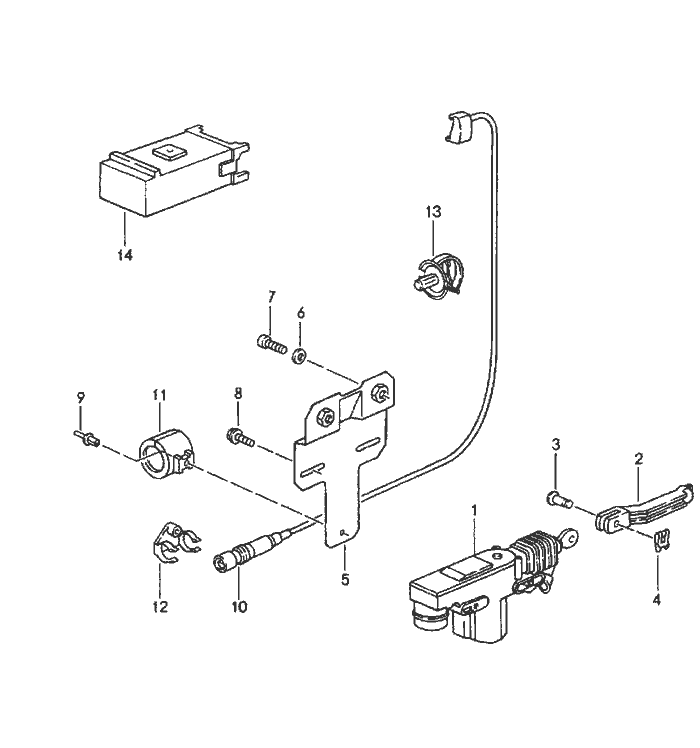

Central Locking System


Pos__Part_Number__DescriptionRemarkQty.Model
  central locking system
1 928 624 211 00transmission element  2
2 944 537 511 00operating rod  2
3 N 100 438 01bolt  2
4 N 012 644 1lock  2
5 944 537 151 00mounting plate  2
6 N 011 524 7washer A 6,4  4
7 N 014 765 2pan-head Schraube M 6 X 10  4
8 999 919 035 02hexagon-head bolt  4
9 N 038 504 1expansion rivet 15 X 7,5  2
10 964 613 134 00microswitch  2
11 944 612 450 01support  2
12 321 971 898 Bsupport  2
13 944 612 555 00cable holder  14
14  alarm control unit see group 9/09/00  1
