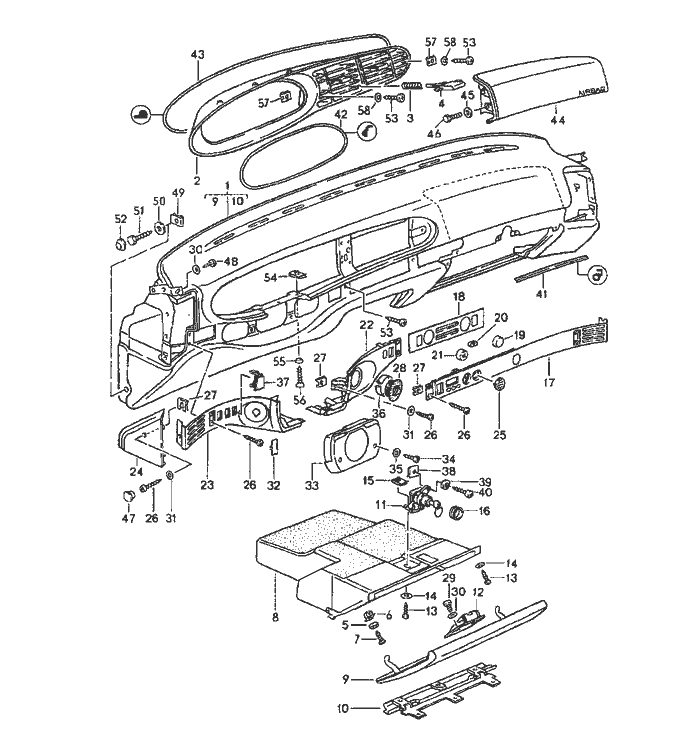

Porsche 968 Dashboard Trim Teile



Pos	__Part_Number__	Description	Remark	Qty.	Model
		dashboard trim
1	944 552 085 00	dashboard trim	/LL 92	1	M 564
	NW8	black
	APN	classic grey	-93
	CCQ	black/light grey	-93
	ARN	cobalt blue
	CCN	magenta	-93
	CCS	classic grey/light grey	-93
	CCU	cobalt blue/light grey	-93
	CCY	black/cashmere beige
	CCW	magenta/light grey	-93
	US1	marine blue	-93
1	944 552 085 02	dashboard trim	Left Hand Drive	1	M 564
	APN	classic grey
	ARN	cobalt blue	-93
	CCN	magenta	-93
	NW8	black	93
	CCQ	black/light grey	-93
	CCS	classic grey/light grey	-93
	CCW	magenta/light grey	-93
	DDF	black/marble grey	94
	CCY	black/cashmere beige
	CCU	cobalt blue/light grey	-93
	DBF	midnight blue	94-
	DCF	chestnut brown	94-
	DBH	midnight blue/marble grey	94-
	US1	marine blue	-93



Pos	__Part_Number__	Description	Remark	Qty.	Model
(1)	944 552 085 25	dashboard trim airbag	Left Hand Drive	1
	NW8	black
	APN	classic grey
	ARN	cobalt blue	-93
	CCN	magenta	-93
	CCQ	black/light grey	-93
	CCS	classic grey/light grey	-93
	CCU	cobalt blue/light grey	-93
	CCW	magenta/light grey	-93
	DBF	midnight blue	94-
	DCF	chestnut brown	94-
	DDF	black/marble grey	94-
	DBH	midnight blue/marble grey	94-
	CCY	black/cashmere beige
	US1	marine blue	-93
1	944 552 085 50	dashboard trim leather	/LL 92	1	M 564
	ATP	black
	APP	classic grey
	ARP	cobalt blue	-93
	CCP	magenta	-93
	CCR	black/light grey	-93
	CCT	classic grey/light grey	-93
	CCV	cobalt blue/light grey	-93
	CCX	magenta/light grey	-93
	CCZ	black/cashmere beige
	CFA	marine blue	-93



Pos	__Part_Number__	Description	Remark	Qty.	Model
	CFB	matador red		-93
	CFC	carrara grey		-93
	CFD	sherwood green		-93
1	944 552 085 03	dashboard trim leather	Left Hand Drive	93	1	M 564
	ATP	black
	APP	classic grey
	ARP	cobalt blue		-93
	CCP	magenta		-93
	CCR	black/light grey		-93
	CCT	classic grey/light grey		-93
	CCV	cobalt blue/light grey		-93
	CCX	magenta/light grey		-93
	DBG	midnight blue		94-
	DCG	chestnut brown		94-
	DDG	black/marble grey		94-
	DBJ	midnight blue/marble grey		94-
	CCZ	black/cashmere beige
	CFA	marine blue		-93
	CFB	matador red		-93
	CFC	carrara grey		-93
	CFD	sherwood green		-93
	DER	black/provence blue		94-
	DES	midnight bl./provence blue		94-
	DEU	cedar green		94-
	DEV	flamenco red		94



Pos	__Part_Number__	Description	Remark	Qty.	Model
(1)	944 552 085 26	dashboard trim airbag leather	Left Hand Drive		1
	ATP	black
	APP	classic grey
	ARP	cobalt blue	-93
	CCP	magenta	-93
	CCR	black/light grey	-93
	CCT	classic grey/light grey	-93
	CCV	cobalt blue/light grey	-93
	CCX	magenta/light grey	-93
	DBG	midnight blue	94-
	DCG	chestnut brown	94-
	DDG	black/marble grey	94-
	DBJ	midnight blue/marble grey	94-
	CCZ	black/cashmere beige
	CFA	marine blue	-93
	CFB	matador red	-93
	CFC	carrara grey	-93
	CFD	sherwood green	-93
	DER	black/provence blue	94-
	DES	midnight bl./provence blue	94-
	DEU	cedar green	94-
	DEV	flamenco red	94
2	944 552 023 00	dashboard trim	Left Hand Drive	1
	1DB	black
(2)	A 944 552 023 01	dashboard trim airbag	Left Hand Drive	1



Pos	__Part_Number__	Description	Remark	Qty.	Model
	1DB	black
3	944 572 421 00	spring		1
4	944 572 419 00	knob		1
5	944 552 259 00	plug		2
6	999 591 679 40	special nut		2
7	N 902 662 01	combination tapping Schraube B 3,5 X 16		2
(8)	944 552 049 01	glove compartment	Left Hand Drive	1	M 573/564
(8)	944 552 049 20	glove compartment airbag		1
(8)	944 552 049 21	glove compartment airbag		1	M 573
9	944 552 123 00	glove compartment cover	/LL 92	1	M 564
	05T	black
	B10	classic grey
	G12	cobalt blue	-93
	M24	magenta	-93
	B44	light grey	-93
	R04	cashmere beige
	3KY	marine blue	-93
9	944 552 123 02	glove compartment cover	/LL 93	1	M 564
	05T	black
	B10	classic grey
	G12	cobalt blue	-93
	M24	magenta	-93
	B44	light grey	-93
	1HS	midnight blue	94
	4PL	chestnut brown	94



Pos	__Part_Number__	Description	Remark	Qty.	Model
	9EB	marble grey	94-
	R04	cashmere beige
	3KY	marine blue	-93
(9)	A 944 552 123 21	glove compartment cover airbag	/LL -93	1
	05T	black
	B10	classic grey
	G12	cobalt blue	-93
	M24	magenta	-93
	B44	light grey	-93
	R04	cashmere beige
	3KY	marine blue	-93
(9)	944 552 123 23	glove compartment cover airbag		1
	05T	black
	B10	classic grey
	G12	cobalt blue	-93
	M24	magenta	-93
	B44	light grey	-93
	1HS	midnight blue	94
	4PL	chestnut brown	94
	9EB	marble grey	94-
	R04	cashmere beige
	3KY	marine blue	-93
9	944 552 123 50	glove compartment cover leather	/LL 92	1	M 981/564
	8YR	black
	6XL	classic grey



Pos	__Part_Number__	Description	Remark	Qty.	Model
	9YL	cobalt blue	-93
	6YL	magenta	-93
	8ZL	light grey	-93
	4YU	cashmere beige
	H05	marine blue	-93
	M05	matador red	-93
	D35	carrara grey	-93
	J25	sherwood green	-93
9	944 552 123 55	glove compartment cover leather	/LL 93	1	M 981/564
	8YR	black
	6XL	classic grey
	9YL	cobalt blue	-93
	6YL	magenta	-93
	8ZL	light grey	-93
	H24	midnight blue	94-
	T15	chestnut brown	94
	3QN	marble grey	94
	4YU	cashmere beige
	H05	marine blue	-93
	M05	matador red	-93
	D35	carrara grey	-93
	J25	sherwood green	-93
	G43	provence blue	94-
	K03	cedar green	94
	8SE	flamenco red	94



Pos	__Part_Number__	Description	Remark	Qty.	Model
(9)	A 944 552 123 52	glove compartment cover airbag leather	/LL -93	1	M 981
	8YR	black
	6XL	classic grey
	9YL	cobalt blue	-93
	6YL	magenta	-93
	8ZL	light grey	-93
	4YU	cashmere beige
	H05	marine blue	-93
	M05	matador red	-93
	D35	carrara grey	-93
	J25	sherwood green	-93
(9)	944 552 123 54	glove compartment cover airbag leather	Left Hand Drive	1	M 981
	8YR	black
	6XL	classic grey
	9YL	cobalt blue	-93
	6YL	magenta	-93
	8ZL	light grey	-93
	H24	midnight blue	94-
	T15	chestnut brown	94
	3QN	marble grey	94
	4YU	cashmere beige
	H05	marine blue	-93
	M05	matador red	-93
	D35	carrara grey	-93
	J25	sherwood green	-93



Pos	__Part_Number__	Description	Remark	Qty.	Model
	G43	provence blue	94-
	K03	cedar green	94
	8SE	flamenco red	94
10	928 552 055 03	hinge		1
(11)	944 538 951 02	twist lock for glove compartment w/o stipulated lock number		1
(11)	944 538 951 03	twist lock for glove compartment with stipulated lock number		1
(12)	944 538 061 21	closing element twist lock		1
13	N 013 958 14	tapping Schraube 3,5 X 13		1
14	N 011 663 4	washer B 3,7		1
15	999 591 349 02	speed nut B 3,5		1
16	944 538 529 00	sealing ring glove compartment lock		1
(16)	944 552 585 00	retaining ring		1
17	944 552 436 00	strip for switches	Left Hand Drive \/ Right Side	1
	1DB	black
18		cover
		see group 8/13/30
19		knob blower switch		1
		see group 8/13/30
20		knob slide		1
		see group 8/13/30



Pos	__Part_Number__	Description	Remark	Qty.	Model
21		knob		1
		thermostat
		see group
		8/13/30
22	944 552 431 00	strip for switches	Left Hand Drive	1
	1DB	black
23	944 552 429 00	strip for switches	Left Hand Drive \/ Left Side	1
	1DB	black
24	944 552 083 00	trim cover	Left	1
	1DB	black
(24)	944 552 084 00	trim cover	Right	1
	1DB	black
25	944 552 451 00	rosette		1
		interior sensor
26	N 013 959 3	tapping Schraube		X
		3,5 X 16
27	N 015 438 1	speed nut		X
		B 4,8 X 16
28	944 552 447 00	cover		1
		ignition starter lock
29	N 014 128 13	oval-head Schraube		2
		M 5 X 8
30	N 011 665 10	washer		4
		B 5,3
31	N 011 554 6	washer		X
		B 3,7 DIN 433
32	944 552 449 00	cover	Left	1
		strip for switches
	1DB	black
(32)	944 552 450 00	cover	Right	1
		strip for switches
	1DB	black
33	944 552 073 00	lining		1



Pos	__Part_Number__	Description	Remark	Qty.	Model
	1DB	black
(33)	944 552 073 01	lining			1	M 454
	1DB	black
(33)	944 552 273 20	lining			1
		airbag
	1DB	black
(33)	944 552 373 20	boot			1
		airbag
	01C	black
34	999 073 047 02	tapping Schraube		94	2
34	999 073 047 02	tapping Schraube		95	2
		B 3,5 X 9,5
35	N 011 554 6	washer			2
		3,7
36	944 552 452 00	clip			1
37	944 613 257 00	cover	Left Hand Drive		1
(37)	944 613 256 00	cover			1	CABRIO
		rear window heating
	1DB	black
38	999 591 763 02	speed nut			3
		B 4,8
		push-button lock
(38)	999 591 777 02	speed nut			3
		B 4,8
		twist lock
39	N 011 556 2	washer			3
		5,3
40	N 013 975 4	tapping Schraube			3
		B 4,8 X 19
		push-button lock
(40)	900 143 046 02	tapping Schraube			3
		B 4,8 X 16
		twist lock
41	944 552 035 00	gasket			1



Pos	__Part_Number__	Description	Remark	Qty.	Model
42	999 911 342 40	piping dashboard trim inner		1
43	999 911 320 40	piping dashboard trim outer		1
44	944 552 385 00	lid airbag		1
	05T	black
	9WH	classic grey
	7YG	cobalt blue	-93
	9YF	magenta	-93
	1KX	marine blue	-93
	3HP	midnight blue	94
	6PN	chestnut brown	94
45	N 011 666 7	washer B 6,4		4	M 562
46	999 217 020 02	hexagon-head bolt M 6 X 10 micro-self-locking		4	M 562
47	944 552 767 00	cap		2
	01C	black
48	N 013 968 7	tapping Schraube B 4,8 X 13		2
49	N 015 449 1	speed nut B 6,3		2
50	999 025 167 07	washer B 7,4		2
51	900 187 123 07	tapping Schraube B 6,3 X 22		2
52	928 555 383 02	cap		2
	70B	black



Pos	__Part_Number__	Description	Remark	Qty.	Model
53	N 013 959 3	tapping Schraube 3,5 X 16		10
54	999 591 733 07	speed nut 3,5		2
55	N 100 401 02	cone washer B 4,2		2
56	900 145 070 07	tapping Schraube 3,5 X 19		2
57	N 015 438 1	speed nut 3,5		3
58	N 011 554 6	washer 3,7		3
