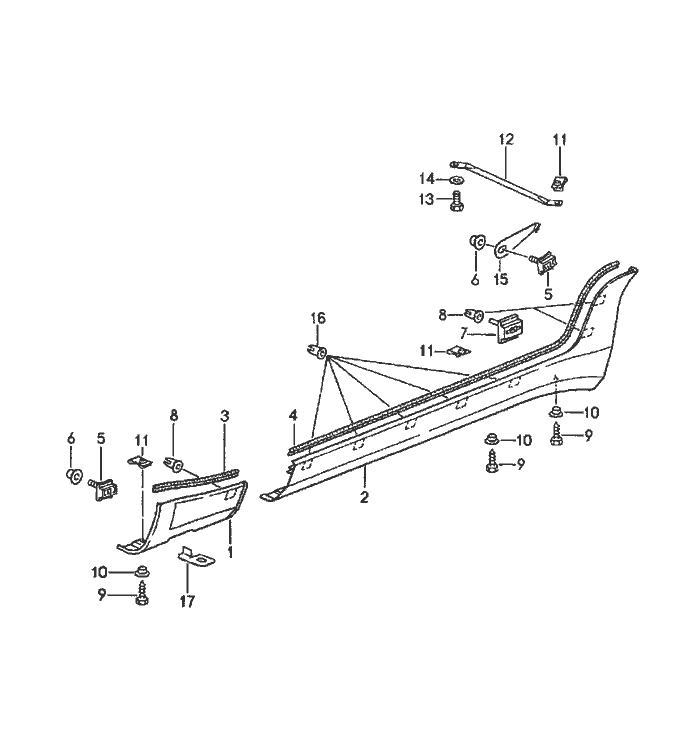

Porsche 968 Sill Cover Teile

Sill Cover


Pos__Part_Number__DescriptionRemarkQty.Model
  sill cover
1 944 559 171 00sill cover Vorder Left 1
(1) 944 559 172 00sill cover Vorder Right 1
2 944 559 173 00sill cover Hinter Left 1
(2) 944 559 174 00sill cover Hinter Right 1
3 944 559 271 00cover strip Vorder Left 1
 01Cblack
(3) 944 559 272 00cover strip Vorder Right 1
 01Cblack
4 944 559 273 00cover strip Hinter Left 1
 01Cblack
(4) 944 559 274 00cover strip Hinter Right 1
 01Cblack
5 999 591 990 00support   6
  T5
6 999 049 008 40plastic nut   4
  T5
7 999 591 991 40clip   16
8 999 702 160 40grommet   6
9 900 187 015 02tapping Schraube   14
  B 6,3 X 16
10 928 559 313 02spacer sleeve   14
11 999 591 486 02speed nut   14
  B 6,3
12 944 559 501 00bracket   2
13 900 075 017 02hexagon-head bolt   2
  M 6 X 25
14 N 011 666 12washer   2
  B 6,4

Pos__Part_Number__DescriptionRemarkQty.Model
-900 377 010 09hexagon nut   2
  M 6
15 944 559 775 00retainer spring Left 1
(15) 944 559 776 00retainer spring Right 1
16 999 702 202 50grommet   10
17 944 559 771 00clamping piece   2
