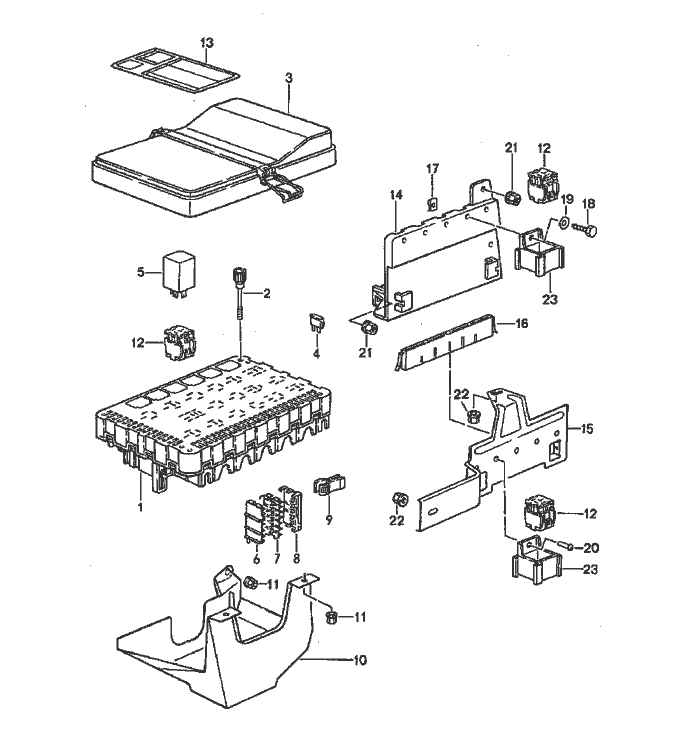

Porsche 968 Central Elektrikal System 1 + 2 Teile

Central Elektrikal System 1 2


Pos__Part_Number__DescriptionRemarkQty.Model
  central electrical system 1 + 2
  central electrical system 1
1 944 610 110 00mounting plate  1
2 944 610 611 00Schraube  2
3 944 610 017 02lid  1
  fuse
4 999 607 005 00fuse 7,5 A  X
4 999 607 007 00fuse 15 A  X
4 999 607 009 00fuse 25 A  X
4 999 607 010 00fuse 30 A  X
5  relay
G1 944 615 119 00relay for blower  1
G2 141 951 253 Brelay for KL 15  1
G3 928 615 203 00relay for rear window heating  1
G4 111 953 227 Dflasher relay  1
G5 993 615 227 00relay for -dme fuel pump  1
G6 944 610 183 11adapter for cars with fog headlamp  1

Pos__Part_Number__DescriptionRemarkQty.Model
G7 944 615 116 00relay for power window  1
G9 993 615 101 00switch unit  1
G10 944 615 104 03relay for motor fan  1
G11 141 951 253 Brelay for fog headlamp rear fog light  1
G13 141 951 253 Brelay for fanfare  1
G14 191 937 503relay for KL.X  1
G15 928 618 111 00relay for headlight washer system  1
G16 964 618 220 00control unit frequency converter  1
G17 944 618 205 00control unit  1
G18 -for electric motor pop-up headlight  .
G19 964 615 215 00relay for air conditioner  1
G20 141 951 253 Brelay for  1 TIPTRONIC
  starter
G21 944 615 117 02relay for lifting roof  1
G21 941 615 101 11relay for convertible top electric  1 CABRIO

Pos__Part_Number__DescriptionRemarkQty.Model
G22 928 615 124 01relay   1
  for
  -ABS
6 928 612 331 00initial housing   X
  black
7 928 612 332 00module housing   X
8 928 612 335 25coding element   X
9 443 941 802tool   1
10 944 610 219 02cover   1
11 999 591 839 40hexagon nut   3
12 928 610 511 00relay carrier   X
  assignment sticker
13 944 610 231 06assignment sticker  92 1
  english
13 968 610 231 00assignment sticker  931
  english
13 944 610 241 06assignment sticker  92 1
  french
13 968 610 241 00assignment sticker  931
  french
  central electrical system
  2
14 944 610 135 00bracket Left Hand Drive 1
16 443 937 501 Afuse holder   1
17 999 591 925 02speed nut Left Hand Drive 5
  B 4,2
18 900 187 013 02tapping Schraube Left Hand Drive 5
  BZ 4,2 X 13
19 900 151 028 02washer Left Hand Drive 5
  B 4,3
21 900 377 010 09hexagon nut Left Hand Drive 2
  M 6
23 928 615 511 00relay holder   X

Pos__Part_Number__DescriptionRemarkQty.Model
--relay
G23 964 618 145 00control unit selector lever lock  1 TIPTRONIC
G25 928 618 102 03relay warning time relay  1
G26 944 615 123 00relay for light  1 (CDN)
