Porsche 968 Windscreen Wiper System Teile

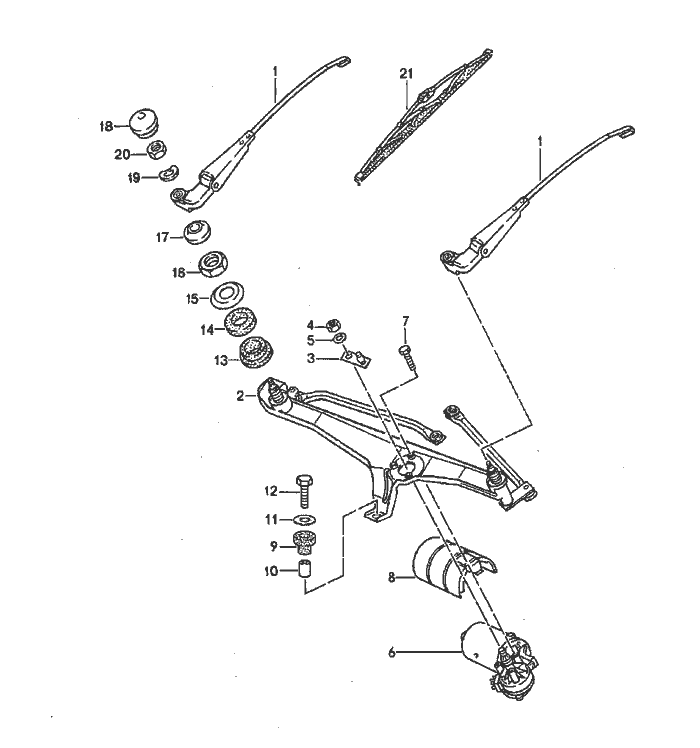

Windscreen Wiper System


Pos__Part_Number__DescriptionRemarkQty.Model
  windscreen wiper system
1 944 628 028 12wiper arm Left Hand Drive 2
2 944 628 920 00frame Left Hand Drive 1
3 944 628 330 00crank   1
4 900 076 025 02hexagon nut   1
  M 8
5 N 012 229 3spring washer   1
  A 8
6 944 628 303 01wiper motor   1
7 999 217 164 02hexagon-head bolt   3
  M 6 X 15
8 944 628 101 01cover   1
 01Csatin black
8 944 628 101 02cover Left Hand Drive941
 01Csatin black
9 944 628 126 00grommet   1
10 944 628 127 00bush   1
11 N 902 707 01washer   1
  B 6,4
12 900 075 341 02combination Schraube   1
  M 6 X 20
13 944 628 129 00rubber bush   2
14 944 628 128 01rubber bush   2
15 944 628 125 01flange washer   2
16 999 034 013 07hexagon nut   2
  M 18 X 1,5
17 944 628 339 00bush   1
18 944 628 305 01cap   2
19 803 955 437washer   2

Pos__Part_Number__DescriptionRemarkQty.Model
20 N 011 151 3hexagon nut  2
  M 8
21 928 628 901 01wiper blade  2
