Porsche 968 Kopflight Washer System Teile

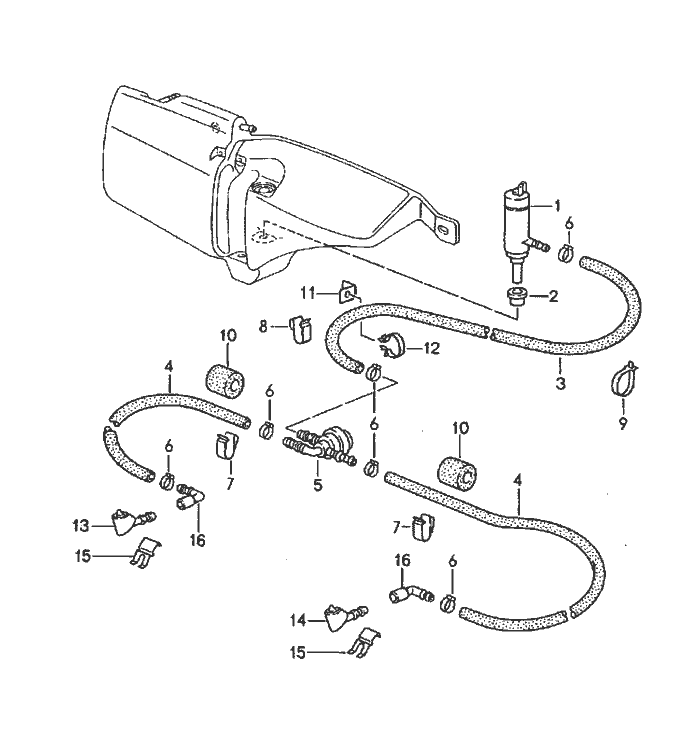

Kopflight Washer System


Pos__Part_Number__DescriptionRemarkQty.Model
  headlight washer system    M 288
1 357 955 681pump   1
2 928 628 193 00gasket   1
-999 181 806 40hose   *
  10 X 3
3 -1800 MM   1
4 -550 MM   2
5 281 955 187valve   1
6 999 512 489 00hose clamp   8
7 999 651 259 02hose holder   2
8 999 651 254 02hose holder   3
9 999 513 041 40tie-wrap   2
10 477 971 951protective tube   2
11 477 971 881 Bretaining bracket   1
12 171 971 847 Aclip   1
13 944 628 073 00nozzle Left 1
 01C
14 944 628 074 00nozzle Right 1
 01C
15 944 628 273 00clamp   2
16 944 628 274 00angled pipe   2
