Porsche 968 Instrument Cluster Teile

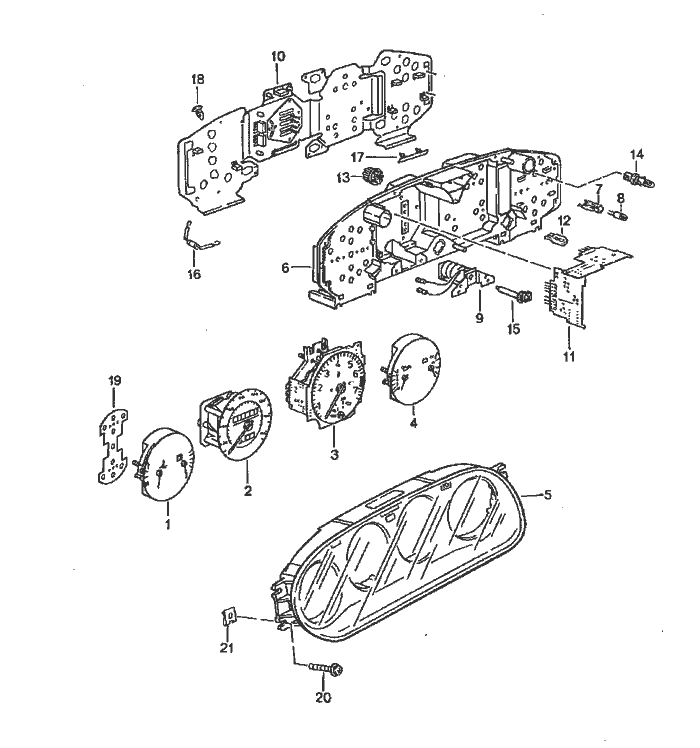

Instrument Cluster


Pos__Part_Number__DescriptionRemarkQty.Model
  instrument cluster
1 944 641 953 07instrument insert  1
  left
  -temperat. -fuel gauge
  english
2 944 641 951 26speedometer  1 (CDN)
  300 KM/H
2 944 641 951 29speedometer  1 (USA)
  180 MPH + 300 KM/H
2 944 641 951 22speedometer  1 (CDN)
  300 KM/H   TIPTRONIC
2 944 641 951 25speedometer  1 (USA)
  180 MPH + 300 KM/H   TIPTRONIC
3 944 641 952 14tachometer  1
3 944 641 952 13tachometer  1 TIPTRONIC
4 944 641 954 07instrument insert  1
  right
  -volt -oil
  english
5 944 641 941 01covering frame  1
6 928 641 968 01mounting plate  1
7 928 641 982 00bulb socket  X
8 928 641 983 00bulb  X
9 928 641 921 00solenoid coil  1
10 944 641 961 02printed circuit board  1
11 944 641 959 02printed circuit board  1
12 900 631 019 90glass-base bulb  3
  12 V -3 W
13 928 641 927 00bulb socket  3
(13) 964 641 920 00glass-base bulb  1
  indicator light
  airbag
14 999 631 301 90bulb  X

Pos__Part_Number__DescriptionRemarkQty.Model
15 928 641 960 00zero adjustment shaft  1
16 928 641 981 01resistor  1
17 928 641 985 00clip  3
18 928 641 984 00clip  4
19 928 641 986 00gasket  1
20 900 143 151 02combination tapping Schraube  4
  B 4,2 X 16
21 N 015 429 2speed nut  4
  B 4,2
