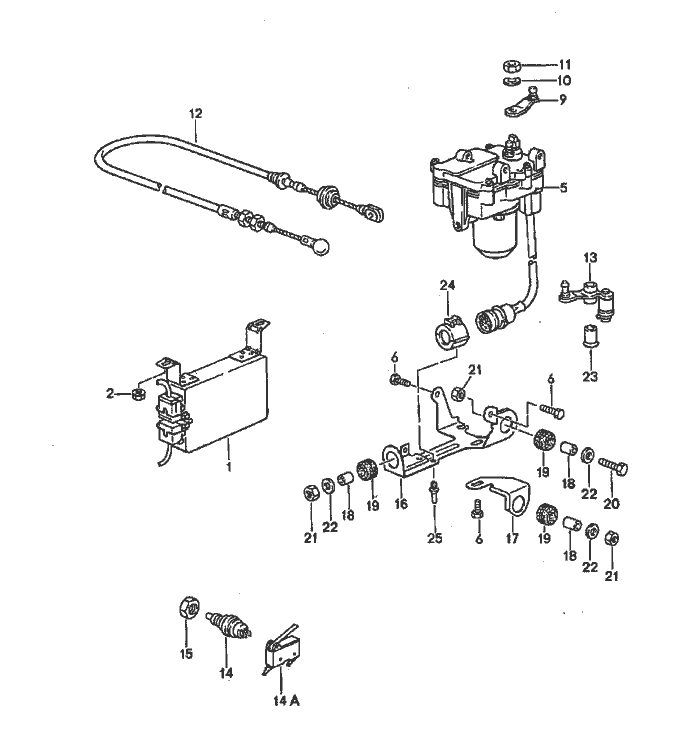

Porsche 968 Cruise Control Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		cruise control				M 454
1	944 617 132 00	control unit			1
2	900 377 010 09	hexagon nut			2
		M 6
5	944 617 121 00	drive link			1
6	999 072 005 09	hexagon-head bolt			3
		M 6 X 12
9	944 423 047 00	lever			1
		for
		electric motor
10	N 012 229 3	spring washer			1
		A 8
11	N 011 018 4	hexagon nut			1
		M 8 X 1
12	944 423 025 05	cable	Left Hand Drive		1
13	944 423 055 00	reverse lever	Left Hand Drive		1
14	944 613 413 00	switch	Left Hand Drive		1
		for
		clutch pedal
15	481 945 529	nut			1
		M 12 X 1
16	944 617 125 01	support			1
17	944 617 123 01	support			1
18	999 531 014 02	bush			3
19	999 702 133 40	rubber mounting			3
20	900 075 017 02	hexagon-head bolt			1
		M 6 X 25
21	900 076 010 02	hexagon nut			3
		M 6
22	N 011 666 7	washer			4
		B 6,1
23	999 924 001 40	bush			2
24	944 612 450 01	support			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
25	999 591 429 40	expansion rivet		2
-	171 721 570 A	locking plate		1
		for
		cable
