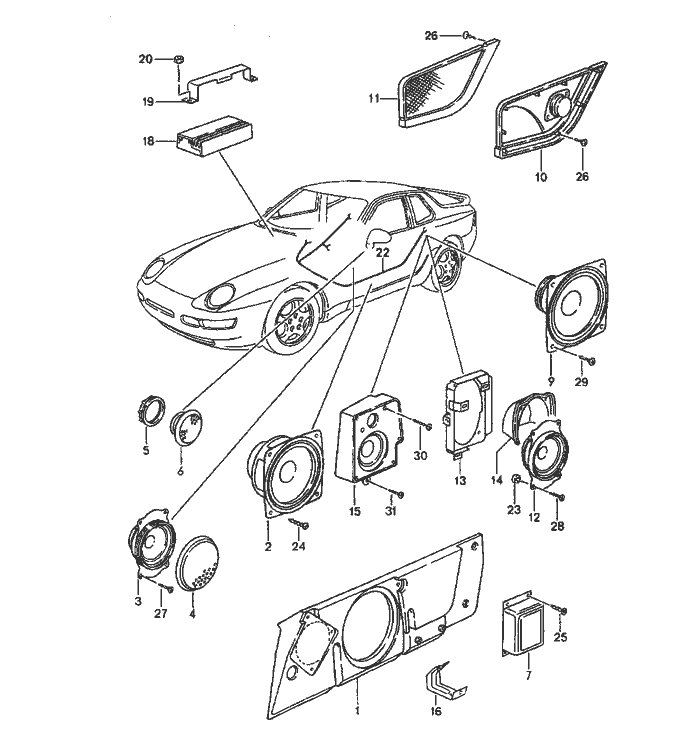

Porsche 968 Loudspeaker Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		loudspeaker		94
		sound system				M 490
		booster
		loudspeaker				968CS
		see group
		9/11/05
(1)	944 555 143 02	retaining frame	Left		1
1	944 555 144 02	retaining frame	Right		1
2	944 645 504 00	woofer			2
2	944 645 508 00	woofer			2	M 490
3	944 645 507 00	mid-range loudspeaker			2	M 490
4	944 645 577 00	loudspeaker grille			2	M 490
		mid-range loudspeaker
	1DB	black
5	944 645 503 00	retaining ring			2
6	944 645 502 00	tweeter			2
	1DB	black
6	944 645 506 00	tweeter			2	M 490
	1DB	black
7	944 645 201 00	diplexer			2	M 490
(7)	944 645 937 00	connecting cable			2
9	944 645 505 00	loudspeaker			2	COUPE
		rear
(9)	944 645 032 00	woofer			2	COUPE M 490
		rear
10	944 645 047 00	loudspeaker grille	Left		1	COUPE
		rear
	1DB	black
10	944 645 049 00	loudspeaker	Left		1	COUPE M 490
		rear
	1DB	black

Pos	__Part_Number__	Description	Remark	Qty.	Model
11	944 645 048 00	loudspeaker grille	Right		1	COUPE
		rear
	1DB	black
11	944 645 050 00	loudspeaker	Right		1	COUPE M 490
		rear
	1DB	black
12	941 645 505 10	loudspeaker			2	CABRIO
		rear
(13)	941 555 573 10	mounting	Left		1	CABRIO
		for
		loudspeaker
13	941 555 574 10	mounting	Right		1	CABRIO
		for
		loudspeaker
14	941 555 575 10	covering			2	CABRIO
		for
		loudspeaker
(15)	941 645 049 10	loudspeaker	Left		1	CABRIO M 490
		rear
15	941 645 050 10	loudspeaker	Right		1	CABRIO M 490
		rear
16	944 531 243 00	retaining bracket			4
		for
		retaining frame
18	944 645 301 00	booster			1	M 490
-	944 645 301 X	booster			1	M 490
-	999 607 101 00	fuse			1	M 490
		for
		booster
19	944 645 311 00	bracket			1	M 490
20	900 377 009 02	hexagon nut			2	M 490
22	968 612 062 00	wiring harness			1	COUPE M 490
(22)	968 612 062 01	wiring harness			1	CABRIO M 490
23	477 035 375	spacer sleeve			8	CABRIO

Pos	__Part_Number__	Description	Remark	Qty.	Model
24	900 143 031 02	oval-head sheetmetal Schraube B 4,2 X 9,5		10
25	N 013 953 2	tapping Schraube B 2,9 X 9,5		8	M 490
26	999 919 032 02	oval-head Schraube 3,5 X 10		18
27	900 143 151 02	tapping Schraube B 4,2 X 16		8	M 490
28	900 143 181 02	tapping Schraube B 4,2 X 22		8	CABRIO
29	900 143 151 02	tapping Schraube B 4,2 X 16		8	COUPE
30	900 143 153 07	tapping Schraube ST 4,2 X 32		4	CABRIO M 490
31	900 143 113 07	tapping Schraube B 4,2 X 13		2	CABRIO M 490
