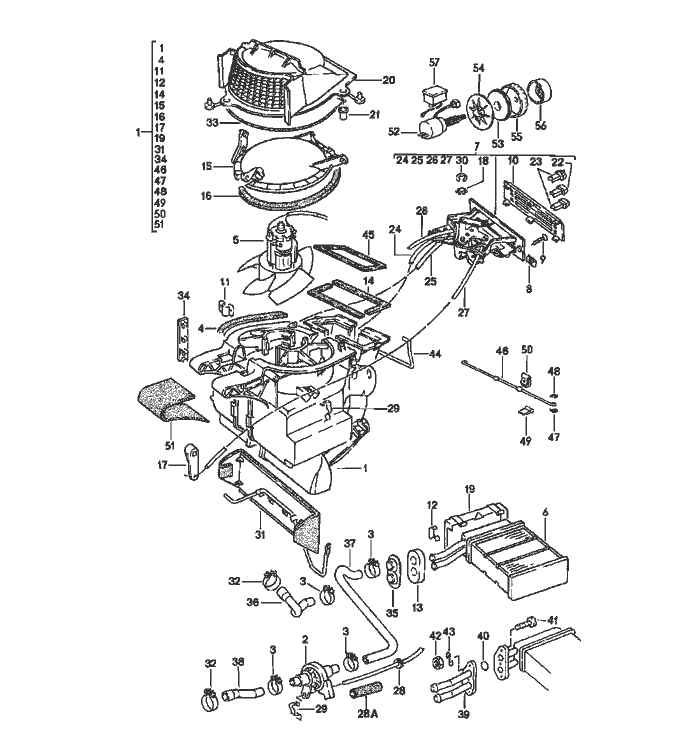

Porsche 924 Heating Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		heating	79		M 573
1	477 820 014	flap control box		1
2	477 819 017	heater valve		1
3	N 024 510 1	hose clamp		4
		LC 16-25
4	321 819 019	gasket		2
5	321 819 021	blower motor		1
6	477 819 030	heat exchanger		1
7	477 819 021 A	control switch		1
8	477 819 789	speed nut		2
		16 X 12,2
9	N 014 100 1	tapping Schraube		2
		B 4,8 X 25
10	477 819 043 C	cover		1
11	321 819 053	clamp		2
12	321 819 059	clamp		7
13	477 819 065	damping piece		1
14	321 819 089	gasket		2
15	321 819 107	flap		1
16	321 819 109	gasket		1
17	321 819 123	lever		1
		for flap
18	477 819 139	cup spring		2
19	477 819 347	lid		1
20	477 819 245	cover		1
		flap
21	477 819 253	grommet		3
22	477 819 319	knob		1
		centre
23	477 819 319 A	knob		2

Pos	__Part_Number__	Description	Qty.	Model
24	477 819 279	traction	1
25	477 820 275	traction	1
26	477 819 341	traction	1
27	477 819 325	traction	1
28	477 819 849	grommet	1
28A	477 819 340	hose	1
29	477 819 343	spring clamp	1
30	900 116 003 02	circlip	2
		4
31	321 819 361	control flap	1
32	999 512 272 02	hose clamp	2
		LA 25 X 40
33	000 043 172 00	sealing cord	*
34	321 819 645	bearing clip	1
35	823 819 699 A	drain bush	1
36	477 819 723	hose	1
37	477 819 725	hose	1
38	N 020 269 1	water hose	*	924
39	477 819 869	connecting flange	1
		for heat exchanger
40	021 101 173	sealing ring	2
		heat exchanger
41	N 010 296 2	hexagon-head bolt	3
		M 5 X 18
42	N 011 005 14	hexagon nut	3
		M 5
43	N 012 225 2	spring washer	3
		A 5
44	477 857 809	clamp	1
45	477 857 887 A	gasket	1

Pos	__Part_Number__	Description	Qty.
46	477 819 281	connecting rod	1
47	N 012 225 2	spring washer	2
48	900 116 003 02	circlip	2
49	477 819 343	spring clamp	1
50	477 819 285	clip	1
51	477 819 345	sealing strip	1
52	477 959 530	air-conditioning switch	1
53	477 959 526	spacer	1
54	477 959 527	fastening washer	1
55	477 959 528	adjusting wheel	1
56	477 959 529	knob	1
57	477 959 531	booster	1
-	477 820 523	water drain hose	1
