Porsche 924 Nockenwelle Teile

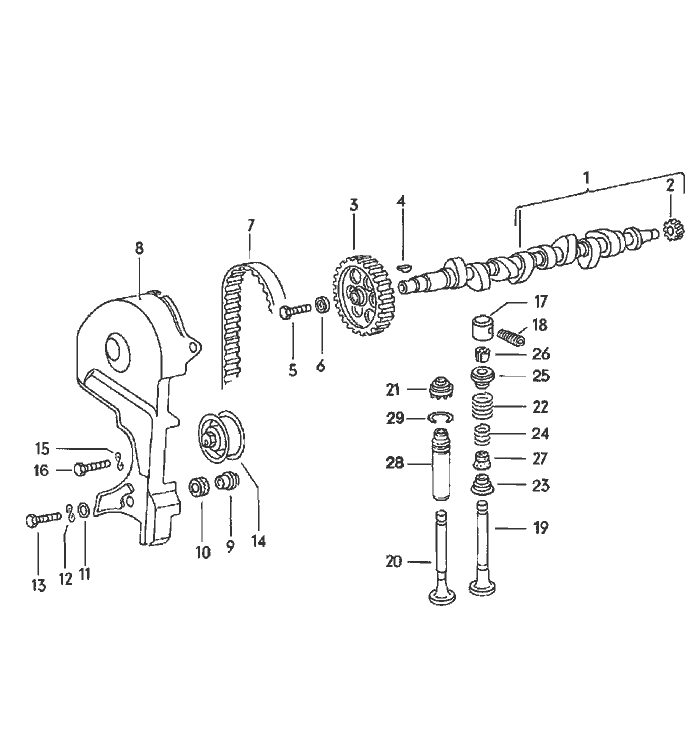

Nockenwelle


Pos__Part_Number__DescriptionRemarkQty.Model
  camshaft
  valves
1 046 109 021camshaft   1 924/TURBO
2 048 109 109drive wheel   1
  f.ignition distributor
3 049 109 111 Cgear wheel   1
4 N 012 708 2woodruff key   1
5 N 010 137 1hexagon-head bolt   1
  M 12 X 1,5 X 35
6 056 109 143washer   1
7 056 109 119 Atoothed belt   1
8 048 109 123cover for toothed belt Left Hand Drive 1 XK VC
8 931 105 051 00cover for toothed belt   1 TURBO/GT
9 056 109 135bearing sleeve   3
10 056 129 669 Bgrommet   3
11 N 011 612 3washer   3
  R 7
12 N 012 226 5spring washer   3
  A 6
13 N 010 218 6hexagon-head bolt   3
  M 6 X 25
14 026 109 243 Etensioning roller   1
15 900 028 005 02spring washer   1
  A 10
16 N 010 455 3Schraube   1
  M 10 X 55
17 046 109 311cam follower   8 924/TURBO
18 046 109 453 Cadjusting Schraube   8
18 046 109 453 Dadjusting Schraube   X
  1 noctch
18 046 109 453 Eadjusting Schraube   X
  2 notches

Pos__Part_Number__DescriptionRemarkQty.Model
18 046 109 453 Fadjusting Schraube  X
  3 notches
18 046 109 453 Gadjusting Schraube  X
  4 notches
19 046 109 601 Aintake valve  4 XJ XK VC
19 931 105 401 02intake valve  4 TURBO/GT
20 046 109 611 Aexhaust valve  4 XJ XK VC
20 931 105 406 02exhaust valve  4 TURBO/GT
21 046 109 617roto cap  4 XJ XK VC
  clockwise rotation
21 046 109 617roto cap  8 TURBO/GT
  clockwise rotation
22 046 109 623valve spring  8
  outer
23 046 109 629concave washer  4 XJ XK VC
  lower
  intake valve
24 046 109 633valve spring  8
  inner
25 059 109 641 Aconcave washer  8
  upper
26 059 109 651collet  16
27 * 046 109 675 Avalve stem seal  8
28 046 103 415 Avalve guide  4 XJ XK VC
  exhaust
  standard dimension
  14,04 MM
  without groove
28 046 103 419 Avalve guide  4 XJ XK VC
  exhaust
  1st oversize
  14,24 MM
  one groove

Pos__Part_Number__DescriptionRemarkQty.Model
28 931 104 324 04valve guide exhaust  4 TURBO/GT
  1st oversize
  14,08 MM
  one groove
28 046 103 423 Avalve guide exhaust  4 XJ XK VC
  2nd oversize
  14,44 MM
  two grooves
28 931 104 324 05valve guide exhaust  4 TURBO/GT
  2nd oversize
  14,11 MM
  two grooves
28 048 103 415 Avalve guide intake  4 XJ XK VC
  standard dimension
  14,04 MM without groove
28 048 103 419 Avalve guide intake  4 XJ XK VC
  1st oversize
  14,22 MM
  one groove
28 931 104 323 04valve guide intake  4 TURBO/GT
  1st oversize
  14,08 MM
  one groove
28 048 103 423 Avalve guide intake  4 XJ XK VC
  2nd oversize
  14,44 MM
  two grooves
28 931 104 323 05valve guide intake  4 TURBO/GT
  2nd oversize
  14,11 MM
  two grooves
29 N 012 460 1circlip  8
