Porsche 924 Motor Schmierung Teile

Motor Schmierung

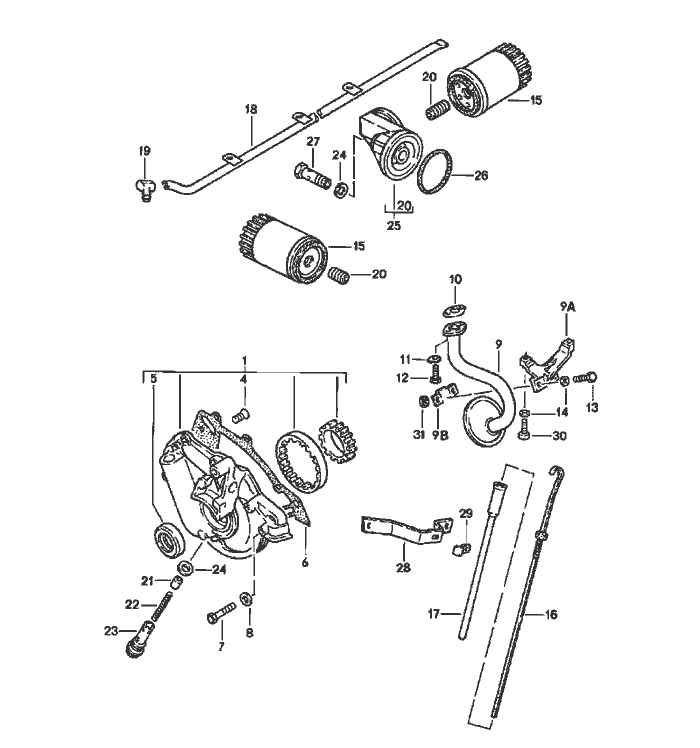

Pos__Part_Number__DescriptionRemarkQty.Model
  engine lubrication   924
1 046 115 105 Aoil pump  1
  ready for installation
4 N 033 178 1countersunk-head Schraube  6
  M 6 X 15
5 048 115 147sealing ring  1
  35 X 54 X 10
6 * 046 115 189 Agasket  1
7 N 010 339 3hexagon-head bolt  5
  M 6 X 40
7 N 010 347 3hexagon-head bolt  1
  M 6 X 35
8 900 031 011 02washer  6
  6,4
9 047 115 251 Bintake pipe  1
9A 047 115 267 Cretaining bracket  1
9B 047 115 285pipe clamp  1
10 * 048 115 257gasket  1
11 048 115 259tab washer  1
12 N 900 572 01hexagon socket head bolt  2
  M 6 X 15
13 N 010 210 7hexagon-head bolt  1
  M 6 X 10
14 N 012 226 5spring washer  1
  A 6
15 931 107 701 00oil filter  1
16 047 115 611 Aoil level dipstick  1
17 047 103 635guide tube  1
18 047 115 701oil splash tube  1
19 052 115 707adapter  1
20 059 115 721union  1

Pos__Part_Number__DescriptionRemarkQty.Model
21 056 115 411 Apiston  1
22 068 115 421spring  1
23 046 115 419housing relief valve  1
24 N 043 815 2sealing ring A 20 X 24  2
28 047 115 641support  1
29 047 115 645pipe clamp  1
30 900 067 011 02pan-head Schraube M 6 X 20  2
31 900 076 010 02hexagon nut M 6  2
