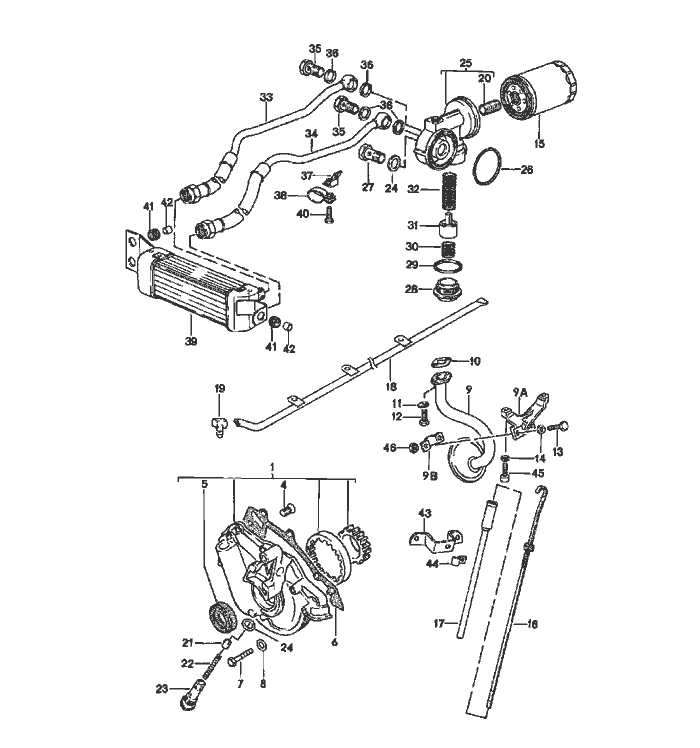

Porsche 924 Motor Schmierung Teile

Pos	__Part_Number__	Description	Qty.	Model
		engine lubrication		TURBO/GT
		engine oil cooler
1	046 115 105 A	oil pump	1
		ready for installation
4	N 033 178 1	countersunk-head Schraube	6
		M 6 X 15
5	048 115 147	sealing ring	1
		35 X 54 X 10
6	* 046 115 189 A	gasket	1
7	N 010 339 3	hexagon-head bolt	5
		M 6 X 40
7	N 010 347 3	hexagon-head bolt	1
		M 6 X 35
8	900 031 011 02	washer	6
		6,4
9	047 115 251 B	intake pipe	1
9A	047 115 267 C	retaining bracket	1
9B	047 115 285	pipe clamp	1
10	* 048 115 257	gasket	1
11	048 115 259	tab washer	1
12	N 900 572 01	hexagon socket head bolt	2
		M 6 X 15
13	N 010 210 7	hexagon-head bolt	1
		M 6 X 10
14	N 012 226 5	spring washer	1
		A 6
15	931 107 701 00	oil filter	1
16	047 115 611 A	oil level dipstick	1
17	047 103 635	guide tube	1
18	047 115 701	oil splash tube	1
19	052 115 707	adapter	1
20	059 115 721	union	1

Pos	__Part_Number__	Description	Qty.	Model
21	056 115 411 A	piston	1
22	068 115 421	spring	1
23	046 115 419	housing	1
		relief valve
24	N 043 815 2	sealing ring	2
		A 20 X 24
25	931 107 151 00	bracket	1
		for
		oil filter
26	999 701 621 40	o-ring	1
		63,09 X 3,53
27	046 115 579 A	banjo bolt	1
28	931 107 152 00	Schraube plug	1
29	900 123 098 70	sealing ring	1
		A 42 X 49
30	928 107 173 00	spring	1
31	928 107 172 02	regulator insert	1
32	928 107 171 01	spring	1
33	931 107 127 11	oil pipe	1	TURBO
		oil cooler
		engine
34	931 107 129 11	oil pipe	1	TURBO
		oil cooler
		engine
35	999 134 023 02	banjo bolt	2
36	900 123 106 30	sealing ring	4
		A 18 X 24
37	931 107 125 01	retaining bracket	1
38	999 511 066 02	clamp	2
39	931 207 051 01	engine oil cooler	1	TURBO
40	900 378 030 09	hexagon-head bolt	1
		M 6 X 20
41	056 129 669 B	grommet	3

Pos	__Part_Number__	Description	Qty.
42	052 109 135	spacer sleeve	3
43	931 107 154 00	support	1
44	047 115 645	pipe clamp	1
45	900 067 011 02	pan-head Schraube	2
		M 6 X 20
46	900 076 010 02	hexagon nut	2
		M 6
