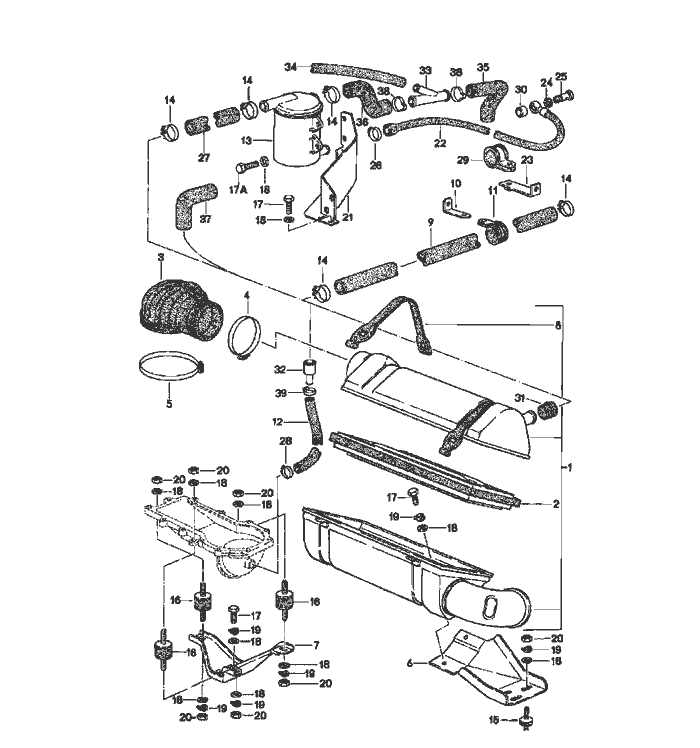

Porsche 924 Luft Cleaner System Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		air cleaner system			TURBO/GT
(1)	931 110 021 05	air cleaner		1	(AUS) (USA)
		ready for installation			(CDN) (J)
2	931 110 121 00	air cleaner cartridge		1
3	931 110 358 00	air box		1
4	N 024 326 1	hose clamp		1
5	N 024 334 1	hose clamp		1
6	477 809 085	support		1
7	477 805 513	support		1
8	A 928 110 363 01	restraining strap		2
8	928 110 363 01	restraining strap		2
9	931 107 394 02	hose		1	M31.01/02
		22 X 30
		650 MM
10	931 107 159 00	support		1
11	999 511 077 02	clamp		1
(12)	931 107 397 00	breather pipe	82	1	M31.03/04
13	931 107 221 01	oil separator		1
		use also:
		until
		model year
		80
		931.107.223.03
14	999 512 252 02	hose clamp		2
		LA 23 -35
15	931 110 191 00	bonded rubber buffer		3
16	999 703 239 00	bonded rubber buffer		3
17	999 072 005 09	hexagon-head bolt		3
		M 6 X 12
17A	N 010 215 13	hexagon-head bolt		2
		M 6 X 15
18	N 011 524 7	washer		10
		A 6,4

Pos	__Part_Number__	Description	Remark	Qty.	Model
19	N 012 226 5	spring washer		15
		B 6
20	900 076 010 02	hexagon nut		8
		M 6
21	931 107 227 00	retaining bracket		1
22	931 107 223 02	return line	80	1	M31.02
22	931 107 223 03	return line	81	1
23	931 107 225 01	retaining bracket		1
24	900 123 007 30	sealing ring		2
		A 14 X 18
25	999 134 021 02	banjo bolt		1
26	N 024 510 1	hose clamp		1	M31.02
		LA 16 -25
26	999 512 252 02	hose clamp		1
		LC 23 -35
27	931 107 394 02	hose		1
		22 X 30
		650 MM
28	999 512 554 00	hose clamp		2	(AUS) (USA)
		LA 12 -20			(CDN) (J)
29	999 511 080 02	clamp		2
30	931 107 229 00	sleeve		1
(31)	930 110 256 00	cap		1	(AUS)(USA)
33	931 107 385 00	branch socket	81	1
(33)	931 107 389 00	joining socket	82	1
-	N 020 363 1	hose	81	*
		15 X 2,5
		1200 MM		1
35	931 107 169 00	hose	81	1
36	931 107 171 00	hose	81	1
38	999 512 336 02	clamp	81	3
		28 -32
