Porsche 924 Turbocharging Teile

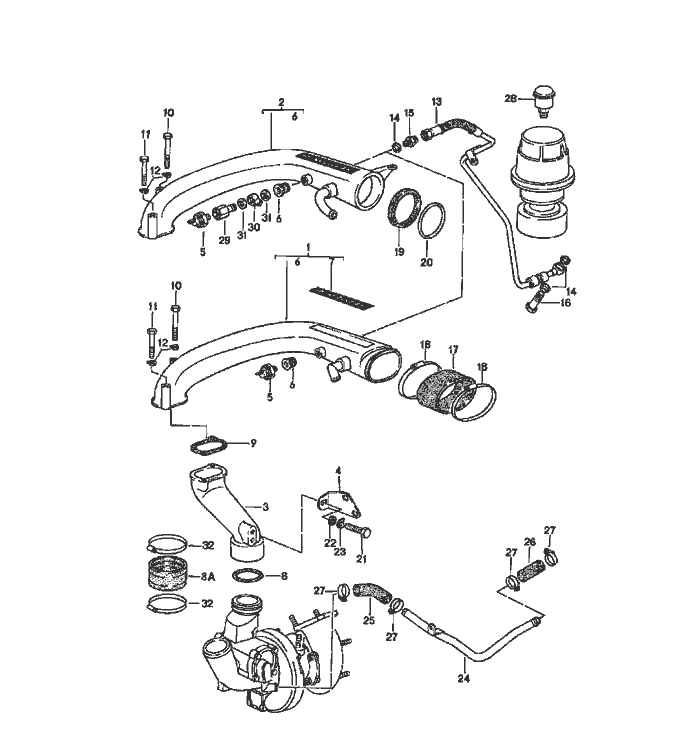

Turbocharging


Pos__Part_Number__DescriptionRemarkQty.Model
  turbocharging   TURBO/GT
1 931 110 051 01pressure pipe 80 1 M31.01/02
2 931 110 051 03pressure pipe 81 1 M31.03/04
2 931 110 051 03pressure pipe 821 M31.03/04
(3) 931 110 160 01pressure pipe 80 1 M31.01/02
3 931 110 160 02pressure pipe 81 1 M31.03/04
(3) 931 110 019 00pressure pipe 821 M31.03/04
4 931 110 155 01support  1
5 930 606 101 00switch  1
6 930 110 367 01threaded insert  1
7 931 110 405 00logo 80 1 M31.01/02
8 * 999 701 473 40round seal -81 1
  47 X 5,7
8A 931 110 289 00rubber sleeve 821 M31.03/04
9 * 931 110 152 01gasket  1
10 N 010 313 4hexagon-head bolt  1
  M 6 X 85
11 N 010 366 4hexagon-head bolt  1
  M 6 X 55
12 N 012 226 5spring washer  2
  B 6
13 931 123 135 03control line  1 TURBO
14 900 123 043 30sealing ring  3
  A 12 X 15,5
15 N 020 704 2connection piece  1
16 900 175 020 02banjo bolt  1
17 931 110 157 02rubber sleeve 80 1 M31.01/02
18 999 512 350 02hose clamp 80 2 M31.01/02
  LA 80 X 100
19 931 110 379 00sealing ring 811 M31.03/04

Pos__Part_Number__DescriptionRemarkQty.Model
20 999 701 477 40round seal 71,2 X 5,7 811 M31.03/04
21 900 075 085 02hexagon-head bolt M 8 X 20  3
22 900 025 007 02washer A 8,4  3
23 N 012 241 8spring washer B 8  3
24 931 110 175 00line  1 TURBO/GT
25 931 110 185 01moulded hose  1 TURBO/GT
-999 239 007 40hose 15 X 24  * TURBO/GT
26 -40 MM  1
27 999 512 254 02hose clamp S 24/9  4 TURBO/GT
28 931 123 155 00bleeder valve  1 TURBO/GT
32 999 512 349 02hose clamp LB 50 -70 822 M31.03/04
