Porsche 924 Kraftstoff System Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model

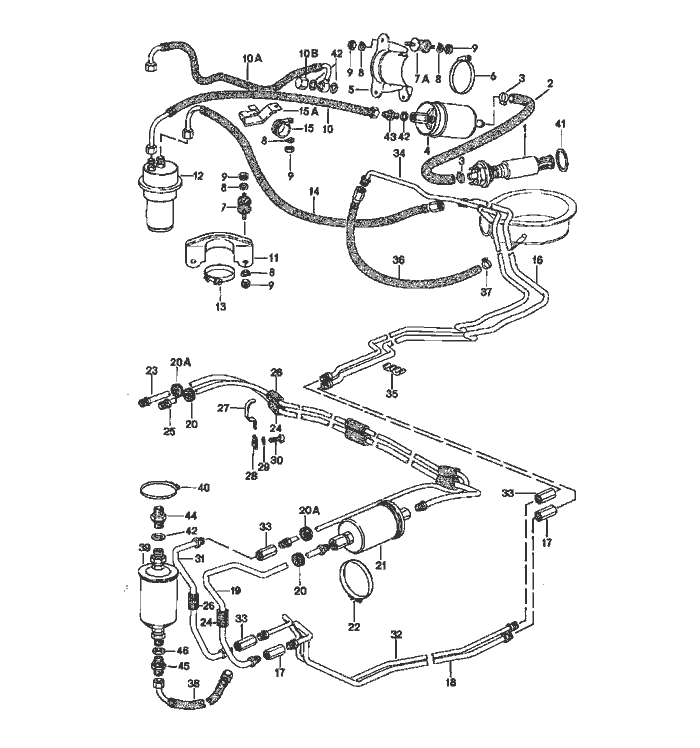

		fuel system
1	928 608 013 00	in-tank fuel pump		1
2	477 209 199 D	fuel hose		1
3	N 023 526 2	hose clamp		2
		A 9 X 18
4	911 608 102 00	fuel pump	80	1
(4)	911 608 102 02	fuel pump	81	1
5	477 209 295 A	support		1
6	999 512 394 00	hose clamp		1
7	944 610 115 00	bonded rubber mounting		2
7A	944 610 115 00	bonded rubber mounting		3
8	N 012 226 5	spring washer		10
		B 6
9	900 076 010 02	hexagon nut		10
		M 6
10	477 209 093 A	fuel hose		1
10A	477 209 093 C	fuel hose	81	1
10B	N 011 069 1	cap nut	81	1
		M 12 X 1,5
11	477 209 291	support		1
12	931 110 140 00	pressure accumulator		1
		40 CCM
13	999 512 199 02	clamp		1
14	477 209 047 B	fuel hose		1
15	N 020 690 1	hose clamp		1
16	477 209 178 A	fuel line		1
17	477 209 169	connecting piece		2
18	477 209 177 A	fuel line		1
19	477 209 033 A	fuel line	Left Hand Drive	1	TURBO/GT

Pos	__Part_Number__	Description	Remark	Qty.	Model
20	999 702 087 50	rubber sleeve		2	TURBO/GT
20A	999 702 120 50	rubber sleeve		2	TURBO/GT
(21)	931 110 149 00	fuel filter		1	TURBO
		F >>93A01 50418
21	931 110 149 04	fuel filter		1	TURBO/GT
22	N 024 316 1	hose clamp		1	TURBO/GT
		12 X 35
23	477 209 057	fuel line	Left Hand Drive	1	TURBO/GT
24	477 209 303	hose piece		4	TURBO/GT
25	477 209 059 A	fuel line	Left Hand Drive	1	TURBO/GT
		return line
26	477 209 305	hose piece		4	TURBO/GT
27	477 209 307	clip		3	TURBO/GT
28	N 015 458 1	speed nut		3	TURBO/GT
		B 4,8 X 20			TURBO/GT
29	900 025 003 02	washer		3	TURBO/GT
		A 5,3
30	N 013 975 6	tapping Schraube		3	TURBO/GT
		B 4,8 X 19
31	477 209 035 A	fuel line		1	TURBO/GT
		return line
32	477 209 175	fuel line		1
		return line
33	477 209 161	connecting piece		3
34	477 209 176 A	fuel line		1
		return line
35	911 356 543 01	support		13
(35)	944 356 591 00	support	82	12
36	477 209 071 C	fuel hose		1
37	N 023 577 2	hose clamp		1
38	477 209 047 A	fuel hose		1	924

Pos	__Part_Number__	Description	Remark	Qty.	Model
(38)	477 209 037	fuel line	81	1	924 (USA) (CDN)
39	* 930 110 076 00	fuel filter		1	924
(39)	928 110 147 05	fuel filter	81	1	924
40	111 501 159 B	hose clamp 9 X 56		1	924
40	N 024 316 1	hose clamp 12 X 75	81	1	924 (USA) (CDN)
41	928 201 187 02	sealing ring		1
42	N 013 812 3	sealing ring A 12 X 15,5		2
43	N 020 704 2	connection piece	80	X
(43)	911 608 951 00	check valve for fuel pump long neck	80	X
(43)	893 906 093	retaining valve for fuel pump short neck	81	1
44	930 110 199 00	Schraube socket		1	924
45	930 110 198 00	Schraube socket		1	924
46	900 123 007 30	sealing ring A 14 X 18		1	924
