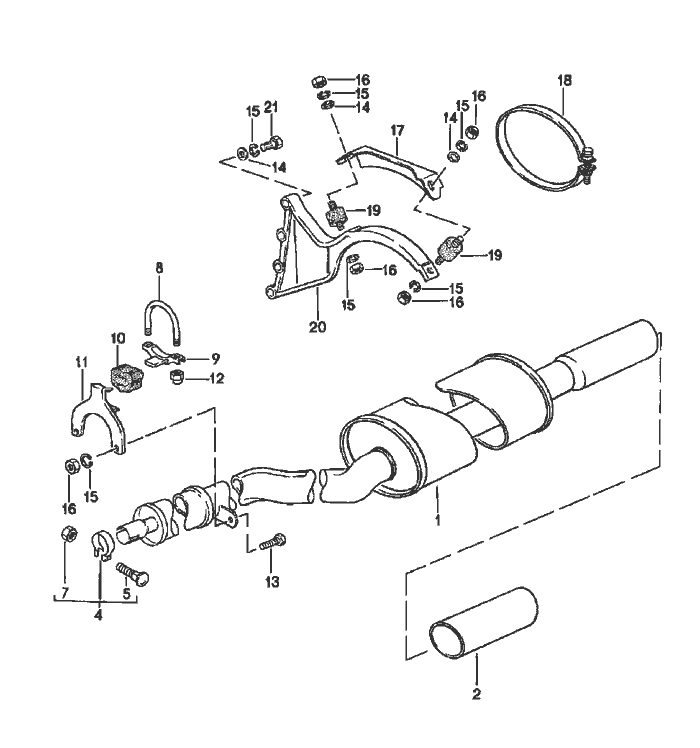

Porsche 924 Auspuff System Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		exhaust system			924
		rear muffler
1	477 253 125 S	rear muffler		1
2	477 253 191 C	ornamental exhaust pipe		1
		chrome
4	A 191 253 139 G	clamp		1
4	191 253 139 G	clamp		1
5	N 902 064 01	round head Schraube		1
		M 10 X 50
7	N 011 010 6	hexagon nut		1
		M 10
8	477 253 139	clip		1
9	944 111 307 00	support		1
10	477 253 140 A	rubber mounting		1
11	477 253 245	hook		1
12	900 910 097 02	lock nut		2
		VM 8
13	N 010 240 16	hexagon-head bolt		2
		M 8 X 20
14	N 011 525 13	washer		6
		A 8,4
15	900 027 015 02	lock ring		6
		B 8
16	N 011 008 8	hexagon nut		6
		M 8
17	477 253 253 D	retaining bracket		1
18	477 253 325 A	clamp		1
19	477 253 149 C	bonded rubber buffer		2
20	477 253 243	support		1
(20)	477 253 255 C	support	AUT.	1
21	N 010 369 2	hexagon-head bolt		4
		M 8 X 58

Pos	__Part_Number__	Description	Remark	Qty.	Model
		heat shield see group 8/01/05
