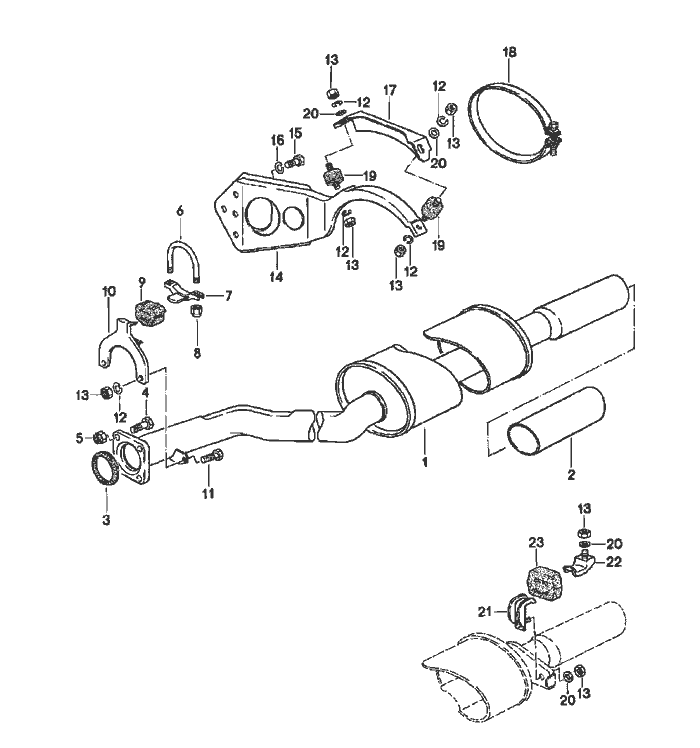

Porsche 924 Auspuff System Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		exhaust system			TURBO/GT
		rear muffler
1	931 111 050 06	rear muffler		1	TURBO
2	477 253 191 C	ornamental exhaust pipe		1
		chrome
3	* 928 111 244 03	sealing ring		1
4	N 010 020 2	hexagon-head bolt		4
		M 10 X 38
5	999 084 047 02	lock nut		4
		M 10
6	477 253 139	clip		1
7	944 111 307 00	support		1
8	900 910 097 02	lock nut		2
		VM 8
9	477 253 140 A	rubber mounting		1
10	931 111 061 02	hook		1
11	N 010 240 16	hexagon-head bolt		2
		M 8 X 20
12	900 027 015 02	lock ring		6
		B 8
13	900 076 025 02	hexagon nut		6
		M 8
14	477 253 251	support		1	TURBO
(14)	477 253 243	support	81	1	TURBO
15	N 010 253 7	hexagon-head bolt		3
		M 10 X 22
(15)	N 010 369 2	hexagon-head bolt	81	4	TURBO
		M 8 X 58
16	900 027 016 02	lock ring		3
		B 10
(16)	N 011 525 13	washer	81	4	TURBO
		A 8,4
17	477 253 253 D	retaining bracket		1	TURBO

Pos	__Part_Number__	Description	Qty.	Model
18	477 253 325 A	clamp	1	TURBO
19	477 253 149 C	bonded rubber buffer	2	TURBO
20	900 025 007 02	washer 8,4	2
		heat shield
		see group 8/01/05
