Porsche 924 Central Tube Teile

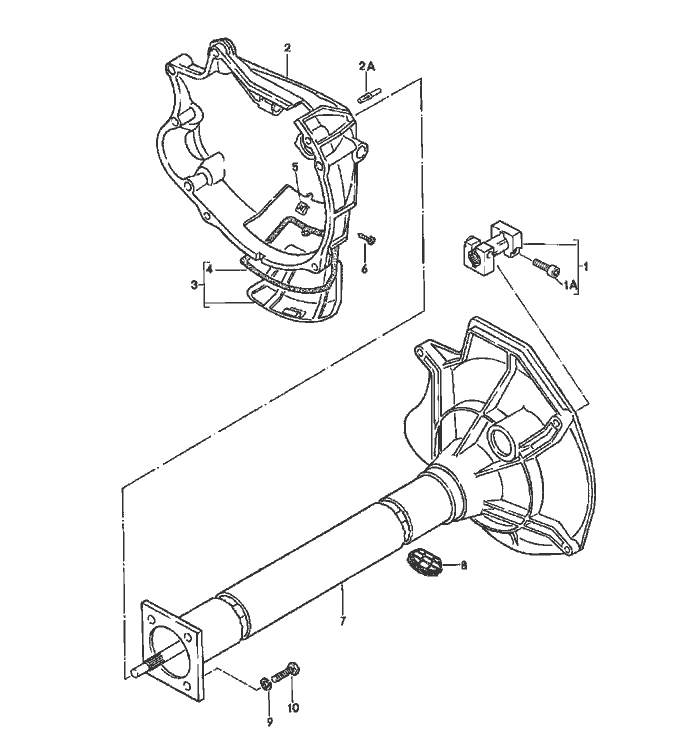

Pos	__Part_Number__	Description	Remark	Qty.	Model
		central tube			924
		manual transmission
		VQ VR UV MD ME MF
1	477 521 145 A	clamping sleeve		1
1A	477 521 501 A	pan-head Schraube		2
2	477 521 211 B	clutch housing		1
2A	N 012 690 1	grooved pin		3
		10 X 32
3	477 521 213	lid		1
4	477 521 214	gasket		1
5	999 591 327 02	speed nut		1
		B 6,3 X 23
6	N 013 947 3	oval-head Schraube		1
		6,3 X 19
7	477 521 230 B	central tube		1
		ready for installation
8	477 521 277 C	cap		1
9	900 027 016 02	lock ring		4
		B 10
10	N 010 275 4	hexagon-head bolt		4
		M 10 X 35
		crash protection			924/TURBO
		for			(USA) (CDN)
		transmission
-	477 599 132 A	bracket	AUT. -81	1	924
-	477 599 132 B	bracket	AUT. 82	1	924
-	477 599 051	bracket	-80	1	TURBO
-	N 012 230 6	spring washer	AUT.	2	924
		B 10
-	N 044 764 2	pan-head Schraube	AUT.	2	924
		M 10 X 30
-	N 014 523 2	stud	AUT.	1	924
		AM 10 X 38

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	N 011 010 6	hexagon nut M 10	AUT.	1	924
-	477 599 141 A	hook		1
-	477 253 139	clip for hook		2
-	900 027 015 02	lock ring B 8		2
-	900 076 025 02	hexagon nut M 8		4
