Porsche 924 Central Tube Teile

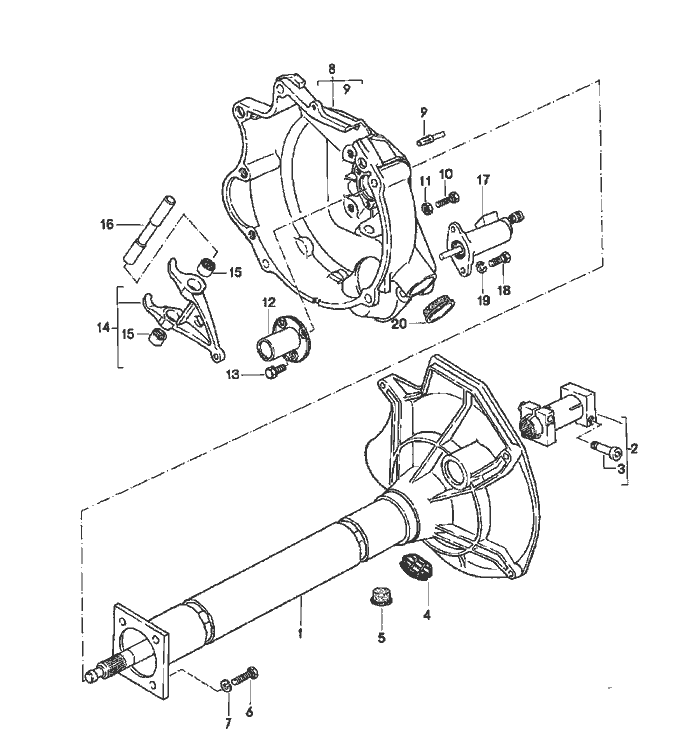

Central Tube


Pos__Part_Number__DescriptionRemarkQty.Model
  central tube 81- TURBO
  manual transmission
  MB MX
1 931 421 012 02central tube  1
  ready for installation
2 922 421 051 02clamping sleeve  1
3 931 421 240 00clamping Schraube  2
4 477 521 277 Ccap  1
5 477 521 177cap  1
6 N 010 275 4hexagon-head bolt  4
  M 10 X 35
7 N 012 028 1lock ring  4
  10
8 931 116 043 02clutch housing  1
9 N 012 690 1grooved pin  3
  10 X 32
10 N 010 221 3hexagon-head bolt  1
  M 6 X 35
11 900 076 010 02hexagon nut  1
  M 6
12 016 141 181guide sleeve  1
13 N 090 194 2hexagon-head bolt  3
  M 7 X 16
14 931 116 085 00clutch release lever  1
15 999 201 213 00needle sleeve  2
16 951 116 133 00clutch control shaft  1
17 944 116 237 00clutch operating cylinder  1
-* 928 116 901 00repair kit  1
  clutch operating cylinder
18 N 010 233 6hexagon-head bolt  2
  M 8 X 28
19 N 012 038 1lock ring  2
  B 8

Pos__Part_Number__DescriptionRemarkQty.Model
20 931 116 177 00cap crash protection for transmission see group 3/01/00  1
