Porsche 924 Gears und Shafts Teile

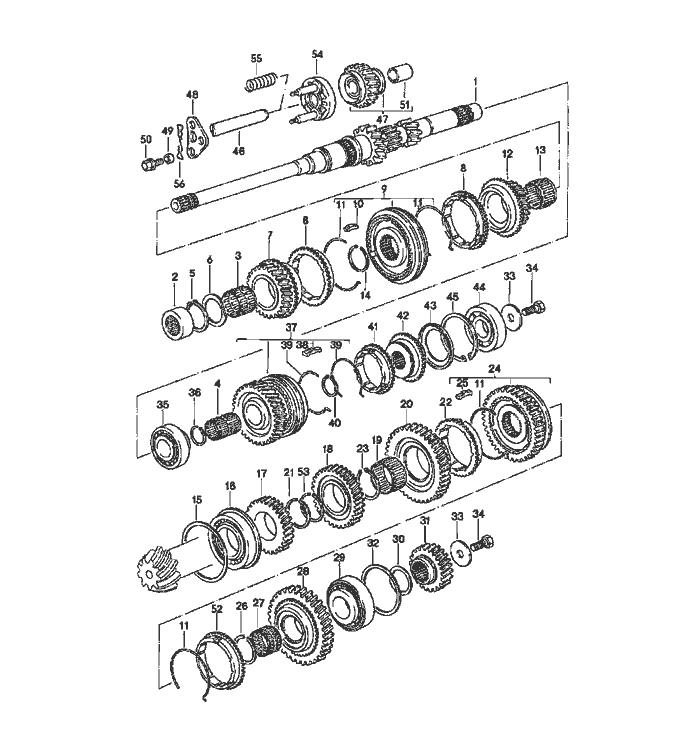

Gears und Shafts


Pos__Part_Number__DescriptionRemarkQty.Model
  gears and shafts   924
   81- TURBO
  manual transmission
  VQ VR UV MD
  ME MF MB MX
1 016 311 105 Qdrive shaft  1 VQ VR UV
     MD ME MF
     MD ME MF
1 016 311 105 Sdrive shaft 811 MB MX
2 088 311 123needle sleeve  1 VQ VR UV
     MD ME MF
2 083 311 123needle sleeve 811 MB MX
3 016 311 115needle-roller bearing  1
  4th speed
4 016 311 116 Aneedle-roller bearing  1
  5th gear
5 088 311 287circlip  1
  1,65
5 088 311 287 Bcirclip  X
  1,75
5 016 311 344circlip  X
  together with
  shaft
  016.311.105.S
  shaft
  016.311.105.Q
6 088 311 155 Athrust washer  1
7 016 311 351 Ashifting gear  1 VQ MD MB MX
  4th speed
7 088 311 351 Ashifting gear  1 VR UV
     ME MF
  4th speed
8 088 311 295 Bsynchroniser ring  2
  3rd/4th gear
9 088 311 301 Bsynchronising hub  1
  3rd/4th gear
10 088 311 245detent  3
  3rd/4th gear

Pos__Part_Number__DescriptionRemarkQty.Model
11 088 311 311 Dspring  4
12 005 311 285shifting gear  1 VQ MD
     MB MX
  3rd gear
12 088 311 285 Ashifting gear  1 VR UV
     ME MF
  3rd gear
13 016 311 213 Hneedle-roller bearing  1
  3rd gear
14 088 311 317circlip  1
  1,50
14 088 311 317 Bcirclip  X
  1,56
14 088 311 317 Ccirclip  X
  1,62
15 088 311 391shim  1
  0,20
15 088 311 391 Ashim  X
  0,25
15 088 311 391 Bshim  X
  0,30
15 088 311 391 Cshim  X
  0,35
15 088 311 391 Dshim  X
  0,40
15 088 311 391 Eshim  X
  0.65
15 088 311 391 Fshim  X
  0,90
15 088 311 391 Gshim  X
  1,15
16 016 311 220 Etaper roller bearing  1
17 016 311 149 Cgear wheel  1 VQ MD
     MB MX
  4th speed

Pos__Part_Number__DescriptionRemarkQty.Model
17 016 311 149 Agear wheel  1 VR UV
     ME MF
  4th speed
18 016 311 131 Dgear wheel  1 VQ MD
     MB MX
  3rd gear
18 016 311 131 Agear wheel  1 VR,UV
     ME MF
  3rd gear
19 016 311 229 Aneedle-roller bearing  1
  2nd gear
20 016 311 271shifting gear  1
  2nd gear
21 016 311 363circlip  1
  2,24
21 016 311 363 Acirclip  X
  2,26
21 016 311 363 Bcirclip  X
  2,28
21 016 311 363 Ccirclip  X
  2,30
21 016 311 363 Dcirclip  X
  2,32
21 016 311 363 Ecirclip  X
  2,34
21 016 311 363 Fcirclip  X
  2,36
21 016 311 363 Gcirclip  X
  2,38
21 016 311 363 Hcirclip  X
  2,40
22 016 311 295synchroniser ring  1
  2nd gear
23 016 311 287circlip  1
  1,65
23 016 311 287 Acirclip  X
  1,70

Pos__Part_Number__DescriptionRemarkQty.Model
23 016 311 287 Bcirclip  X
  1,75
24 016 311 239 Esynchronising hub  1
  1st/2nd gear
25 088 311 313detent  3
  1st/2nd gear
26 016 311 327circlip  1
  1,50
26 016 311 327 Acirclip  X
  1,55
26 016 311 327 Bcirclip  X
  1,60
27 016 311 207 Aneedle-roller bearing  1
28 016 311 257shifting gear  1
  1st gear
29 016 311 375 Btaper roller bearing  1
  see tpi
  GR. 3/1
30 016 311 391adjusting shim  1
  1,10
30 016 311 391 Aadjusting shim  X
  1,40
30 016 311 391 Badjusting shim  X
  1,70
30 016 311 391 Cadjusting shim  X
  2,00
30 016 311 391 Dadjusting shim  X
  2,30
31 016 311 159 Fgear wheel  1 VR UV
     ME MF
  5th gear
     MB MX
  see tpi
  GR. 3/1
32 016 311 393shim  1
  0,24

Pos__Part_Number__DescriptionRemarkQty.Model
(32) 016 311 393 Ashim  X
  0,27
(32) 016 311 393 Bshim  X
  0,30
(32) 016 311 393 Cshim  X
  0,33
(32) 016 311 393 Dshim  X
  0,36
(32) 016 311 393 Eshim  X
  0,39
(32) 016 311 393 Fshim  X
  0,42
(32) 016 311 393 Gshim  X
  0,45
(32) 016 311 393 Hshim  X
  0,69
(32) 016 311 393 Jshim  X
  0,93
(32) 016 311 393 Kshim  X
  1,17
(32) 016 311 393 Lshim  X
  1,41
33 N 902 582 01clamping Schraube  2
34 N 902 582 01clamping Schraube  2
  M 10 X 22
35 016 311 427cylindrical-roller bearing  1
36 N 900 606 01circlip  1
  A 27 X 1,35
(36) N 900 606 02circlip  X
  A 27 X 1,40
(36) N 900 606 03circlip  X
  A 27 X 1,45
(37) 016 311 353 Eshifting gear  1 VR UV
     ME MF
  5th gear   MB MX

Pos__Part_Number__DescriptionRemarkQty.Model
38 016 311 246detent  3
  5th gear
39 014 311 311 Cspring  2
  5th gear
40 N 900 607 01circlip  1
  A 27 X 1,9
41 014 311 295 Esynchroniser ring  1
  5th gear
42 016 311 192 Aclutch hub  1
  5th gear
43 016 311 449dust plate  1
44 016 311 445four-point bearing  1
45 N 900 608 01circlip  1
  A 68 X 2,83
(45) N 900 608 02circlip  X
  A 68 X 2,90
46 016 311 519 Aaxle 80 1 VQ VR UV
(46) 016 311 519 Breverse idler gear shaft 811 MD ME MF
     MB MX
47 016 311 529 Dreverse idler gear  1
48 016 311 853 Bretainer plate  1
     MB MX
49 088 301 291 Ashouldered bolt  1
50 088 301 291 Ashouldered bolt  1
  M 8 X 16
51 088 311 533bush  1
52 016 311 247synchroniser ring  1
  1st gear
53 016 311 363 Hcirclip  1
  2,40
