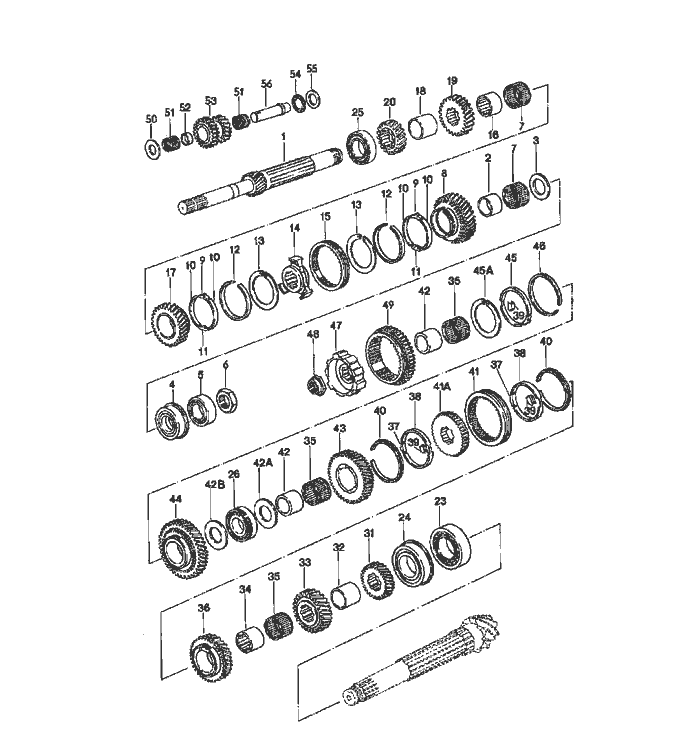

Porsche 924 Gears und Shafts Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		gears and shafts			TURBO/GT
		manual transmission
		G31.01/02/03
1	-	drive shaft		1
		see group
		3/03/10
2	915 302 261 00	bush		1
		5th gear
3	930 302 291 00	thrust washer		1
4	999 052 030 00	four-point bearing		1
5	930 302 391 00	cylindrical-roller bearing		1
6	930 302 281 00	collar nut		1
		M 30 X 1,5
7	999 201 470 00	needle cage		2
8	-	loose gear wheel		1
		5th gear
		see group
		3/03/10
9	911 302 315 00	stone		2
10	911 302 316 00	brake band		4
11	911 302 317 12	stop		2
12	911 302 301 08	synchroniser ring		2
13	911 302 311 01	circlip		2
14	911 302 402 20	guide sleeve		1
15	911 302 411 20	shift sleeve		1
16	915 302 262 00	bush		1
17	-	loose gear wheel		1
		4th speed
		see group
		3/03/10
18	477 302 266	spacer sleeve		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
19	-	fixed gear wheel		1
		3rd gear
		see group
		3/03/10
20	-	fixed gear wheel		1
		2nd gear
		see group
		3/03/10
23	999 110 146 00	cylindrical-roller bearing		1
24	999 052 053 00	four-point bearing		1
25	999 110 091 00	cylindrical-roller bearing		1
26	999 110 076 00	cylindrical-roller bearing		1
31	-	fixed gear wheel		1
		5th gear
		see group
		3/03/10
32	477 302 266	spacer sleeve		1
33	-	fixed gear wheel		1
		4th speed
		see group
		3/03/10
34	477 302 263	bush		1
		3rd gear
35	477 302 298	needle cage		3
36	-	loose gear wheel		1
		3rd gear
		see group
		3/03/10
37	915 302 315 01	stone		3
38	928 302 318 01	double barricade tape		2
39	928 302 321 00	stop		3
40	931 302 301 01	synchroniser ring		2
41	928 302 413 08	shift sleeve		1
41A	477 302 402	guide sleeve		1
		2nd/3rd gear

Pos	__Part_Number__	Description	Remark	Qty.	Model
42	477 302 261	bush		2
		1st/2nd gear
42A	477 302 291	thrust washer		1
42B	931 302 291 00	thrust washer		1
43	-	loose gear wheel		1
		2nd gear
		see group
		3/03/10
44	-	loose gear wheel		1
		1st gear
		see group
		3/03/10
45	928 302 319 05	double barricade tape		1
45A	915 302 311 01	circlip		1
46	931 302 301 02	synchroniser ring		1	G31.01/02
47	931 302 401 00	guide sleeve		1
		1st gear
		reverse gear
48	915 302 282 00	collar nut		1
		M 24 X 1,5
49	931 302 227 00	shifting gear		1
		1st gear
		reverse gear
50	915 302 229 01	thrust washer		1
51	999 201 141 00	needle cage		2
52	931 302 231 00	intermediate ring		1
53	-	reverse idler gear		1
		see group
		3/03/10
54	999 202 001 00	axial needle bearing cage		1
55	999 201 707 01	washer		1
56	931 302 233 00	bolt		1
