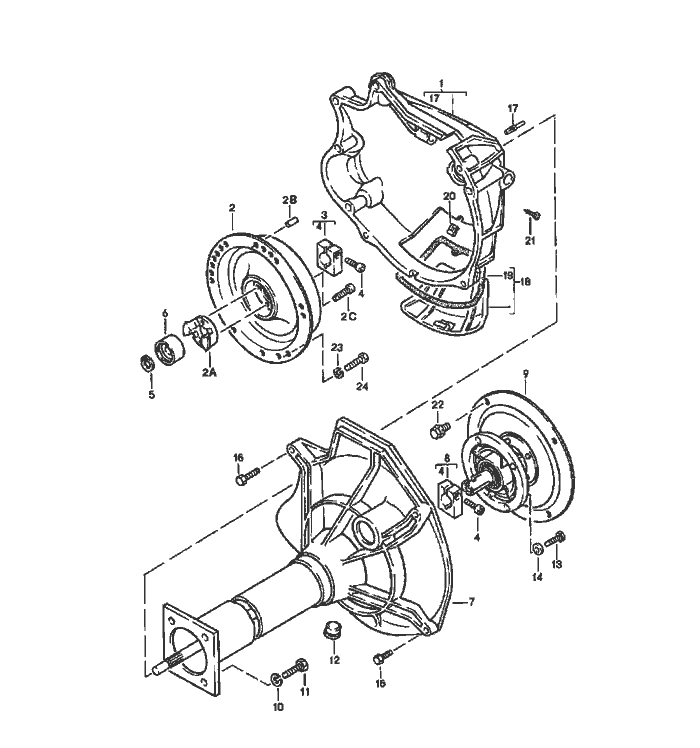

Porsche 924 Central Tube Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		central tube			924
		automatic transmission
1	477 521 109	clutch housing		1
2	477 521 603	damper		1
2A	477 521 617	stop plate		1
2B	999 095 019 00	clamping pin		2
		S 10 X 20
2C	N 014 725 2	pan-head Schraube		2
		M 8 X 25
3	477 521 247 E	terminal		1
4	477 521 501 A	pan-head Schraube		2
5	900 273 002 01	circlip		1
		17 X 1
6	477 521 181 A	spacer sleeve		1
		1,00
(6)	477 521 182 A	spacer sleeve		X
		2,00
(6)	477 521 183 A	spacer sleeve		X
		3,00
(6)	477 521 184 A	spacer sleeve		X
		4,00
(6)	477 521 185 A	spacer sleeve		X
		5,00
(6)	477 521 186 A	spacer sleeve		X
		6,00
(6)	477 521 187 A	spacer sleeve		X
		7,00
(6)	477 521 188 A	spacer sleeve		X
		8,00
(6)	477 521 189 A	spacer sleeve		X
		9,00
7	477 521 130 C	central tube		1
		ready for installation
8	477 521 247 D	terminal		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
9	477 521 110 C	converter mounting		1
10	900 027 016 02	lock ring		4
		B 10
11	N 010 275 4	hexagon-head bolt		4
		M 10 X 35
12	477 521 277 C	cap		1
13	900 075 029 09	hexagon-head bolt		4
		M 8 X 25
14	N 012 241 11	spring washer		4
		B 8 X 15
15	N 010 185 3	hexagon-head bolt		2
		M 12 X 80
16	N 040 240 2	hexagon-head bolt		1
		M 10 X 50
17	N 012 690 1	grooved pin		3
		10 X 32
18	477 521 213	lid		1
19	477 521 214	gasket		1
20	999 591 327 02	speed nut		1
		B 6,3 X 23
21	N 013 947 3	oval-head Schraube		1
		6,3 X 19
22	003 323 699 A	hexagon-head bolt		3
23	N 012 038 1	lock ring		6
		A 8
24	N 010 239 11	hexagon-head bolt		6
		M 8 X 18
		crash protection
		transmission
		see group
		3/01/00
