Porsche 924 Ersatz- Getriebe Teile

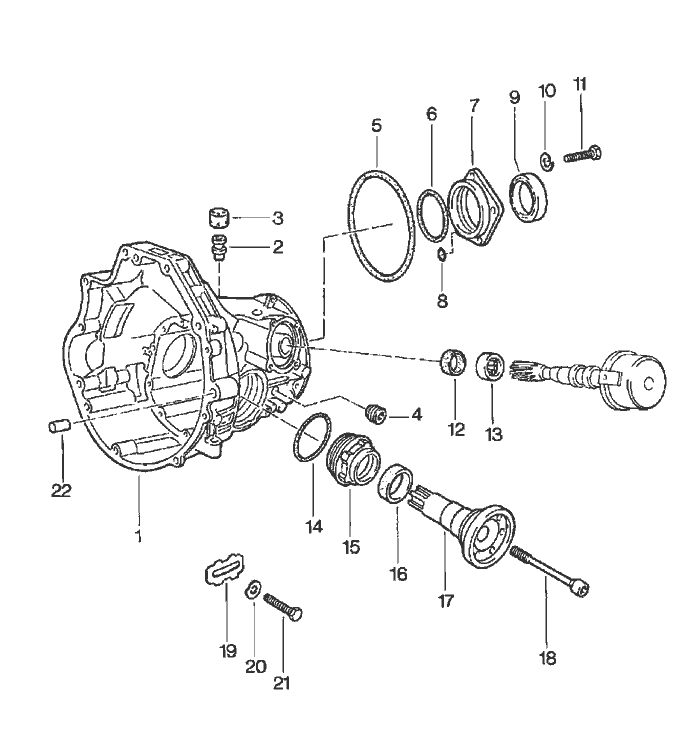

Pos	__Part_Number__	Description	Remark	Qty.	Model
		replacement transmission			924
		final-drive housing
		automatic transmission
-	087 300 035 N	replacement transmission		1	RL
		ready for installation
		for
		model year
		80
		use also:
		911.423.147.00
		477.713.265.C
		477.609.715
		N.015.526.2
		N.011.005.4
		N.011.665.5
1	087 409 051 H	final-drive housing		1
2	010 409 847	breather pipe		2
3	087 409 841	cap		2
4	111 301 127 E	Schraube plug		1
		M 24 X 1,5
5	* 010 409 549 B	round seal		1
6	* 087 409 549	round seal		1
7	087 409 623 A	lid		1
8	* 089 409 637 A	sealing ring		1
9	* 087 409 529 B	radial shaft seal		2
10	N 012 028 1	lock ring		5
11	900 075 111 08	hexagon-head bolt		5
		M 10 X 30
12	* 087 409 133	radial shaft seal		1
13	082 409 139	needle-roller bearing		1
14	* 011 519 345	round seal		2
15	087 409 173	adjusting ring		2
16	* 016 409 399 B	radial shaft seal		1
17	087 409 355	flanged shaft	Left	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
(17)	087 409 356	flanged shaft	Right	1
18	087 409 359	Schraube	Left	1
(18)	087 409 360	Schraube	Right	1
19	010 409 257	tab washer		2
20	N 012 226 5	spring washer		2
		B 6
21	N 010 215 13	hexagon-head bolt		2
		M 6 X 15
22	019 301 153	dowel sleeve		2
