Porsche 924 Getriebe Teile Teile

Getriebe Teile

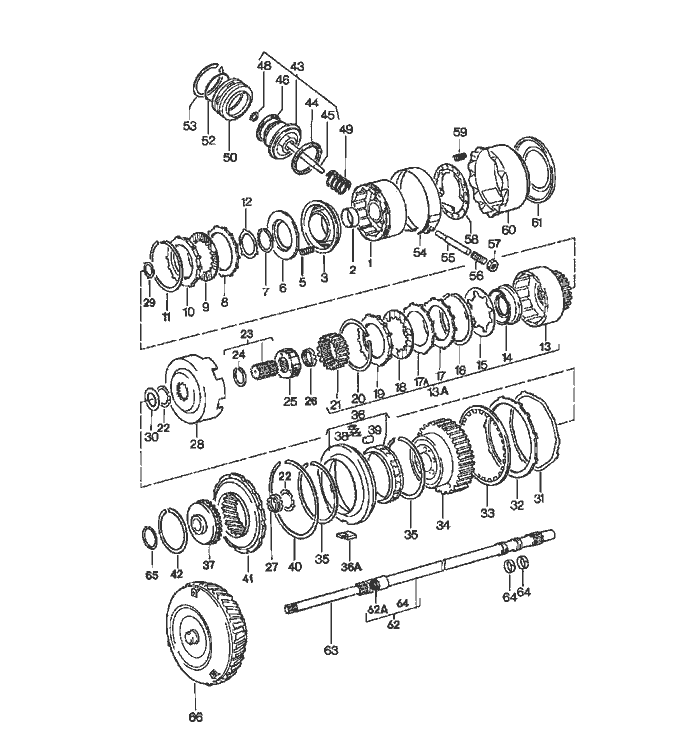

Pos__Part_Number__DescriptionRemarkQty.Model
  transmission parts   924
  automatic transmission
1 010 323 109 Cclutch drum  1 RK RL
2 010 323 115bearing sleeve  1
3 010 323 121 Bpiston  1
5 010 323 129 Acompression spring  24
6 010 323 131 Aconcave washer  1
7 003 323 135 Acirclip  1
8 010 323 139disc with external splines  4 RK RL
9 010 323 141 Cdisc with external splines  4
10 010 323 153pressure plate  1
11 010 323 157circlip  1
  2,03
(11) 010 323 157 Acirclip  X
  1,50 MM
(11) 010 323 157 Bcirclip  X
  1,70 MM
(11) 010 323 157 Hcirclip  X
  2,30 MM
(11) 010 323 157 Jcirclip  X
  2,50 MM
12 010 323 161 Athrust washer  1
13A 010 323 205forward clutch  1
  G >> RL 02 08 1
13 087 323 209clutch bell-housing  1
  G RL 03 08 1 >>
14 010 323 217 Apiston  1
16 010 323 157circlip  1
17 010 323 237 Apressure plate  1
17A 010 323 139disc with external splines  3
  forward clutch

Pos__Part_Number__DescriptionRemarkQty.Model
18 010 323 241 Binner disc  4
19 010 323 253 Apressure plate  1
  6,40
(19) 010 323 253 Bpressure plate  X
  6,80
(19) 010 323 253 Cpressure plate  X
  7,20
(19) 010 323 253 Dpressure plate  X
  7,60
(19) 010 323 253 Fpressure plate  X
  6,00
20 010 323 159 Block ring  1
21 010 323 273 Bring gear  1 RK RL
22 010 323 291thrust washer  1
23 010 323 285 Esun gear  1 RK RL
24 N 042 451 1circlip  1
  A 40
25 010 323 303planet-gear carrier  1 RK RL
26 010 323 340 Dneedle-roller bearing  1
27 010 323 339 Dneedle-roller bearing  1
28 010 323 281driving shell  1 RK RL
29 003 323 165thrust washer  1
  40
  G >> RL 31 07 1
29 010 321 157 Aneedle-roller bearing  1
  G RL 03 08 1 >>
30 010 323 293 Bthrust washer  1 RK RL
31 010 323 295 Cspring washer  1
  G >> RK 03 03 3
  G >> RL 03 03 3
  G >>RCC 03 03 3
32 010 323 227 Adisc with external splines  5
33 010 323 231 Cinner disc  5

Pos__Part_Number__DescriptionRemarkQty.Model
34 090 323 805planet-gear carrier  1 RK RL
35 010 323 651circlip  2
36 010 323 383 Cfree wheel lock  1
  1st gear
36A 010 323 389 Efeather key  1
37 087 323 373 Ahub  1 RK RL
38 010 323 643compression spring  10 RK RL
39 N 026 360 1roller  10
40 010 323 653 Acirclip  1
41 090 323 363 Aring gear  1 RK RL
41 090 323 363 Bring gear  1 RCC
42 090 323 369circlip  1 RK RL
42 010 323 369 Acirclip  1 RCC
43 010 323 511 Kpiston  1
44 003 323 525 Asealing ring  1
45 010 323 517 Dpiston rod  1
46 010 323 487 Csealing ring  1
48 010 323 541 Block washer  1
49 010 323 505 Acompression spring  1
50 087 323 529lid  1
52 010 323 533round seal  3
53 010 323 537 Acirclip  1
54 010 323 461 Abrake band  1
55 010 323 543 Abolt  1
56 010 323 455 Aadjusting Schraube  1
57 N 011 162 9hexagon nut  1
  M 12 X 1,5
58 010 323 497 Csupporting plate  1

Pos__Part_Number__DescriptionRemarkQty.Model
59 010 323 489 Bcompression spring  20
60 010 323 493 Apipe  1
60 010 323 493 Dpipe  1
61 010 323 479 Apiston  1
62 087 323 553 Aturbine shaft  1
62A 087 323 559gasket  1
  G RL 30 01 0 >>
63 010 323 561 Aoil pump shaft  1
64 010 323 557 Apiston ring  2
65 010 323 345 Cadjusting shim  1
65 010 323 346 Cadjusting shim  X
66 089 323 571 Aconverter  1
