Porsche 924 Cross Member Teile

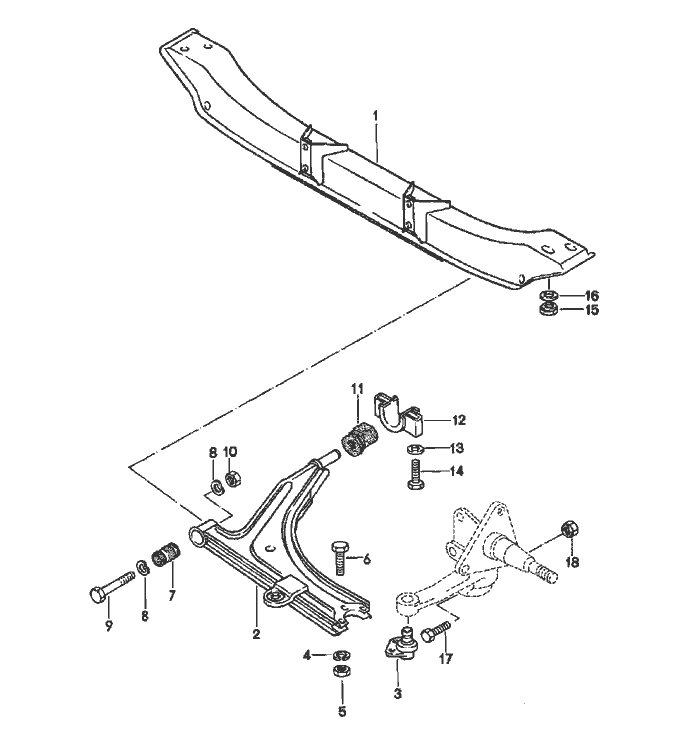

Pos	__Part_Number__	Description	Remark	Qty.	Model
		cross member
		wishbone
1	477 407 321 G	cross member	Left Hand Drive	1
2	477 407 153 F	wishbone		2
		F >>92CN4 02197			924(J)
		F >>92CN4 50831			924(USA)(CDN
		F >>93CN1 00305			TURBO(J)
		F >>93CN1 50331			TURBO(USA)
					(CDN)
(2)	171 407 153 D	wishbone		2
		F 92CN4 02198>>			924 (J)
		F 92CN4 50832>>			924(USA)(CDN
		F 93CN1 00306>>			TURBO (J)
		F 93CN1 50331>>			TURBO(USA)
					(CDN)
-	477 407 151 J	wishbone	/L -81	1
		with
		POS. 2,3,7,11
-	477 407 152 J	wishbone	/R -81	1
		with
		POS. 2,3,7,11
3	171 407 365 G	ball joint		2
		17 MM $
4	N 042 001 1	lock ring		6
		A 7
5	N 011 007 7	hexagon nut		6
		M 7
6	N 040 204 3	hexagon-head bolt		6
		M 7 X 20
7	171 407 182 D	rubber mounting		2
8	N 012 232 5	spring washer		4
		B 12
9	N 010 190 4	hexagon-head bolt		2
		M 12 X 1,5 X 90
10	N 021 131 1	lock nut		2
		M 12 X 1,5
11	477 407 181 A	rubber mounting		2
12	477 407 169	clip		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
13	477 407 425	washer		4
14	N 040 321 1	hexagon-head bolt M 10 X 65		4
15	N 011 185 6	hexagon nut M 10		4
16	N 015 402 1	washer 10,5		4
17	N 010 445 6	hexagon-head bolt M 10 X 45		2
18	N 021 130 2	lock nut M 10		2
