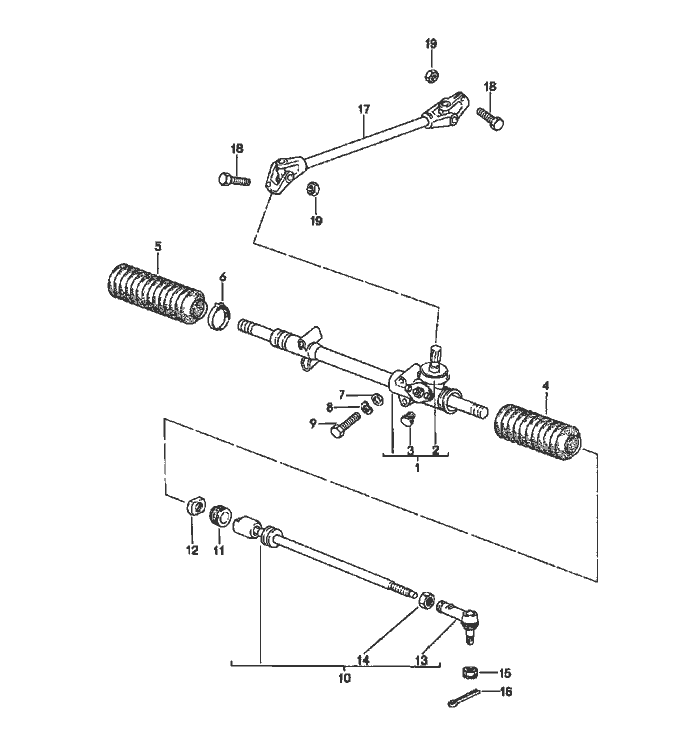

Porsche 924 Lenkung Gear Teile

Lenkung Gear


Pos__Part_Number__DescriptionRemarkQty.Model
  steering gear
  tie rod
1 477 419 061 Csteering gear Left Hand Drive 1
2 477 419 321cap   1
3 477 419 115stopper   1
4 171 419 831 Cboot Left 1
5 171 419 832 Cbellows Right 1
6 823 419 843terminal   1
  45
7 900 025 007 02washer   2
  A 8,4
8 N 012 228 3spring washer   4
  B 8
9 N 010 360 6hexagon-head bolt   4
  M 8 X 60
10 477 419 803 Btie rod   2 924,TURBO
(10) 944 347 033 01tie rod   2
  see technical information
  NR. 22
11 477 419 827stop ring   2
12 171 419 855nut   2
  M 22 X 1,5
13 477 419 815ball joint   2 924,TURBO
(13) 944 347 333 01ball joint   2
14 N 011 163 3hexagon nut   2
  M 14 X 1,5
15 N 011 212 2castle nut   2
  M 12 X 1,5
16 N 012 532 1cotter pin   2
  3 X 25
17 477 419 951 Fdrive shaft Left Hand Drive 1
18 N 010 335 7hexagon-head bolt   2
  M 8 X 35

Pos__Part_Number__DescriptionRemarkQty.Model
19 900 910 022 09lock nut M 8  2
