Porsche 924 Bremse Teile

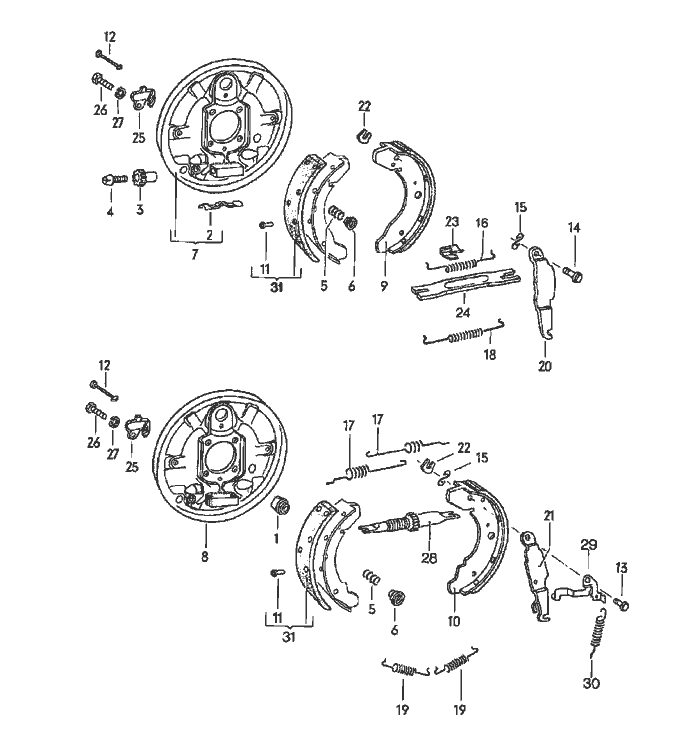

Pos	__Part_Number__	Description	Remark	Qty.	Model
		brake			924
		rear axle
			-80		TURBO
1	113 609 163	stopper		8
2	211 609 185 A	leaf spring		2
		for
		adjusting nut
3	113 609 205 A	adjusting nut		4
4	131 609 209	adjusting Schraube		4
5	251 609 283	spring		4
6	251 609 289	concave washer		4
7	113 609 439 E	calliper carrier	Left	1
(7)	113 609 440 E	calliper carrier	Right	1
9	477 609 537 D	brake shoe		4
		40
		with pad
11	N 013 633 1	rivet		36
		C 4 X 7,5
12	171 609 579 B	roll pin		4
		37
14	211 609 601 B	bearing pin		2
		for
		lever
15	N 012 228 3	spring washer		2
		B 8
16	113 609 605 A	return spring		2
		upper
18	113 609 309 B	return spring		2
		lower
20	113 609 613 A	lever	Left	1
(20)	113 609 614 A	lever	Right	1
22	211 609 619	safety clip		2
		for
		bearing pin

Pos	__Part_Number__	Description	Remark	Qty.	Model
23	113 609 625	clamp for push rod		2
24	113 609 631 A	push rod		2
25	113 609 637	support for parking-brake cable	Left	1
(25)	113 609 638	support for parking-brake cable	Right	1
26	900 075 087 02	hexagon-head bolt M 8 X 16		2
27	900 027 015 02	lock ring B 8		2
31	477 698 075 A	brake pad repair set -ENERGITwithout asbestos		1
(31)	477 698 076 A	brake pad repair set -ENERGITwithout asbestos oversize 0.50 mm		1
		brake drum
		see group 5/01/05
