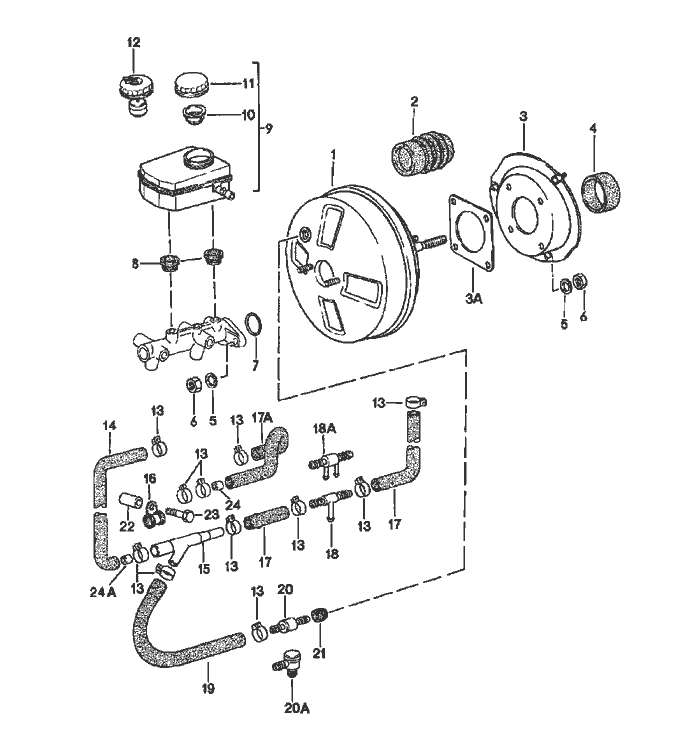

Porsche 924 Bremse Booster Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		brake booster
		expansion tank
1	477 612 107 G	brake booster		1	924
			-80		TURBO
(1)	477 612 107 F	brake booster		1	924,M 471
			-80		TURBO,M 471
			81-		TURBO
2	477 611 115	bellows		1
3	477 611 945 D	intermediate piece		1
3A	477 611 951	gasket		1
(4)	477 611 969 D	gasket		1
5	900 025 007 02	washer		9
6	900 076 025 02	hexagon nut		9
		M 8
7	251 611 243	sealing ring		1
8	W 211 611 817 A	sealing plug		2
8	911 355 922 00	sealing plug		2
9	477 611 303	expansion tank	-80	1
(9)	477 611 303 B	expansion tank	-80	1	M 592
(9)	477 611 303 B	expansion tank	81	1
10	477 611 381	strainer	-80	1
(10)	477 611 385 A	restrictor bush	-80	1	M 592
(10)	477 611 385 A	restrictor bush	81	1
11	477 611 361	lid	-80	1
12	477 611 351 B	lid	-80	1	M 592
		with float
12	477 611 351 B	lid	81	1
		with float
13	N 024 510 1	hose clamp		9
14	477 612 147 A	vacuum hose	80	1	TURBO,GT
		it is necessary to rework	82

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	035 133 753 A	venturi tube		1
16	N 020 607 1	clamp		1
-	999 181 022 51	hose		*	TURBO,GT
17	-	400 MM		1
17A	477 612 153 A	hose		1	924
18	321 611 813	t-socket		1
18A	321 611 813 C	t-piece		1	924,M 157
19	477 612 149	elbow		1	TURBO,GT
(19)	477 612 155	elbow		1	924
(20)	431 611 933	check valve		1	TURBO,GT
20A	191 611 933 F	check valve		1	924
(20A)	477 611 933 A	check valve	82	1	(J)
(20A)	477 611 933 A	check valve	82	1	M 573
21	911 355 921 00	rubber seal		1
22	931 107 143 00	spacer sleeve	-80	1	TURBO
23	900 074 040 02	hexagon-head bolt	-80	1	TURBO
		M 8 X 50
24	928 355 515 00	nozzle	-81	1	924
24A	928 355 515 01	nozzle	82	1	924
