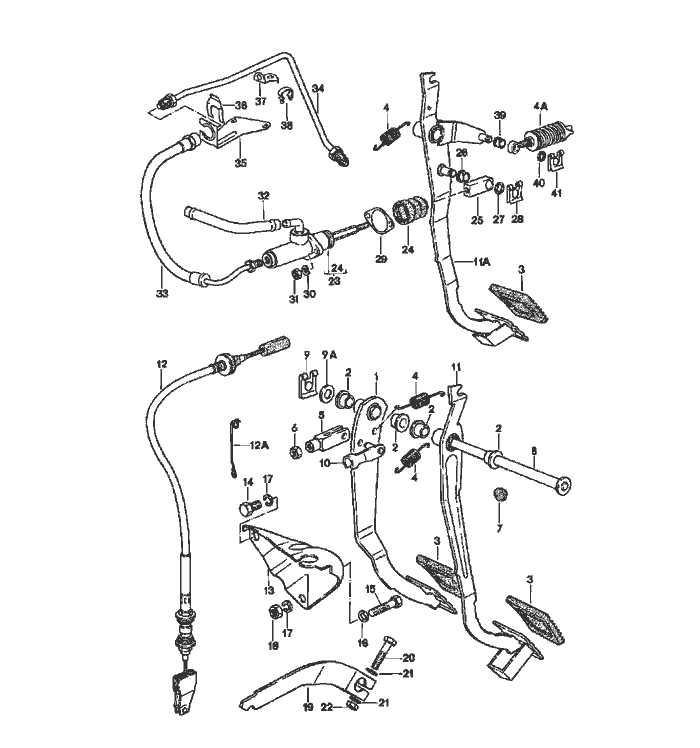

Porsche 924 Bremse Teile

Pos	__Part_Number__	Description	Qty.	Model
		brake
		clutch
		pedals
		left-hand drive
1	477 721 141	brake pedal	1
(1)	477 723 141	brake pedal	1	924,AUT.
2	443 721 153 A	bearing sleeve	4
3	823 721 173	cap	2
(3)	827 723 173	cap	1	924,AUT.
4	321 721 191	return spring	2
4A	477 721 353 A	clutch power spring	1	TURBO,GT
5	803 721 213	clevis	1
6	N 011 010 6	hexagon nut	1
		M 10
7	999 703 183 40	buffer	1
8	843 721 309	bolt	1
		12 X 185 X 180
(8)	N 023 151 2	bolt	1	924,AUT.
		12 X 144 X 139
9	N 012 653 1	lock	1
9A	311 955 255	washer	1
10	N 023 476 1	bolt	1
		8 X 32
11	477 721 315 A	clutch pedal	1	924
11A	477 721 315 D	clutch pedal	1	TURBO,GT
12	477 721 333 B	clutch cable	1	924
12A	477 721 391	retainer spring	1	924
13	477 721 399 A	support	1	924
14	N 034 879 4	hexagon-head bolt	1	924
		M 12 X 22

Pos	__Part_Number__	Description	Qty.	Model
15	N 010 476 3	Schraube	1	924
		M 12 X 75
16	N 011 531 7	washer	1	924
		13
17	N 012 042 4	lock ring	2	924
		B 12
18	N 011 030 4	hexagon nut	1	924
		M 12
19	019 141 719	clutch release lever	1	924
20	N 040 262 2	hexagon-head bolt	1	924
		M 8 X 50
21	N 015 401 4	washer	2	924
		8,4
22	N 011 008 8	hexagon nut	1	924
		M 8
		clutch actuation		TURBO, GT
		hydraulic
23	477 721 171	clutch master cylinder	1
		complete
24	928 423 908 00	bellows	1
25	928 423 517 00	clevis	1
26	999 924 002 40	bush	1
27	900 025 008 09	washer	1
		A 10,5
28	999 166 034 02	sl-lock	1
29	928 423 191 00	gasket	1
30	900 027 015 02	lock ring	2
		B 8
31	900 076 025 02	hexagon nut	3
		M 8
-	999 181 021 50	hose	*
		12,5 X 7,5
32	-	220 MM	1

Pos	__Part_Number__	Description	Qty.
(33)	477 721 189 A	clutch hose	1
34	477 721 185	clutch pipeline	1
35	477 721 191	support	1
		clutch hose
36	928 423 183 01	hose holder	1
37	477 721 195	retaining bracket	1
38	181 971 847	cable clip	1
39	999 924 001 40	bush	1
40	N 011 525 13	washer	1
		A 8,4
41	N 900 470 01	lock washer	1
