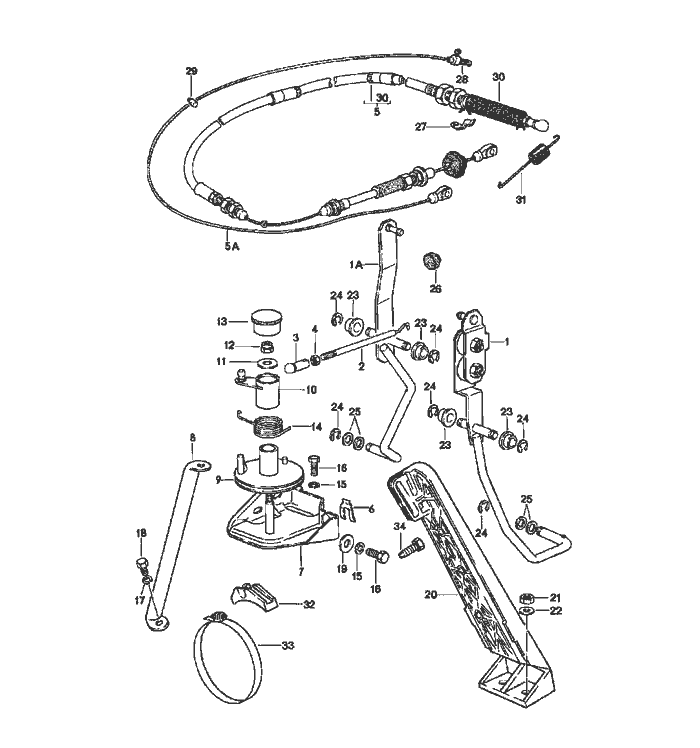

Porsche 924 Accelerator Control Teile

Accelerator Control


Pos__Part_Number__DescriptionRemarkQty.Model
  accelerator control
  accelerator cable
  for
  automatic transmission
1 944 423 033 00accelerator control /LL -81 1
1 944 423 033 00accelerator control /LL 82 1
2 477 723 535throttle linkage   1
3 911 423 147 00ball socket   1
4 N 011 005 14hexagon nut   1
  M 5
5 477 723 575 Aaccelerator cable Left Hand Drive 1
  for
  accelerator control
  and
  control pressure
5A 477 723 602 Ccable /LL 82 1
5A 477 723 602 Ccable /LL -81 1
6 N 012 323 1circlip   1
7 477 723 525support   1
8 477 723 579bracket   1
9 477 723 511deflection roller   1
10 477 723 515accelerator control   1
11 477 723 531washer   1
12 900 910 012 02lock nut   1
  M 6
13 999 659 045 40protection cap   1
14 477 723 523steering knuckle spring   1
15 N 012 226 5spring washer   3
  B 6
16 N 010 215 13hexagon-head bolt   3
  M 6 X 15
17 N 012 228 3spring washer  1
  B 8

Pos__Part_Number__DescriptionRemarkQty.Model
18 N 010 237 6hexagon-head bolt  1
  M 8 X 12
19 900 151 006 09washer  2
  B 6
20 827 723 511 Aaccelerator pedal  1
21 900 076 010 02hexagon nut  2
  M 6
22 803 817 121washer  2
23 477 721 543bearing sleeve  2
24 N 012 436 2lock washer  3
25 900 025 038 40washer  2
26 999 703 183 40buffer  1
27 823 721 569retainer spring  1
28 477 723 601nipple  1
29 477 723 611nipple  1
30 311 713 269 Abellows  1
31 477 723 563 Ctension spring  1
32 477 723 567support  4
33 999 512 350 02hose clamp  4
34 944 423 731 00adjusting Schraube 821
