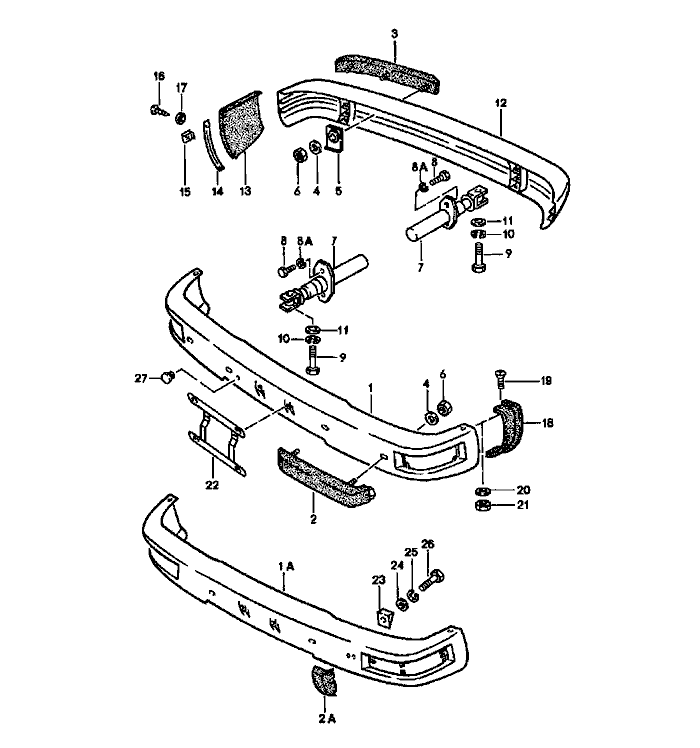

Porsche 924 Bumper Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		bumper			+924,TURBO
		with
		impact absorber
1	477 807 109	bumper	Vorder	1	M 036
(1)	477 807 109 E	bumper	Vorder	1	M 036/288
(1A)	477 807 109 H	bumper	Vorder	1	M 058
		use also:
		999.703.181.40		1
(1A)	477 807 109 C	bumper	Vorder	1	M 058/288
		F >>92CN4 02197			924
		F >>93CN1 00305			TURBO
(1A)	477 807 109 J	bumper	Vorder	1	M 058/288
		F 92CN4 02198>>
		F 93CN1 00306>>
2	477 807 155 A	rubber moulding	Left	1	M 036
(2)	477 807 156 A	rubber moulding	Right	1	M 036
2A	477 807 353	bumper horn	Left	1	M 058
(2A)	477 807 354	bumper horn	Right	1	M 058
(3)	477 807 157	rubber moulding	Left	1
3	477 807 158	rubber moulding	Right	1
4	N 011 612 3	washer		6	M 058
		R 7
4	N 011 612 3	washer		10	M 036
		R 7
5	477 807 197	support	Hinter	6
6	113 101 175	hexagon nut		6	M 58
6	113 101 175	hexagon nut		10	M 36
7	944 505 017 03	impact absorber		4
8	N 010 240 16	hexagon-head bolt		8
		M 8 X 20
8A	900 027 015 02	lock ring		8
		A 8

Pos	__Part_Number__	Description	Remark	Qty.	Model
9	N 010 165 2	hexagon-head bolt		4
		M 12 X 65
10	N 012 012 4	lock ring		4
		B 12
11	N 011 531 7	washer		4
		A 13
12	477 807 301 A	bumper	Hinter	1
(13)	477 807 343	cover	Left	1
13	477 807 344	cover	Right	1
(14)	477 807 345	insert	Left	1
14	477 807 346	insert	Right	1
15	N 015 438 1	speed nut		4
		B 3,6 X 16,5
16	N 013 959 3	tapping Schraube		4
		B 3,5 X 16
17	900 151 028 02	washer		4
18	477 807 347	cap	Left	1
(18)	477 807 348	cap	Right	1
19	N 014 260 1	oval-head Schraube		4
		AM 4 X 14
20	900 151 028 02	washer		4
		B 4,3
21	N 011 004 6	hexagon nut		4
		M 4
22	928 701 050 03	support		1
23	477 807 361	plate	Left	1	M58
(23)	477 807 362	plate	Right	1	M58
24	N 011 652 1	washer		2	M58
		7
25	N 012 006 4	lock ring		2	M58
		B 6

Pos	__Part_Number__	Description	Qty.	Model
26	N 010 339 3	hexagon-head bolt M 6 X 40	2	M58
27	999 703 181 40	stopper towing lug	1 1	M58 M 058
		see group 0/01/00
