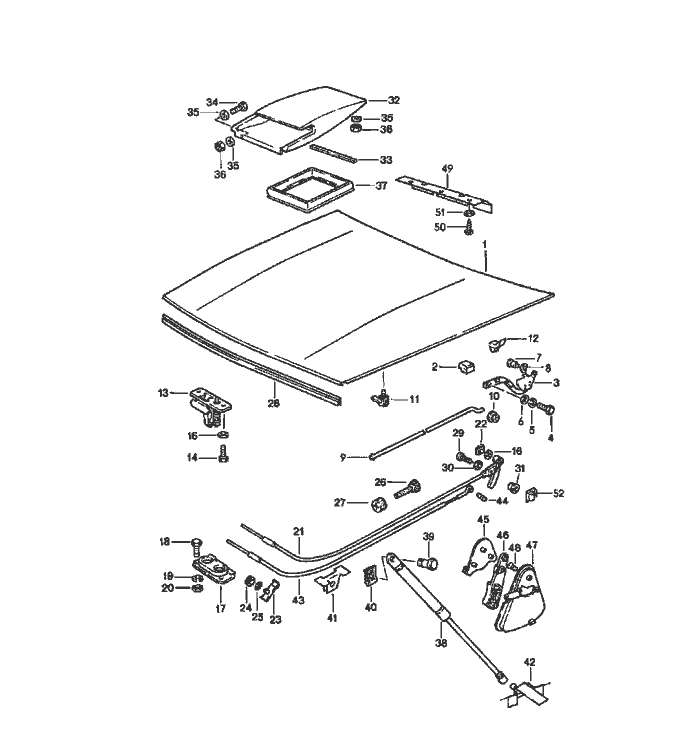

Porsche 924 Lid Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		lid	/V
1	944 511 905 00	lid		1	924
(1)	944 511 905 01	lid		1	TURBO
2	477 823 185	filler piece		2
3	944 511 301 00	hinge	Left	1
(3)	944 511 302 00	hinge	Right	1
4	N 010 240 16	hexagon-head bolt		8
		M 8 X 20
5	900 027 015 02	lock ring		8
		B 8
6	N 011 525 13	washer		8
		A 8,4
7	477 823 307	bearing pin	-84	2
7	944 511 307 00	bearing pin	85	2
8	N 012 230 6	spring washer	-84	2
		B 10
8	944 511 309 00	washer	85	2
9	477 823 363 A	hood stay		1
10	171 823 395	rubber mounting		1
(11)	431 823 397	support		1
12	477 823 493	guide piece		4	924,TURBO
13	477 823 507	lock upper part		1
		lid lock
14	999 072 005 09	hexagon-head bolt		2
		M 6 X 12
16	999 025 049 02	washer	-83	2
17	928 511 027 02	lid lock		1
		lower part
18	900 075 116 02	hexagon-head bolt		4
		M 4 X 8

Pos	__Part_Number__	Description	Remark	Qty.	Model
19	N 012 004 2	lock ring		4
		B 4
20	N 011 004 6	hexagon nut		4
		M 4
21	477 823 531 A	lid lock cable	-83	1
22	N 012 855 1	clamping washer	-83	1
23	477 823 551	clamping piece		1
24	900 076 010 02	hexagon nut		1
		M 6
25	N 042 121 3	shake-proof washer		1
		A 6,4
26	477 823 591	grommet		1
27	477 823 593	stopper		1
28	928 511 141 04	gasket		1
29	N 013 952 1	tapping Schraube	-83	2
		4,8 X 50
30	900 025 003 02	washer	-83	2
		A 5,3
31	477 823 165	bush		2
38	944 511 351 01	gas-pressure spring		2	924
39	999 094 011 09	bolt		2	924
40	N 900 470 01	lock washer		2
41	944 511 373 00	pneumatic spring mount		2	924
42	944 501 371 00	pneumatic spring mount	Left	1	924
(42)	944 501 372 00	pneumatic spring mount	Right	1	924
49	944 511 201 00	tab washer		1	M 533
50	900 143 007 02	tapping Schraube		3	M 533
		BZ 4,2 X 13
51	900 025 002 02	washer		3	M 533
		BZ 4,3 X 9

Pos	__Part_Number__	Description	Remark	Qty.	Model
52	999 591 468 02	prestole cage B 4,8		2
