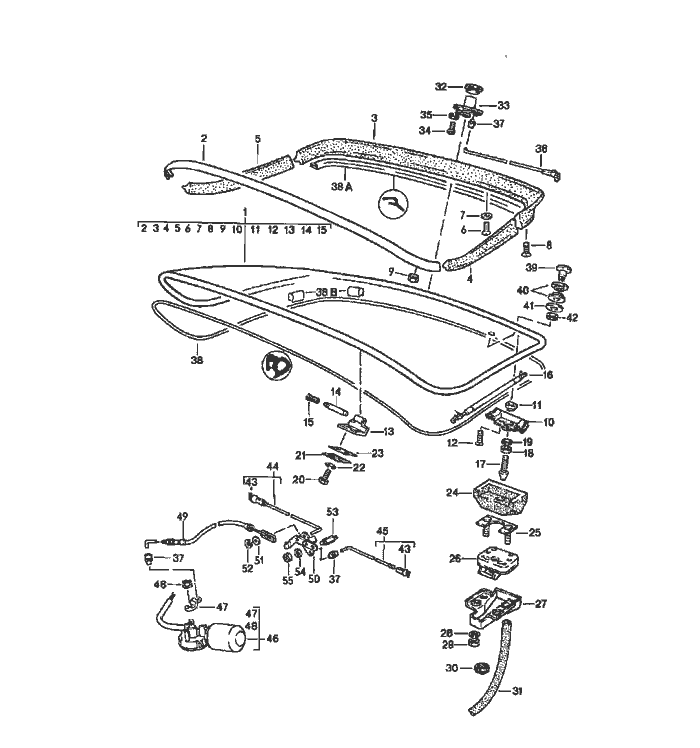

Porsche 924 Hinter Lid With Hinter Spoiler Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		rear lid with rear spoiler
1	477 827 027 K	rear lid		1
2	477 853 313 A	trim frame		1

		rear lid together with wiper motor
		see group 9/04/05

3	477 827 555	rear spoiler centre		1
4	477 827 557	rear spoiler lateral	Left	1
5	477 827 558	rear spoiler	Right	1
6	N 033 183 1	countersunk-head Schraube M 5 X 20		7
7	477 827 453 A	washer		7
8	N 033 185 1	countersunk-head Schraube M 4 X 16		2
9	N 021 255 1	slotted nut M 4		12
10	477 827 033	housing F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331	/L N) CDN)	1	924 (J) 924 (USA)(CD TURBO (J) TURBO (USA)(
10	477 827 033 A	housing F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>>	/L N) CDN)	1	924 (J) 924 (USA)(CD TURBO (J) TURBO (USA)(
(10)	477 827 034	housing F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331	/R N) CDN)	1	924 (J) 924 (USA)(CD TURBO (J) TURBO (USA)(

Pos	__Part_Number__	Description	Remark	Qty.	Model
(10)	477 827 034 A	housing	Right	1
		F 92CN4 02198>>			924 (J)
		F 92CN4 50832>>	N)		924 (USA)(CD
		F 93CN1 00306>>			TURBO (J)
		F 93CN1 50332>>	CDN)		TURBO (USA)(
11	477 827 035	rubber mounting		2
12	999 219 011 07	countersunk-head Schraube		4
13	477 827 305 B	hinge half		2
14	944 512 311 00	hinge pin		2
15	477 827 441	bush		2
(16)	477 827 348 F	gas-pressure spring	Right	1
16	477 827 349 D	gas-pressure spring	Left	1
17	477 827 527	lock pin		2
18	N 011 008 8	hexagon nut		2
		M 8
19	900 027 015 02	lock ring		2
		B 8
20	999 218 045 07	pan-head Schraube		4
		M 8 X 12
21	928 512 417 03	plate		2
23	944 512 413 00	gasket		2
		lid hinge
24	477 827 365 A	gasket	Left	1	924
(24)	477 827 365 D	gasket	/L -84	1	TURBO,GT
(24)	477 827 366 A	gasket	Right	1	924
(24)	477 827 366 D	gasket	/R -84	1	TURBO,GT
25	951 512 447 00	reinforcement plate		2
26	477 827 505 A	rear lid lock	Left	1
(26)	477 827 506 A	rear lid lock	Right	1
27	477 827 541	water drip pan		2

Pos	__Part_Number__	Description	Remark	Qty.
28	N 012 006 4	lock ring		4
		B 6
29	900 076 010 02	hexagon nut		4
		M 6
30	111 971 911 A	rubber sleeve		2
31	477 827 547	hose		2
		400 MM
32	477 827 529 A	sealing ring		1
33	477 898 082	lock cylinder		1
		w/o stipulated lock number
(33)	477 827 573 B	lock cylinder		1
		with stipulated lock number
34	N 014 139 5	oval-head Schraube		2
		M 6 X 12
35	N 012 007 02	lock ring		2
		A 6
36	477 827 583	pull rod	-83	2
37	993 531 563 00	linkage clip		2
38	944 512 043 00	seal for rear lid		1
38A	944 512 463 00	additional gasket		1
38B	999 591 342 02	u-clamp		4
39	477 845 333	Schraube plug		1
40	477 955 439	grommet		2
41	477 845 331	washer		1
42	N 011 118 14	hexagon nut		1
		M 8
