Porsche 924 Door Handle Teile

Door Handle

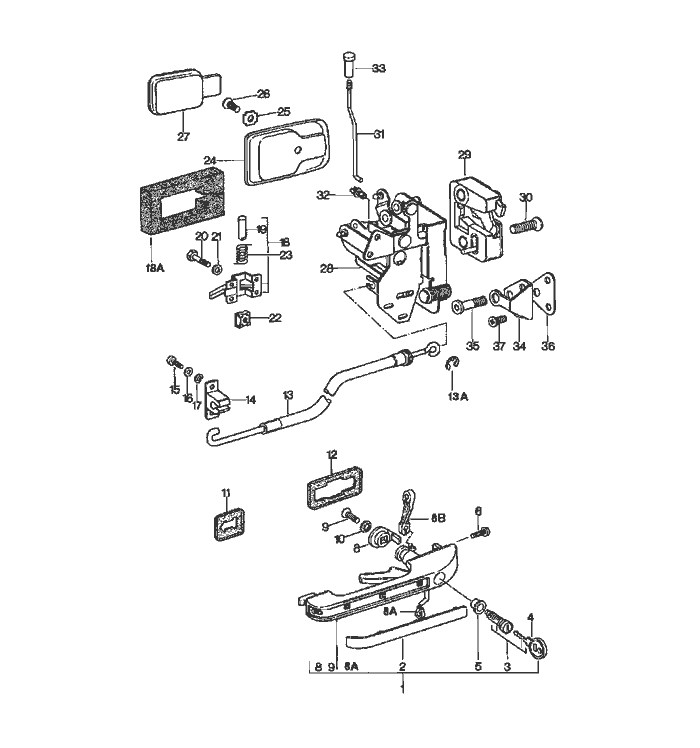

Pos__Part_Number__DescriptionRemarkQty.Model
  door handle
  door lock
  TURBO -USA
  F >>93A01 50362
  see group
  8/04/10
1 477 837 037 Houter door handle Left 1
(1) 477 837 038 Houter door handle Right 1
2 823 837 239cover   2
3 944 538 903 00lock cylinder   2
  w/o stipulated lock number
(3) 944 538 903 01lock cylinder   2
  with stipulated lock number
--grease
  for lock cylinder
  see group
  0/05/00
4 477 837 219blank key   2
(4) 944 538 933 00key   1
  with stipulated lock number
  Information available
5 111 837 227 Bsealing ring   2
6 803 837 951self-lock. fillister Schraube   2
8 477 837 497driver   2
8A 999 168 004 40ball socket   2
8B A 477 837 505 Aconnecting piece /L -82 1
8B 477 837 505 Aconnecting piece Left 1
(8B) 477 837 506 Aconnecting piece Right 1
9 N 033 165 1countersunk-head Schraube   2
  AM 4 X 8
10 N 012 116 1serrated lock washer   2
  V 4,3
11 867 837 209desk pad Vorder 2

Pos__Part_Number__DescriptionRemarkQty.Model
12 171 837 211 Adesk pad Hinter 2
13 477 837 017 Abowden cable   2
13A 900 116 002 02lock washer   2
  3,2
14 477 837 115 Asupport   2
15 N 014 139 7oval-head Schraube   4
  M 6 X 12
16 N 011 524 7washer   4
  A 6,4
17 N 011 524 7washer   4
  B 6
18 171 837 019inner door release Left 1
(18) 171 837 020inner door release Right 1
 041black
 90Vbrown
18A 477 831 304 Aseal   2
19 N 013 666 1rivet   2
  B 4 X 32
20 N 010 210 13hexagon-head bolt   8
  M 6 X 10
21 111 837 941cup spring   8
  6,4 X 12,5
22 477 837 521captive nut   8
  M 6
23 811 837 723spring   2
  inner door release
24 171 837 235rosette   2
 01Cblack
 90Vbrown
25 111 837 291cone washer   2
26 N 014 216 1countersunk-head Schraube   2
  AM 5 X 10

Pos__Part_Number__DescriptionRemarkQty.Model
27 311 837 247cup  2
 043black
 90Vbrown
28 928 537 907 03lock inner part Left Hand Drive \/ Left Side1
(28) 928 537 908 04lock inner part Left Hand Drive \/ Right Side1
29 928 537 153 03door lock outer part Left1
(29) 928 537 154 03door lock outer part Right1
30 928 537 721 02oval-head Schraube M 8 X 35  4
31 477 837 183 Alocking rod  2
32 477 837 187clip  2
33 111 837 187 Bknob  2
 043black
34 928 537 133 02door lock striker  2
35 928 537 131 03lock pin  2
36 928 537 135 04desk pad  2
37 900 269 027 02countersunk-head Schraube M 8 X 16  4
