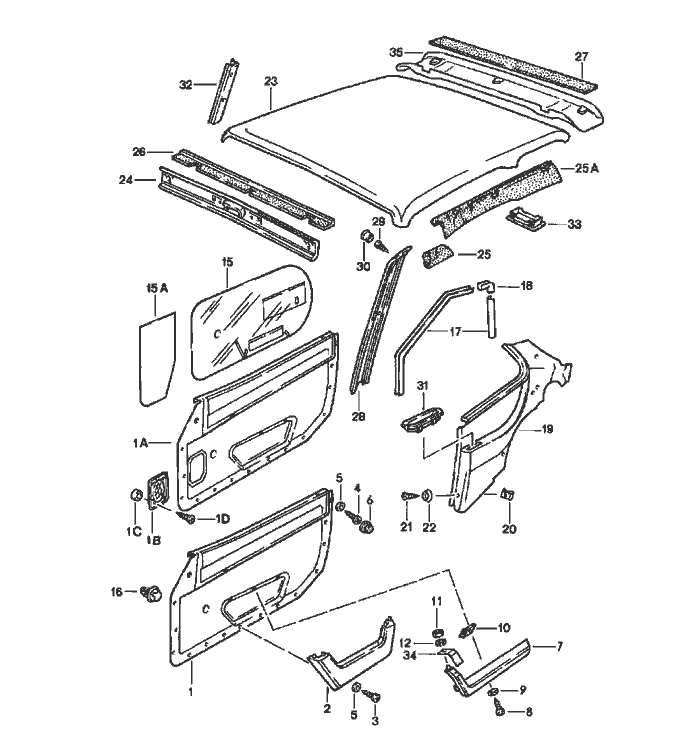

Porsche 924 Linings Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		linings
(1)	477 867 011 D	door trim panel power windows manually adjustable leatherette	/L -80	1	924 (J)
	DF9	black	-80		924
	DG1	brown	-80		924
	DG2	beige/brown	-80		924
1	477 867 012 D	door trim panel power windows manually adjustable leatherette	/R -80	1	924 (J)
	DF9	black	-80		924
	DG1	brown	-80		924
	DG2	beige/brown	-80		924
(1)	477 867 011 D	door trim panel	/L -80	1	924 (J)
1	477 867 012 D	door trim panel	/R -80	1	924 (J)
(1)	477 867 011 G	door trim panel power windows manually adjustable leatherette	/L 81-82	1
	DF9	black
	DG1	brown
	DG2	beige/brown
(1)	477 867 012 G	door trim panel power windows manually adjustable leatherette	/R 81-82	1
	DF9	black
	DG1	brown
	DG2	beige/brown
(1)	477 867 011 G	door trim panel leatherette/ checker board velour	/L 81-82	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
	FE5	black/ grey/black
	FE6	brown/ beige/brown
(1)	477 867 012 G	door trim panel leatherette/ checker board velour	/R 81-82	1
	FE5	black/ grey/black
	FE6	brown/ beige/brown
(1)	477 867 011 G	door trim panel leatherette/ pin stripe velour	/L 81-82	1
	GM5	black/ black-white	81		924 (J)
(1)	477 867 012 G	door trim panel leatherette/ pin stripe velour	/R 81-82	1
	GM5	black/ black-white	81		924 (J)
(1)	477 867 011 E	door trim panel power windows electrically adjustable leatherette	/LL/L-80	1
	DF9	black
	DG1	brown
	DG2	beige/brown
(1)	477 867 012 E	door trim panel power windows electrically adjustable leatherette	/LL/R-80	1
	DF9	black
	DG1	brown
	DG2	beige/brown

Pos	__Part_Number__	Description	Remark	Qty.
(1)	477 867 011 E	door trim panel leatherette/ cloth tartan cloth	/LL/L-80	1
	EN4	black/ red-blue
	EP4	black/ green-blue
	EP5	brown/ brown-beige
(1)	477 867 012 E	door trim panel leatherette/ cloth tartan cloth	/LL/R-80	1
	EN4	black/ red-blue
	EP4	black/ green-blue
	EP5	brown/ brown-beige
(1)	477 867 011 E	door trim panel leatherette/ checker board velour	/LL/L-80	1
	FE5	black/ grey/black
	FE6	brown/ beige/brown
	FC5	black/ black-white
(1)	477 867 012 E	door trim panel leatherette/ checker board velour	/LL/R-80	1
	FE5	black/ grey/black
	FE6	brown/ beige/brown
	FC5	black/ black-white

Pos	__Part_Number__	Description	Remark	Qty.
(1)	477 867 011 E	door trim panel leatherette/ cloth FISCHGRAET	/LL/L-80	1
	EH5	black/ orange
	EH6	brown/ brown-beige
(1)	477 867 012 E	door trim panel leatherette/ cloth FISCHGRAET	/LL/R-80	1
	EH5	black/ orange
	EH6	brown/ brown-beige
(1)	477 867 011 H	door trim panel left power windows electrically adjustable leatherette	/LL81-82	1
	DF9	black
	DG1	brown
	DG2	beige/brown
(1)	477 867 012 H	door trim panel right power windows electrically adjustable leatherette	/LL81-82	1
	DF9	black
	DG1	brown
	DG2	beige/brown
(1)	477 867 011 H	door trim panel left leatherette/ checker board velour	/LL81-82	1
	FE5	black/ grey/black

Pos	__Part_Number__	Description	Remark	Qty.	Model
	FE6	brown/ beige/brown
(1)	477 867 012 H	door trim panel right leatherette/ checker board velour	/LL81-82	1
	FE5	black/ grey/black
	FE6	brown/ beige/brown
(1)	477 867 011 H	door trim panel left	/LL81-82	1
		leatherette/ pin stripe velour
	GM5	black/ black-white	81		924 (J)
(1)	477 867 012 H	door trim panel right leatherette/ pin stripe velour	/LL81-82	1
	GM5	black/ black-white	81		924 (J)
(1)	477 867 011 H	door trim panel left	/LL81-82	1
		leatherette/ stripe design
	HT1	black/ silver-black	82		(J)
(1)	477 867 012 H	door trim panel right leatherette/ stripe design	/LL81-82	1
	HT1	black/ silver-black	82		(J)
(1)	477 867 011 H	door trim panel	/L 81-82	1
	HH2	brown/ beige	81		924

Pos	__Part_Number__	Description	Remark	Qty.	Model
(1)	477 867 012 H	door trim panel leatherette/ linen	/R 81-82	1
	HH2	brown/ beige	81		924
-	999 507 071 00	speed nut		2
(2)	477 867 033 A	package box	Left	1
	43S	black F >>92CN4 05989 F >>92CN4 52277			924 (J) 924
		F >>93CN1 00747 F >>93CN1 50876			TURBO (J) TURBO
	83S	beige F >>92CN4 05989 F >>92CN4 52277			924 (J) 924
		F >>93CN1 00747 F >>93CN1 50876			TURBO (J) TURBO
	87S	brown
		F >>92CN4 05989 F >>92CN4 52277			924 (J) 924
		F >>93CN1 00747 F >>93CN1 50876			TURBO (J) TURBO
	8BR	grey	82		(J)
	3FF	grey-beige
2	477 867 034 A	package box	Right	1
	43S	black
		F >>92CN4 05989 F >>92CN4 52277 F >>93CN1 00747 F >>93CN1 50876			924 (J) 924 TURBO (J) TURBO
	83S	beige F >>92CN4 05989 F >>92CN4 52277			924 (J) 924
		F >>93CN1 00747 F >>93CN1 50876			TURBO (J) TURBO
	87S	brown F >>92CN4 05989 F >>92CN4 52277			924 (J) 924
		F >>93CN1 00747 F >>93CN1 50876			TURBO (J) TURBO

Pos	__Part_Number__	Description	Remark	Qty.	Model
	8BR	grey	82		(J)
	3FF	grey-beige
3	N 013 962 2	tapping Schraube B 3,9 X 16		6
4	311 867 167	tapping Schraube 4,2		4
5	900 151 028 02	washer 4,3		10
6	311 867 169	cap		4
	01C	black
	90V	brown
(7)	477 867 171	armrest	Left	1
	041	black
	89S	brown
7	477 867 172	armrest	Right	1
	041	black
	89S	brown
8	900 143 046 02	tapping Schraube B 4,8 X 16		6
9	N 012 222 4	spring washer B 5		6
10	999 591 722 02	speed nut B 4,8 X 19,8		6
11	900 910 010 09	lock nut M 6		2
12	N 011 524 7	washer 6		2
(15)	477 867 177 D	sealing film	Left	1
15	477 867 178 D	sealing film door trim panel	Right	1
(15A)	477 867 179	sealing film	/L 83	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
15A	477 867 180	sealing film loudspeaker	/R 83	1
16	823 867 299	clip		25
17	477 867 367	piping door frame		4
18	477 867 371	corner piece		2
(19)	477 867 421	side trim panel	Left	1
	05T	black
	21S	brown
19	477 867 422 A	side trim panel F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331	Right	1	924 (J) 924 TURBO (J) TURBO
	05T	black
	21S	brown
(19)	944 555 021 01	side trim panel	Left	1
	05T	black	-82
	21S	brown	-82
(19)	944 555 022 01	side trim panel F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>>	Right	1	924 (J) 924 TURBO (J) TURBO
	05T	black	-82
	21S	brown	-82
-	111 857 785	stopper		2
-	111 857 795	cover disc		2
20	N 015 438 1	speed nut B 3,5 X 16,5		2
21	N 014 087 5	rais. counters. h. tap. s. B 3,5 X 16		4

Pos	__Part_Number__	Description	Remark	Qty.	Model
22	N 011 578 1	cone washer 3,7		4
23	477 867 503	rooflining		1
	05T	black
	21S	brown
(23)	477 867 501 A	rooflining	-83	1	M 650
	05T	black
	21S	brown
-	477 867 543	roof strut		3
24	477 867 511	lining roof frame	Vorder	1
	05T	black	-82
	21S	brown	-82
(24)	477 867 513	lining roof frame	Left	1
	05T	black	-82
	21S	brown	-82
(24)	477 867 514	lining roof frame	Right	1
	05T	black	-82
	21S	brown	-82
25A	944 555 115 00	roof frame padding	Left	1
(25)	A 944 555 116 00	roof frame padding	/R -83	1	(J)
(25A)	944 555 116 00	roof frame padding	Right	1
26	477 867 531	roof frame padding	/V -83	1	M 650
27	477 867 533	roof frame padding	/H -83	1	M 650
28	477 867 553 A	lining windscreen frame part	Left		1
	05T	black	-82

Pos	__Part_Number__	Description	Remark	Qty.
	21S	brown	-82
(28)	477 867 554 A	lining windscreen frame part	Right	1
	05T	black	-82
	21S	brown	-82
29	N 013 962 2	tapping Schraube B 3,9 X 16		6
30	914 552 233 10	filler piece		6
	01C	black
	90V	brown
31	477 867 653	rosette		2
32	477 867 655	lining centre pillar	Left	1
	05T	black
	21S	brown
(32)	477 867 656	lining centre pillar	Right	1
	05T	black
	21S	brown
33	477 867 923 A	cap		2
	01C	black
	89S	brown
(34)	477 867 153	fastening hook	Left	1
34	477 867 154	fastening hook armrest	Right	1
