Porsche 924 Vorder Seat Teile

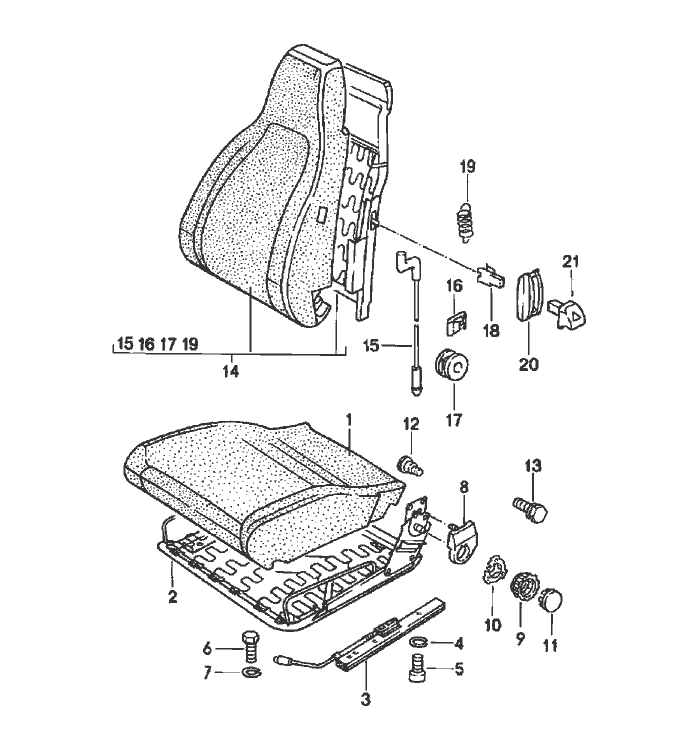

Pos	__Part_Number__	Description	Remark	Qty.	Model
		front seat
		single parts
1	911 521 385 01	foam part	Left	1
		seat cushion
(1)	911 521 386 01	foam part	Right	1
		seat cushion
2	911 521 069 56	seat frame	Left	1
(2)	911 521 070 56	seat frame	Right	1
3	A 928 521 489 02	seat rail		1
		left seat
		outer
		with locking device
(3)	A 928 521 490 02	seat rail		1
		right seat
		outer
		with locking device
(3)	944 521 491 00	seat rail		2
		inner
		see tpi
		GR.8 NR.34
4	N 012 006 4	lock ring		8
		B 6
5	900 067 009 02	pan-head Schraube		8
		M 6 X 15
6	N 010 215 13	hexagon-head bolt		8
		M 6 X 15
7	N 012 006 4	lock ring		8
		B 6
8	911 521 359 02	cover	Left	1
(8)	911 521 360 02	cover	Right	1
9	911 521 381 00	shifting wheel		2
		for backrest adjustment
10	911 521 571 00	tensioning spring		2
11	911 521 383 00	cover		2
12	911 521 371 00	Schraube		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
13	911 521 547 00	hexagon-head bolt		4
14	A 477 881 047	backrest without backrest cover	Left	1
(14)	A 477 881 048	backrest without backrest cover	Right	1
15	911 521 361 00	cable release backrest		2
16	911 521 369 00	terminal for cable		2
17	911 521 343 00	guide bush		2
18	311 881 247	clamp		2
19	311 881 287 A	spring		2
20	311 881 607 A	rosette		2
21	113 881 633 E	knob		2
	01C	black
