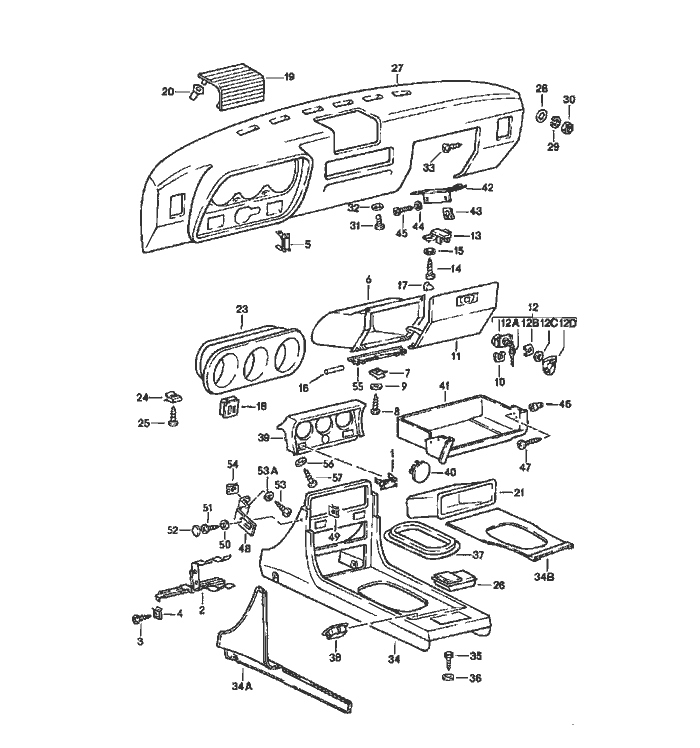

Porsche 924 Dashboard Centre Console Teile

Pos	__Part_Number__	Description	Remark	Qty.
		dashboard centre console
1	133 957 087	cover		1
2	477 857 067 A	support centre console		1
3	N 013 957 5	tapping Schraube BZ 3,5 X 9,5		2
4	N 015 422 2	speed nut B 4,2 X 17		2
6	477 857 095 B	glove compartment		1
7	N 015 422 2	speed nut B 4,2 X 17		2
8	N 013 964 4	tapping Schraube B 4,2 X 16		5
9	N 011 692 3	washer		5
10	133 857 119	clamp		1
	01C	black
11	477 857 123	glove compartment cover	Left Hand Drive	1
	05T	black	-82
	21S	brown
12	477 857 133 C	lock with keys		1
	01C	black
	90V	brown
12A	477 857 135 A	blank key		2
12A	A 477 857 136 A	key with stipulated lock number state lock number F >>92BN4 50381 F >>93BN1 50394		1
12A	477 857 136 A	key with stipulated lock number state lock number		1

Pos	__Part_Number__	Description	Remark	Qty.
12B	N 012 852 1	clamping washer	82	1
12C	N 011 536 1	washer A 2,2	82	1
12D	944 559 097 00	crest	82	1
13	477 857 143	lock bearing		1
	01C	black
14	900 143 070 02	oval-head sheetmetal Schraube B 4,2 X 13		2
15	900 025 002 02	washer A 4,3		2
16	N 013 209 2	straight pin 4 H 8 X 36		2
17	N 020 022 3	stopper A 8 X 1		1
18	477 857 137	cover light switch	/L -82	1
	01C	black	-82
	89S	cadbury brown	-82
18	477 857 137 A	cover light switch	Left	1
	1DB	black
(18)	477 857 138	cover switch rear window heating	Right	1
	01C	black	-82
	89S	cadbury brown	-82
(18)	477 857 138 A	cover switch rear window heating	Right	1
	1DB	black
19	477 857 183	loudspeaker grille		1
	8RK	brown

Pos	__Part_Number__	Description	Remark	Qty.	Model
19	477 857 187	loudspeaker grille		1
	01C	black
	1DB	black
	89S	brown
20	477 857 821	grommet loudspeaker grille		4
21	481 857 233 A	package box		1
23	477 857 283 A	dashboard trim		1
	01C	black
	89S	cadbury brown F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331	82		924 (J) 924 TURBO (J) TURBO
	FP7	black
	FP8	brown F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>>			924 (J) 924 TURBO (J) TURBO
24	999 591 722 02	speed nut B 4,8 X 19,8		2
25	900 143 046 02	tapping Schraube B 4,8 X 16		2
26	944 552 305 00	ashtray		1
	1DB	black
	4RB	brown
27	477 857 881 A	dashboard	Left Hand Drive	1
	05T	black	-82
	21S	brown
28	N 011 612 3	washer R 7		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
29	N 012 036 1	lock ring 6		2
30	900 076 010 02	hexagon nut M 6		2
31	N 014 140 5	oval-head Schraube AM 6 X 15		1
32	N 011 524 7	washer A 6,4		1
33	900 143 007 02	tapping Schraube B 4,2 X 19		4
(34)	477 857 909	centre console F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331		1	924 (J) 924 TURBO (J) TURBO
	01C	black
	89S	cadbury brown
34	477 857 931	centre console F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>>		1	924 (J) 924 TURBO (J) TURBO
	01C	black
	89S	cadbury brown
34A	477 863 741	lining	Left	1
	43S	black F >>92CN4 05989 F >>92CN4 52277 F >>93CN1 00747 F >>93CN1 50876			924 (J) 924 TURBO (J) TURBO
	87S	cadbury brown F >>92CN4 05989 F >>92CN4 52277 F >>93CN1 00747 F >>93CN1 50876			924 (J) 924 TURBO (J) TURBO

Pos	__Part_Number__	Description	Remark	Qty.	Model
	83S	beige F >>92CN4 05989 F >>92CN4 52277 F >>93CN1 00747 F >>93CN1 50876			924 (J) 924 TURBO (J) TURBO
	4BF	grey
	3FF	grey-beige	83
	8BR	grey	82		(J)
35	N 013 891 1	tapping Schraube M 8 X 15		2
36	N 011 533 2	washer B 8,4		2
37	477 857 975	support frame gearshift lever		1
	01C	black
	89S	cadbury brown
38	911 552 469 00	cover		X
39	477 857 977	instrument insert		1
	01C	black
	89S	cadbury brown F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331			924 (J) 924 TURBO (J) TURBO
39	477 857 977 B	instrument insert		1
	01C	black	-82
	89S	cadbury brown F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>>	-82		924 (J) 924 TURBO (J) TURBO
40	841 863 267	cover		X
	041	black
41	477 857 836	shelf	Left Hand Drive	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
57	N 013 953 9	tapping Schraube B 2,9 X 9,5		2
