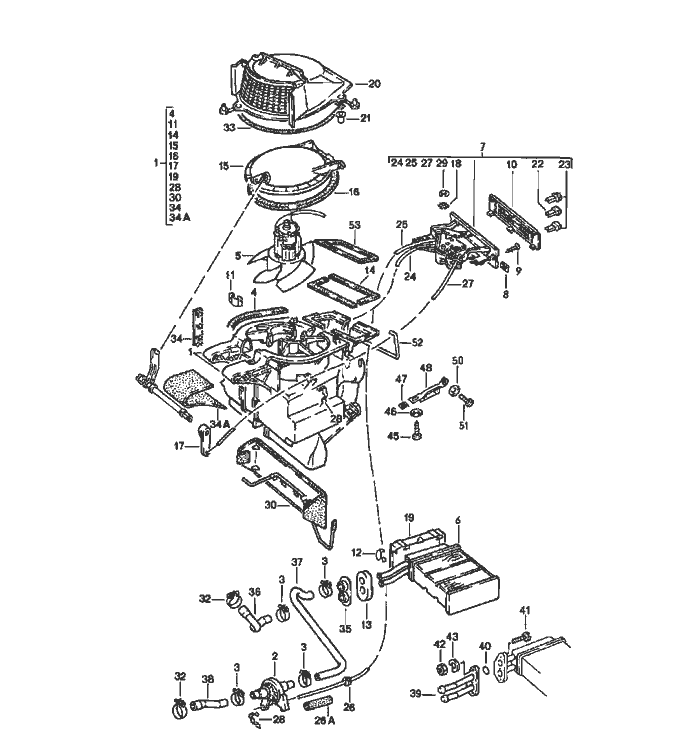

Porsche 924 Heater Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		heater
		heat exchanger
		F >>92CN4 02197			924 (J)
		F >>92CN4 50831	DN)		924 (USA) (C
		F >>93CN1 00305			TURBO (J)
		F >>93CN1 50331	(CDN)		TURBO (USA)
1	477 819 014	flap control box		1	(USA),(CDN)
(1)	477 820 014	flap control box		1	(J)
2	477 819 017	heater valve		1
3	999 512 346 00	hose clamp		5
		LC 16-25
4	321 819 019	gasket		2
5	321 819 021	blower motor		1
6	477 819 030	heat exchanger		1
7	477 819 021 A	control switch		1	(J)
7	477 819 021 B	control switch		1	(USA)(CDN)
-	999 920 006 07	clamp		2
-	477 819 057	support		1
8	477 819 789	speed nut		4
		16 X 12,2
9	N 014 100 1	tapping Schraube		4
		B 4,8 X 25
(10)	477 819 043 C	cover		1
11	321 819 053	clamp		2
12	321 819 059	clamp		7
13	477 819 065	damping piece		1
14	321 819 089	gasket		2
		air duct
15	321 819 107	flap		1
16	321 819 109	gasket		1
		flap

Pos	__Part_Number__	Description	Remark	Qty.	Model
17	321 819 123	lever		1
		flap
-	321 819 117	lever		1
	01C	black
		flap
		upper
18	477 819 139	cup spring		2
19	477 819 347	lid		1
		heat exchanger
20	477 819 245	cover		1
		flap
21	477 819 253	grommet		3
22	477 819 319	knob		1
		centre
23	477 819 319 A	knob		2
24	477 819 279	traction		1
		F >>92BN4 50134
		F >>93BN1 50158
24	477 819 279 A	traction		1
		F 92BN4 50135>>
		F 93BN1 50159>>
25	477 819 341	traction		1
26	477 819 849	grommet		1
26A	477 819 340	hose		1
27	477 819 325	traction		1
		for flap
28	477 819 343	spring clamp		1
29	900 116 003 02	circlip		2
		4
30	321 819 361	control flap		1
32	999 512 272 02	hose clamp		1
		LA 25 X 40

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	AMV 152 109 03	sealing cord		X
		9 MM $
		roller
		4,5 METER
		740 MM		1
34	321 819 645	bearing clip		1
34A	477 819 345	sealing strip		1
35	823 819 699 A	drain bush		1
36	477 819 723	hose		1
37	477 819 725	hose		1
-	N 020 269 1	hose		*	924
38	-	85 MM		1
(38)	931 106 271 01	water hose		1	TURBO
39	477 819 869	connecting flange		1
		for heat exchanger
40	021 101 173	sealing ring		2
		heat exchanger
41	N 010 296 2	hexagon-head bolt		3
		M 5 X 18
42	N 011 005 14	hexagon nut		3
		M 5
43	N 012 222 4	spring washer		3
		A 5
45	N 013 968 7	tapping Schraube		1
		B 4,8 X 16
46	N 012 104 2	serrated lock washer		1
		A 5,3
47	999 591 722 02	speed nut		1
		B 4,8 X 19
48	477 857 195	bracket		1
(48)	477 857 197	bracket		1
50	N 011 524 7	washer		1
		A 6,4

Pos	__Part_Number__	Description	Remark	Qty.	Model
51	N 014 140 5	oval-head Schraube		1
		AM 6 X 15
52	477 857 809	clamp	-81	1
(52)	477 857 809	clamp	82	1
53	477 857 887 A	gasket		1
