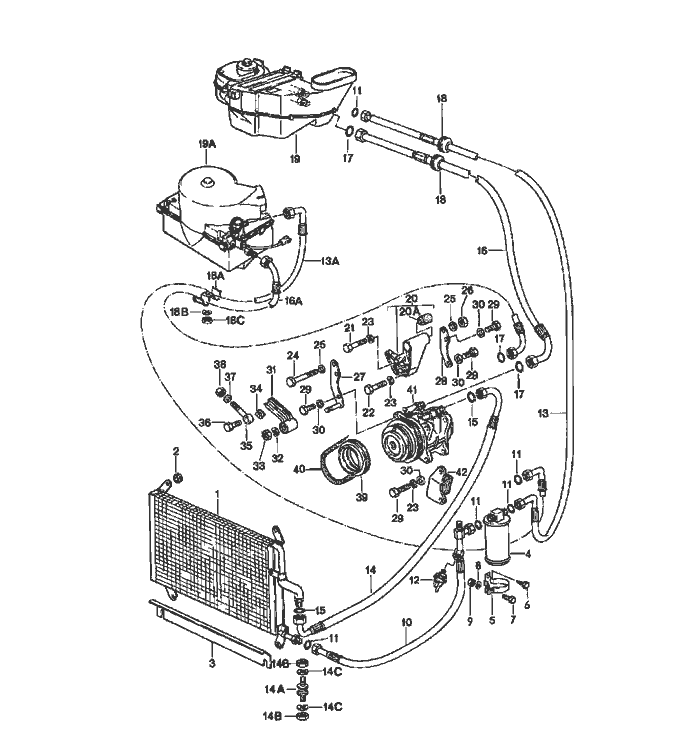

Porsche 924 Luft Conditioner Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		air conditioner				+M 573
1	477 820 751 B	condenser			1
2	477 820 773	grommet			4
3	477 853 717 A	cooling air duct			1
(4)	944 573 943 00	desiccator			1
5	477 820 195	support			1
		fluid tank
		F >>92CN4 00802				924 (J)
		F >>92CN4 50312	N)			924 (USA)(CD
		F >>93CN1 00087				TURBO (J)
		F >>93CN1 50083	CDN)			TURBO (USA)(
(5)	944 573 081 00	support			1
		fluid tank
		F 92CN4 00803>>				924 (J)
		F 92CN4 50313>>	N)			924 (USA)(CD
		F 93CN1 00088>>				TURBO (J)
		F 93CN1 50084>>	CDN)			TURBO (USA)(
6	N 013 884 5	tapping Schraube			2
		B 4,8 X 13
7	N 010 264 4	hexagon-head bolt			1
		M 5 X 20
8	N 012 005 3	lock ring			1
		5
9	N 011 005 14	hexagon nut			1
		M 5
		F >>92CN4 00802				924 (J)
		F >>92CN4 50312	N)			924 (USA)(CD
		F >>93CN1 00087				TURBO (J)
		F >>93CN1 50083	CDN)			TURBO (USA)(
10	477 820 423	refrigerant line			1	924
(10)	477 820 423 A	refrigerant line	Left Hand Drive		1	TURBO
11	477 820 489	o-ring			4
12	959 613 137 00	low pressure switch			1
13	477 820 424	refrigerant line	Left Hand Drive		1
		evaporator
-	999 513 003 40	tie-wrap			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
14	477 820 422 B	refrigerant line			1
14A	810 906 219 A	bonded rubber mounting			1
14B	900 076 010 02	hexagon nut			2
		M 6
14C	N 012 007 2	lock ring			2
		A 6
15	999 707 250 40	o-ring			2
16	477 820 425	refrigerant line	Left Hand Drive		1	924
(16)	477 820 425 A	refrigerant line	Left Hand Drive		1	TURBO
17	478 820 731	o-ring			2
18	901 573 143 00	rubber sleeve			2
19	477 820 002	air conditioner	Left Hand Drive		1
		F >>92CN4 02197				924 (J)
		F >>92CN4 50831	N)			924 (USA)(CD
		F >>93CN1 00305				TURBO (J)
		F >>93CN1 50331	CDN)			TURBO (USA)(
19	477 820 002 A	air conditioner	Left Hand Drive		1
		F 92CN4 02198>>				924 (J)
		F 92CN4 50832>>	N)			924 (USA)(CD
		F 93CN1 00306>>				TURBO (J)
		F 93CN1 50332>>	CDN)			TURBO (USA)(
		see group
		8/13/30
20	047 260 877 E	bracket			1	924
(20)	931 101 014 00	bracket			1	TURBO
20A	047 260 905 C	rubber mounting			2
21	900 074 065 02	hexagon-head bolt			1
		M 10 X 70
22	900 074 063 02	hexagon-head bolt			2
		M 10 X 55
23	N 012 230 6	spring washer			5
		B 10
24	N 010 494 4	hexagon-head bolt			1
		M 10 X 125

Pos	__Part_Number__	Description	Remark	Qty.	Model
25	900 025 008 09	washer			2
		A 10,5
26	N 011 010 6	hexagon nut			1
		M 10
27	047 260 883 B	support	Vorder		1
		compressor
28	047 260 859 C	support	Hinter		1
29	N 040 125 1	hexagon-head bolt			6
		M 10 X 30
30	900 025 008 09	washer			6
		A 10,5
31	047 260 903 B	clamp			1
32	N 012 230 6	spring washer			1
		B 10
33	N 011 010 6	hexagon nut			1
		M 10
34	047 260 947 A	washer			1
35	N 900 798 01	eye Schraube			1
36	900 075 043 02	hexagon-head bolt			1
		M 10 X 30
37	N 011 525 13	washer			1
38	311 101 463	hexagon nut			1
		M 8
39	046 105 255 F	v-belt pulley			1	924
(39)	477 105 255	v-belt pulley			1	TURBO
40	047 260 849 A	v-belt			1
41	047 260 803	compressor			1
		see group
		8/13/40
42	047 260 823 B	vibration damper			1
