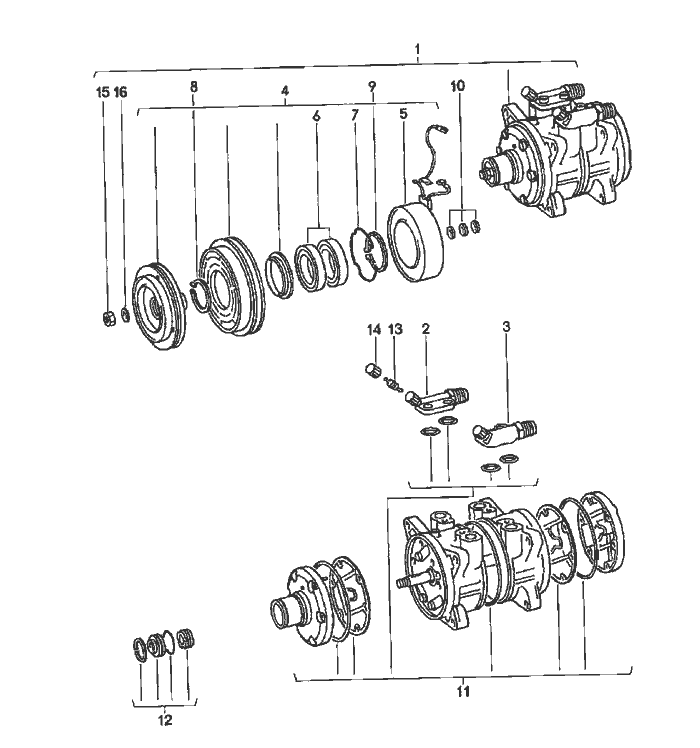

Porsche 924 Compressor Teile

Pos	__Part_Number__	Description	Qty.	Model
		compressor		+M 573
1	047 260 803	compressor	1
2	477 298 839	pressure valve	1
3	477 298 837	suction valve	1
4	477 298 823	clutch	1
5	477 298 825	solenoid coil	1
6	477 298 831	set of bearings	1
7	477 298 827	retaining spring	1
8	477 298 841	circlip	1
9	477 298 843	circlip	1
10	477 298 829	spacer	X
		0,1 MM
(10)	477 298 829 A	spacer	X
		0,2 MM
(10)	477 298 829 B	spacer	X
		0,5 MM
(10)	477 298 829 C	spacer	X
		0,8 MM
(10)	477 298 829 B	spacer	X
		1,0 MM
11	477 298 833	gasket set	1
12	477 298 835	gasket set	1
13	928 573 908 03	valve insert	2
14	928 573 909 02	cap	2
15	N 011 008 8	hexagon nut	1
		M 8
16	900 027 015 02	lock ring	1
		B 8
