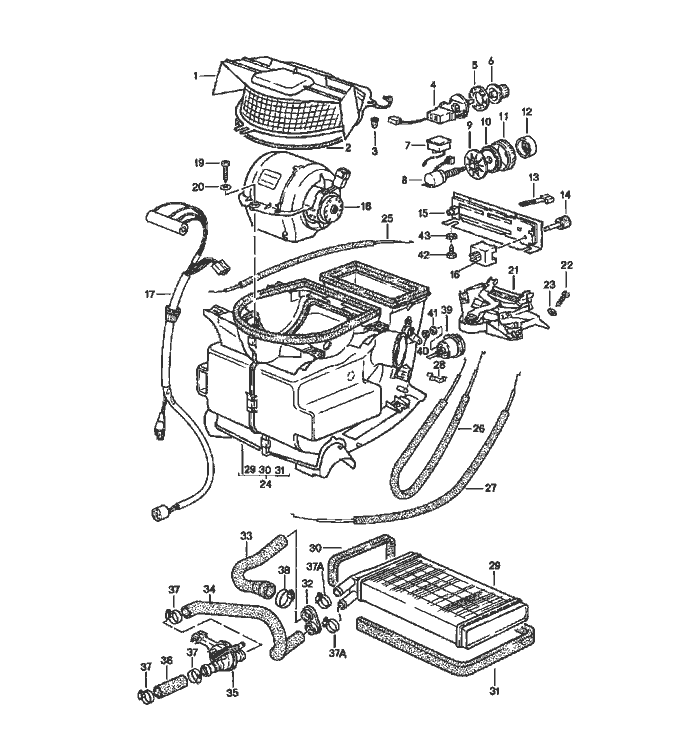

Porsche 924 Heater Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		heater
		heat exchanger
		F 92CN4 02198>>			924 (J)
		F 92CN4 50832>>	DN)		924 (USA),(C
		F 93CN1 00306>>			TURBO (J)
		F 93CN1 50332>>	(CDN)		TURBO (USA),
1	944 572 145 00	cover		1	924
1	944 572 145 00	cover	/LL	1	TURBO
-	AMV 152 109 03	sealing cord		X
		9 MM $
		roller
		4,5 METER
		740 MM		1
3	477 819 253	grommet		3
7	477 959 531	booster		1	M 573
8	477 959 530	air-conditioning switch		1	M 573
9	477 959 527	fastening washer		1	M 573
10	477 959 526	spacer		1	M 573
11	477 959 528	adjusting wheel		1	M 573
12	477 959 529	knob		1	M 573
13	944 572 350 00	knob		3
14	944 572 349 00	knob		1
15	477 857 115	cover		1
16	321 959 511 A	blower switch		1
17	477 971 281	resistor		1
18	321 820 015 B	blower		1
19	900 143 046 02	tapping Schraube		1
		B 4,8 X 16
20	N 011 692 3	washer		1
		B 5,1
21	321 819 045 C	control switch		1

Pos	__Part_Number__	Description	Qty.	Model
22	900 143 007 02	tapping Schraube	2
		B 4,2 X 13
23	900 025 002 02	washer	2
		A 4,3
24	944 572 023 00	flap control box	1
(24)	944 573 023 00	flap control box	1	M 573
25	944 572 649 00	bowden cable	1
26	944 572 648 00	bowden cable	1
27	944 572 647 00	bowden cable	1
-	477 819 343	spring clamp	X
29	171 819 031 D	heat exchanger	1
30	321 819 069 B	rubber seal	1
31	A 191 819 069	gasket	1
31	191 819 069	gasket	1
32	823 819 699 A	drain bush	1
33	477 819 723 A	hose	1
34	477 819 725 A	hose	1
35	477 819 081	valve	1
-	N 020 269 1	hose	*
		16X3,5
36	-	65 MM	1
37	999 512 346 00	hose clamp	X
		LC 16-25
37A	999 512 346 00	hose clamp	2
		SGT 16-25
38	999 512 272 02	hose clamp	X
		LA 25-40
39	944 573 053 00	vacuum unit		M 573
40	999 507 243 02	kronen-fix	3	M 573
41	928 574 465 02	rubber washer	3	M 573
