Porsche 924 Luft Conditioner Teile

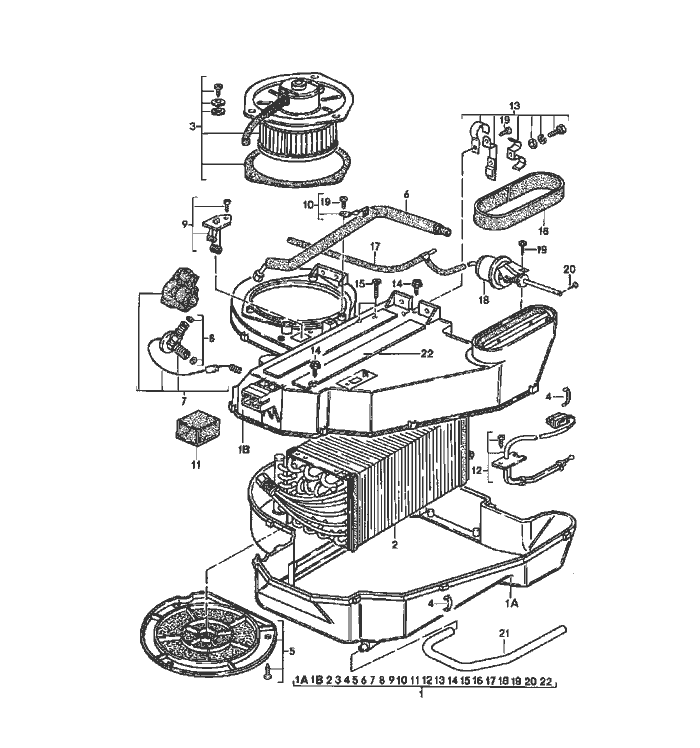

Pos	__Part_Number__	Description	Remark	Qty.	Model
		air conditioner			+M573
		left-hand drive
		F 92CN4 02198>>			924 (J)
		F 92CN4 50832>>	N)		924 (USA)(CD
		F 93CN1 00306>>			TURBO (J)
		F 93CN1 50332>>	CDN)		TURBO (USA)(
1	477 820 002 A	air conditioner		1
1A	477 820 421 A	housing		1
		lower part
1B	477 820 420 A	housing		1
		upper part
2	477 820 903	evaporator		1
3	477 820 905	blower		1
4	477 820 449	clamp		11
5	477 820 907	air cleaner		1
6	477 820 459	pressure line		1
7	477 820 909	expansion valve		1
8	477 820 911	set of o-rings		1
9	477 820 915	resistor		1
10	477 820 917	retaining bow		1
11	477 820 447 A	rubber boot		1
12	477 820 901	temperature sensor		1
13	477 820 919	pipe clamp		1
14	477 820 437	tapping Schraube		2
15	477 820 435 A	tapping Schraube		2
16	477 820 507 A	insulator		1
17	477 820 557	vacuum line		1
18	477 820 545	vacuum unit		1
19	477 820 435 D	tapping Schraube		2
20	477 820 555	pan-head Schraube		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	477 820 523	water drain hose		1
22	477 820 447	gasket		2
