Porsche 924 Reperatur Kits Teile

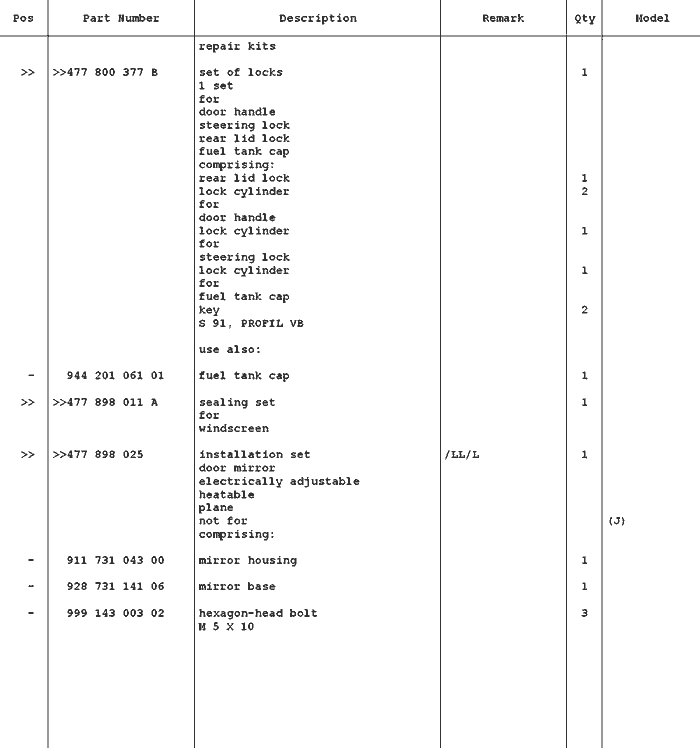

Pos	__Part_Number__	Description	Remark	Qty.	Model
		repair kits
>>	477 800 377 B	set of locks		1
		1 set
		for
		door handle
		steering lock rear lid lock
		fuel tank cap comprising: rear lid lock		1
		lock cylinder for		2
		door handle
		lock cylinder for		1
		steering lock lock cylinder for		1
		fuel tank cap key S 91, PROFIL VB		2
		use also:
-	944 201 061 01	fuel tank cap		1
>>	477 898 011 A	sealing set for		1
		windscreen
>>	477 898 025	installation set door mirror	Left Hand Drive \/ Left Side	1
		electrically adjustable heatable
		plane not for comprising:			(J)
-	911 731 043 00	mirror housing		1
-	928 731 141 06	mirror base		1
-	999 143 003 02	hexagon-head bolt M 5 X 10		3
-	911 731 027 02	covering frame with		1
		transmission
-	911 731 035 08	mirror glass plane		1

Pos	__Part_Number__	Description	Qty.
-	999 703 128 40	grommet	3
		for
		mirror glass
-	477 831 139 C	reinforcement	1
-	928 531 235 03	threaded piece	1
-	N 013 295 1	tensioning sleeve	1
-	944 731 505 00	desk pad	1
-	911 731 257 02	guide tube	1
-	911 731 345 02	centring washer	1
		lower
-	911 731 347 00	centring washer	1
		upper
-	911 731 029 01	compression spring	1
-	900 186 042 02	pan-head Schraube	1
		M 5 X 40
-	477 867 181	mounting piece	1
-	N 014 090 5	tapping Schraube	2
		3,9 X 13
-	999 507 071 00	speed nut	2
-	911 613 115 00	switch	1
-	928 555 463 02	threaded bush	1
-	928 613 462 00	knob	1
-	477 971 111	wiring harness	1
		door mirror
		driver's door
-	477 971 115 A	wiring harness	1
		door mirror
		dashboard
-	477 971 910	bellows	1
-	803 971 979	plug socket	1

Pos	__Part_Number__	Description	Remark	Model
-	911 613 115 00	switch		1
-	928 555 463 02	threaded bush		1
-	928 613 462 00	knob		1
-	477 971 113	wiring harness		1
		door mirror
		passenger's door
-	477 971 115	wiring harness		1
		door mirror
		dashboard
-	477 971 910	bellows		1
-	477 955 703	rocker switch		1
-	803 971 979	plug socket		1
>>	477 898 033	air conditioner	Left Hand Drive	1
		1 set
		for subsequent installation
		F >>92CN4 02197			924 (J)
		F >>92CN4 50831	N)		924 (USA)(CD
		F >>93CN1 00305			TURBO (J)
		F >>93CN1 50331	CDN)		TURBO (USA)(
		use also:
-	047 260 877 E	bracket		1	924
-	931 101 014 00	bracket		1	TURBO,GT
-	477 820 423	hose		1	924
-	477 820 423 A	hose		1	TURBO,GT
-	477 820 425	hose		1	924
-	477 820 425 A	hose		1	TURBO,GT
-	477 863 855 B	insulation		1
		firewall
		F >>92BN4 50152			924
		F >>93BN1 50187			TURBO
-	477 863 855 F	insulation		1
		firewall
		F 92BN4 50153>>			924
		F 93BN1 50188>>			TURBO

Pos	__Part_Number__	Description	Remark	Model
-	477 863 703 L	floor mat		1	924
	43S	black
	83S	beige
	87S	brown
-	477 863 703 M	floor mat		1	TURBO,GT
	43S	black
	83S	beige
	87S	brown
-	477 819 151 A	centre nozzle		1
	01C	black
	89S	brown
-	477 820 412	knee protection trim		1
	05T	black
	21S	brown
-	937 501 241 01	air baffle plate		1	GT
>>	944 501 941 00	repair kit blind rivet comprising: blind rivet blind rivet blind rivet assembly sleeve		1 10 5 5 1
>>	477 853 995	set of moldings moulding comprising:		1
-	477 853 981	side guard 285 MM	Vorder Left	1
-	477 853 982	side guard 285 MM	Vorder Right	1
-	477 853 983	side guard 395 MM	Vorder Left	1
-	477 853 984	side guard 395 MM	Vorder Right	1
