Porsche 924 Motor Elektriks 2 Teile

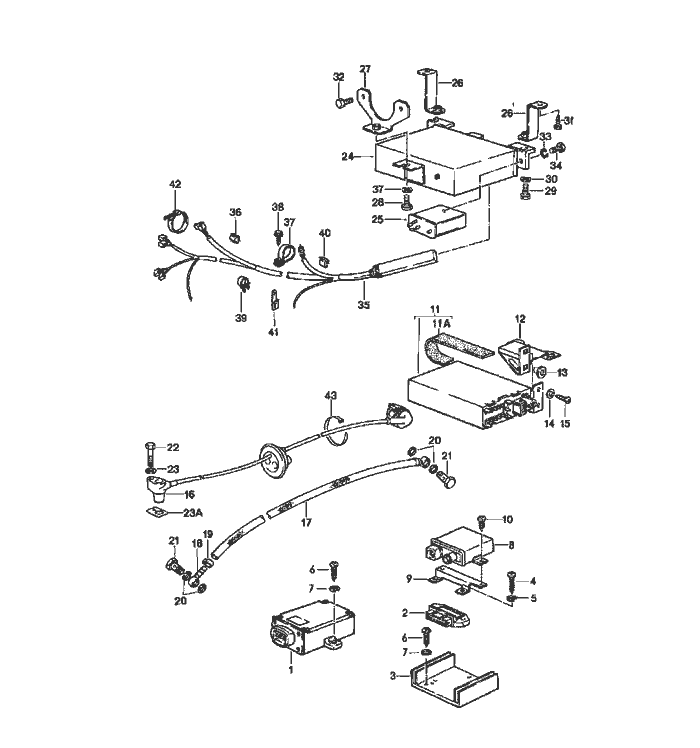

Pos	__Part_Number__	Description	Remark	Qty.	Model
		engine electrics 2
1	046 905 351	switch unit	-80	1	924
(1)	477 905 351 B	switch unit	-80	1	TURBO
2	191 905 351 A	ignition switch unit	81	1
3	211 905 357	heat dissipator	81	1
4	N 014 125 1	oval-head Schraube		2
		M 4 X 18
5	N 012 224 3	spring washer		2
		B 4
6	900 143 046 02	tapping Schraube		3
		BZ 4,8 X 16
7	N 012 225 2	spring washer		3
		B 5
8	477 906 083	control unit	81	1	924,M 157
					(USA)(CDN)
9	531 905 359	retaining bracket	81	1	924,M 157
		mount			(USA)(CDN)
		control unit
		retaining bracket
10	N 013 970 5	tapping Schraube		2
		B 4,8 X 9,5
11	931 602 073 X	ignition control unit	81	1	TURBO
11A	931 602 171 00	plastic foam strip	81	1	TURBO,GT
12	477 857 069 A	support	81	1	TURBO,GT
13	999 507 040 40	expander nut		2
14	N 012 222 4	spring washer		2
		A 5
15	N 013 964 4	tapping Schraube		2
		B 4,2 X 16
16	931 606 021 00	pulse sender	81	1	TURBO,GT
-	999 181 715 40	vacuum hose		*
		4 X 10
17	-	700 MM	81	1	TURBO,GT

Pos	__Part_Number__	Description	Remark	Qty.	Model
18	999 230 113 02	nipple	81	2	TURBO,GT
19	N 900 060 01	hose clamp	81	2	TURBO,GT
		10,5
20	N 013 830 7	sealing ring	81	4	TURBO,GT
		A 8 X 12
21	N 021 055 2	banjo bolt	81	2	TURBO,GT
22	900 075 017 02	hexagon-head bolt		1
		M 6 X 25
23	N 011 524 7	washer		1
		A 6,4
23A	931 606 213 00	shim		X	TURBO,GT
24	931 617 101 00	electrical control unit	-80	1
24	931 617 101 00	electrical control unit	81	1	924(J)
(24)	911 617 103 00	electrical control unit	81	1
25	477 906 207	relay	-80	1	(USA)(CDN)
		for
		o2 sensor closed-loop ctrl
25	477 906 207	relay	-80	1	TURBO(J)
		for
		o2 sensor closed-loop ctrl
(25)	477 906 209	control unit	81	1	(USA)(CDN)
(25)	477 906 209	control unit	81	1	TURBO(J)
26	477 906 611	support		2
27	477 906 613	support		1
28	N 010 210 13	hexagon-head bolt		1
		M 6 X 10
29	900 075 014 02	hexagon-head bolt		2
		M 6 X 18
30	N 012 226 5	spring washer		3
		B 6
31	N 013 884 5	tapping Schraube		2
		B 4,8 X 13

Pos	__Part_Number__	Description	Remark	Qty.	Model
32	N 010 215 13	hexagon-head bolt		2
		M 6 X 15
33	N 012 222 4	spring washer		1
		B 5
34	N 010 205 6	hexagon-head bolt		1
		M 5 X 10
35	477 971 087 B	wiring harness	-80	1	TURBO
		o2 sensor closed-loop ctrl
(35)	477 971 087 F	wiring harness	81	1	TURBO
		o2 sensor closed-loop ctrl
(35)	477 971 087 A	wiring harness	-80	1	924
		o2 sensor closed-loop ctrl
(35)	477 971 087 D	wiring harness	81	1	924
		o2 sensor closed-loop ctrl
(35)	477 971 087 C	wiring harness	-80	1	924 (J)
		o2 sensor closed-loop ctrl
(35)	477 971 087 E	wiring harness	81	1	924 (J)
		o2 sensor closed-loop ctrl
36	477 971 877	cable clamp		1	924
37	N 020 601 1	pipe clamp		1	924
38	N 090 172 1	combination Schraube		1	924
		B 6,3 X 19
39	113 142 261 A	clip		1	924
(39)	999 651 168 40	cable holder		1
40	999 651 152 02	cable clamp		1	924
41	477 971 846	cable holder		1	924
42	N 020 911 1	tie-wrap		1	TURBO
		6,5 X 165
43	N 020 904 4	tie-wrap		1
