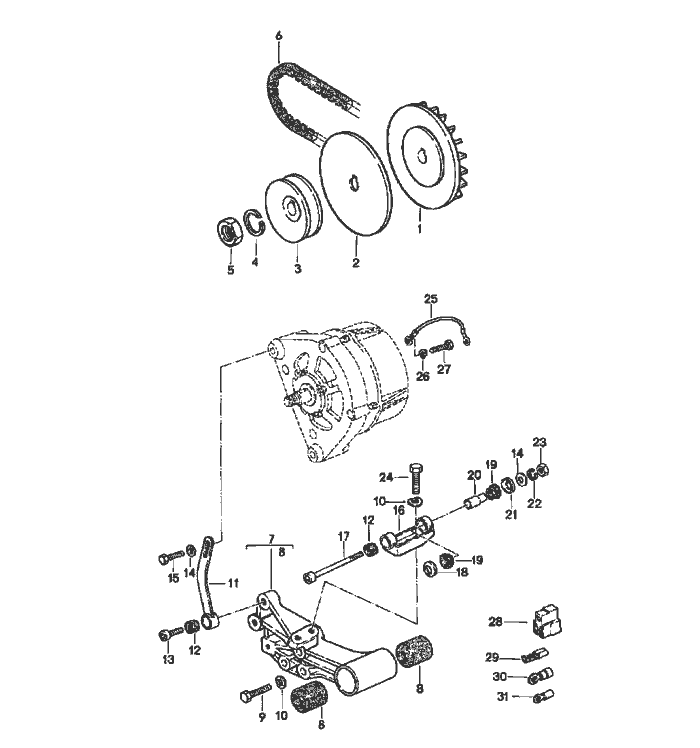

Porsche 924 Mounting Teile Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		mounting parts			TURBO,GT
		generator
1	063 903 171	fan		1
2	047 903 129	damping washer		1
3	035 903 119 C	pulley		1
		$ 61
4	N 012 016 1	lock ring		1
		A 14
5	900 078 005 01	hexagon nut		1
		M 14 X 1,5
(6)	999 192 154 50	v-belt	-80	1
6	999 192 177 50	v-belt	81	1
7	931 101 014 00	bracket		1
8	047 260 905 C	rubber mounting		2
9	900 074 065 02	hexagon-head bolt		1
		M 10 X 70
(9)	900 074 063 02	hexagon-head bolt		2
		M 10 X 55
10	900 028 032 02	spring washer		5
		B 10
11	931 603 115 00	clamp		1
12	931 603 117 00	rubber mounting		2
13	900 119 004 02	pan-head Schraube		1
		M 8 X 30
14	928 111 181 00	washer		2
15	900 075 083 02	hexagon-head bolt		1
		M 8 X 25
16	931 603 113 00	retaining bar		1
17	N 044 774 1	pan-head Schraube		1
		M 8 X 140
18	931 603 129 00	concave washer		1
19	931 603 119 01	rubber mounting		2

Pos	__Part_Number__	Description	Qty.
20	931 603 125 00	sleeve	1
21	931 603 129 01	concave washer	1
22	900 142 002 01	lock ring	1
23	900 076 025 02	hexagon nut M 8	1
24	900 075 111 08	hexagon-head bolt M 10 X 30	2
25	059 971 233 C	ground strap	1
26	N 012 226 5	spring washer B 6	1
27	N 010 210 13	hexagon-head bolt M 6 X 10	1
28	821 971 970	terminal sleeve housing	1
29	111 971 959	flat receptacle 6,3 X 3	X
30	111 971 947 B	cable shoe A 5 X 6	X
31	111 971 949 B	cable shoe A 5 X 2,5	X
