Porsche 924 Windscreen Wiper System Teile

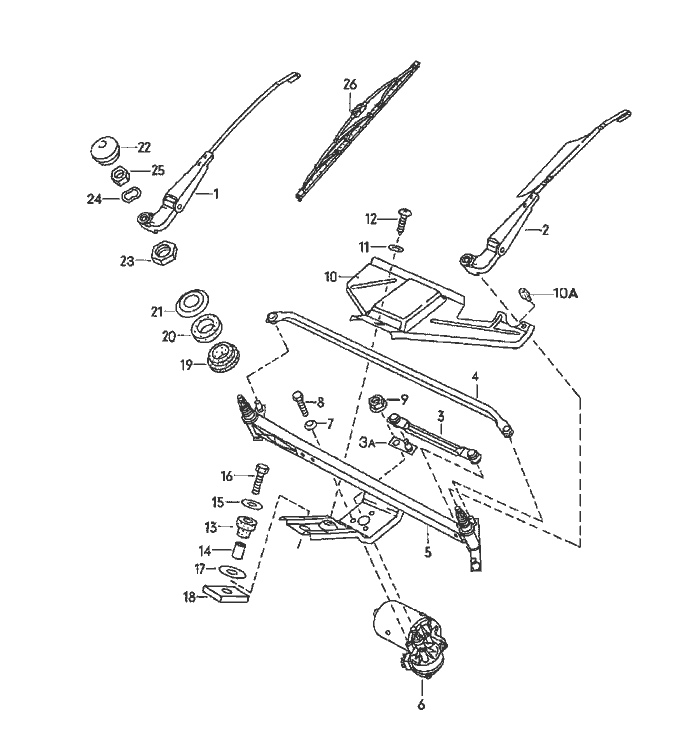

Windscreen Wiper System


Pos__Part_Number__DescriptionRemarkQty.Model
  windscreen wiper system
1 477 955 028wiper arm Left Hand Drive 1
  passenger's side
(1) 477 955 028wiper arm   1 (USA)(CDN)
  driver's side
(2) 477 955 027wiper arm   1 (J)
  with spoiler
  driver's side
3 477 955 035 Bconnecting rod   1
  short
3A 477 955 039 Acrank   1
4 477 955 036 Bconnecting rod   1
  long
5 477 955 041 Bframe   1 924/TURBO
6 477 955 113 Bwindscreen wiper motor   1
7 N 012 105 3serrated lock washer   3
  A 6,4
8 999 072 005 09hexagon-head bolt   3
  M 6 X 12
9 999 084 045 02lock nut   1
  M 6
10 477 955 123cover Left Hand Drive 1
10A 803 827 589 Abuffer   1
11 900 151 028 02washer   1
  B 4,3
12 N 013 957 5tapping Schraube   1
  BZ 3,5 X 9,5
13 477 955 127rubber bush   1
14 477 955 128spacer sleeve   1
15 900 151 029 02washer   1
  B 6,4
16 N 010 217 4hexagon-head bolt   1
  M 6 X 20

Pos__Part_Number__DescriptionRemarkQty.Model
17 281 711 135washer 12,2 X 28 X 2  1
18 477 955 129desk pad  1
19 901 628 924 00rubber bush  2
20 901 628 923 01rubber bush  2
21 911 628 963 00flange washer  2
22 477 955 205cap  2
23 481 955 243 Ahexagon nut M 16 X 1  2
24 803 955 437washer  2
25 N 011 008 8hexagon nut M 8  2
26 477 955 425 Bwindscreen wiper blade 80 2
(26) 478 955 425wiper blade 812
