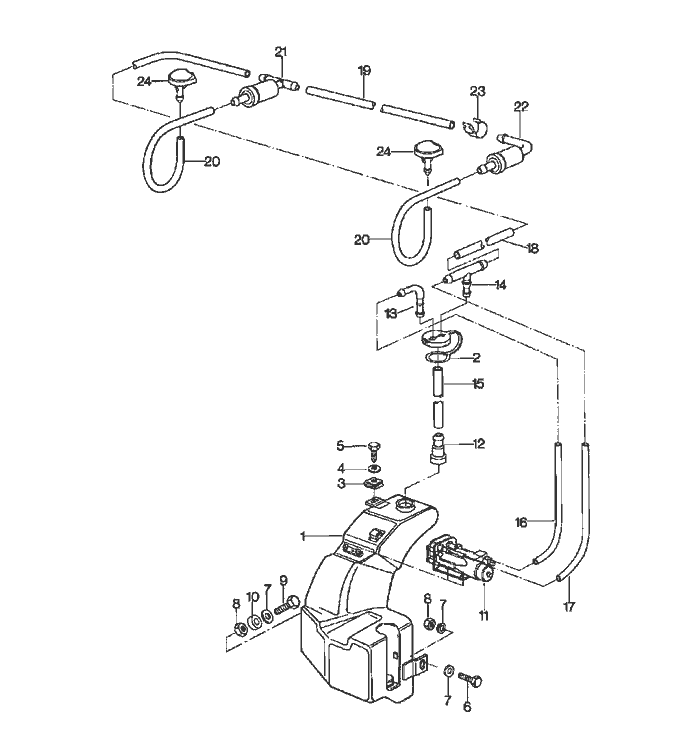

Porsche 924 Windscreen Washer System Teile

Pos	__Part_Number__	Description	Remark	Qty.
		windscreen washer system
1	477 955 451 D	water reservoir		1
2	477 955 455	lid		1
3	477 955 461	speed nut		1
		6,3 X 22
4	900 151 029 02	washer		1
		6,4
5	N 013 891 1	tapping Schraube		1
		B 6,3 X 19
6	N 010 218 6	hexagon-head bolt		1
		M 6 X 25
7	N 011 612 3	washer		4
		R 7
8	900 076 010 02	hexagon nut		2
		M 6
9	N 010 220 3	hexagon-head bolt		1
		M 6 X 30
10	052 109 135	spacer sleeve		1
11	823 955 651	pump		1
12	911 628 749 00	t-piece		1
13	477 955 456	connection piece		1
14	477 955 459	t-socket		1
-	N 020 301 1	hose		*
		4 X 1
15	-	500 MM		2
16	-	260 MM		1
17	-	280 MM		1
18	-	1640 MM	-84	1
19	-	390 MM	-84	1
20	-	160 MM	-84	2

Pos	__Part_Number__	Description	Remark	Qty.	Model
-	999 181 722 40	hose 4,6 X 1,8			X
(18)	-	1680 MM 500 MM 250 MM 330 MM	/R /L	85858585	1 1 1 1
-	N 100 020 01	clamp		85	8
21	914 628 433 00	valve			1
22	477 955 481	valve			1
23	477 971 939	cable terminal		-84	4
(23)	477 955 981	cable terminal		85	1
(23)	944 628 181 00	retaining clip			6
24	914 628 203 11	nozzle		-84	2
(24)	944 628 911 00	nozzle heatable		-84	2
