Porsche 924 Installation Set Teile

Installation Set

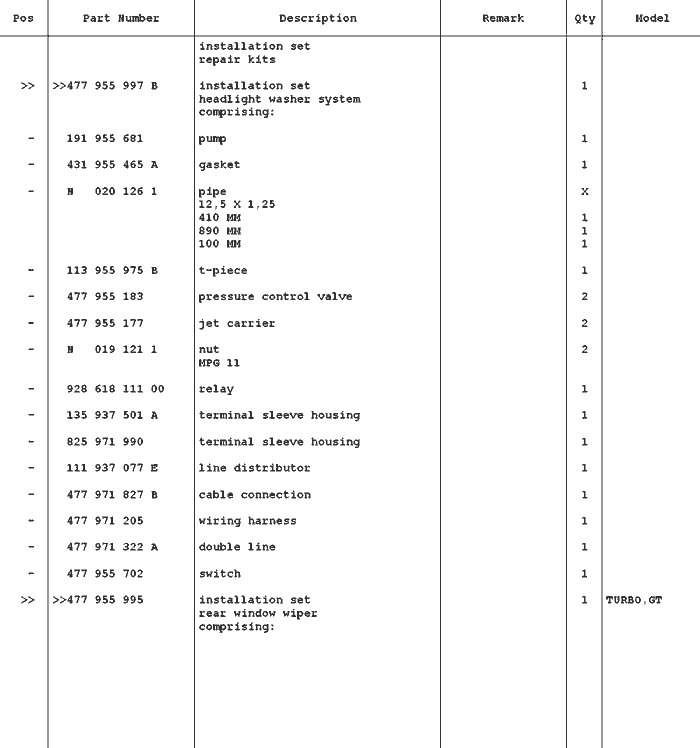

Pos__Part_Number__DescriptionRemarkQty.Model
  installation set
  repair kits
>> 477 955 997 Binstallation set  1
  headlight washer system
  comprising:
-191 955 681pump  1
-431 955 465 Agasket  1
-N 020 126 1pipe  X
  12,5 X 1,25
  410 MM  1
  890 MM  1
  100 MM  1
-113 955 975 Bt-piece  1
-477 955 183pressure control valve  2
-477 955 177jet carrier  2
-N 019 121 1nut  2
  MPG 11
-928 618 111 00relay  1
-135 937 501 Aterminal sleeve housing  1
-825 971 990terminal sleeve housing  1
-111 937 077 Eline distributor  1
-477 971 827 Bcable connection  1
-477 971 205wiring harness  1
-477 971 322 Adouble line  1
-477 955 702switch  1
>> 477 955 995installation set  1 TURBO,GT
  rear window wiper
  comprising:
-477 955 713 Awiper motor  1
-477 955 715 Bmounting plate  1
-N 012 226 5spring washer  3
  B 6

Pos__Part_Number__DescriptionRemarkQty.Model
-900 076 010 02hexagon nut  3
  M 6
-477 955 737cap  1
-477 955 439grommet  2
-477 955 437washer  1
-311 955 243 Ahexagon nut  1
  M 12 X 1
-211 955 275 Acap  1
-477 955 409 Awiper arm  1
-999 084 045 02lock nut  1
-928 628 218 01wiper blade  1
-477 971 345wiring harness  1
  engine
  rear window wiper
-477 971 346wiring harness  1
  rocker switch
  rear window wiper
-477 955 701rocker switch  1
-111 941 189drain bush  1
-999 652 106 02flat receptacle  3
  6,3 X 1
-N 018 007 4insulating hose  1
  100 MM
>> 477 941 903 Ainstallation set  1
  fog headlamp
  white
  comprising:
-477 941 703 Bfog headlamp  2
-900 631 126 90halogen bulb  2
  YC 12 V -55 W
-N 011 010 6hexagon nut  2
  M 10
-900 027 016 02lock ring  2
  B 10

Pos__Part_Number__DescriptionRemarkQty.Model
-900 025 008 02washer A 10,5  2
-131 867 549clamp  2
-477 941 535switch  1
-141 957 397 Abulb socket  1
-900 631 132 90bulb W 12 V -1,2 W  1
-477 963 137relay  1
-477 971 490 Awiring harness  1
-477 971 491 Awiring harness  1
-477 971 827 Bcable connection use also:  1
-477 971 350single line  1 (USA)
-911 631 964 00light-diffusing lens FARBLOS  2
-911 631 956 00gasket for light-diffusing lens  2
-911 631 959 28ring for fog headlamp  2
